join-hidden steel metal roof machine Joint-hidden type big span Steel Roof panel construct
Inquire NowDescription
The Join-Hidden Steel Metal Roof Machine is an advanced roll forming equipment designed specifically for the production of large-span steel roof panels. This machine is ideal for constructing join-hidden type roofs, ensuring durability and efficiency in metal panel production. It features a fully automatic operation system, which includes a manual decoiler, main roll forming machine, post-cutting mechanism, hydraulic system, and a PLC control unit, providing seamless workflow and high precision in panel formation.
With a production speed ranging from 8 to 12 meters per minute, this machine is capable of handling color steel plates, making it suitable for various construction projects. The robust design includes a roller stand with 17 rows and a powerful hydraulic pump, ensuring longevity and reliability during operation.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Production Speed | 8-12 m/min |
| Roller Stand | 17 Rows |
| Voltage | 380V/50Hz/3 Phases |
| Main Power | 3 kW |
| Hydraulic Pump Power | 3 kW |
| Side Panel Thickness | 14 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12 with quenched treatment (60-62℃) |
| Control System | PLC control (Mitsubishi/Delta/Others) |
| Main Frame Material | 350H Steel |
Additional Information
For optimal performance, regular maintenance is recommended. Ensure that the hydraulic system is checked periodically, and the control system is updated to maintain efficiency. This machine has been in operation since 1998, showcasing its reliability and advanced technology.

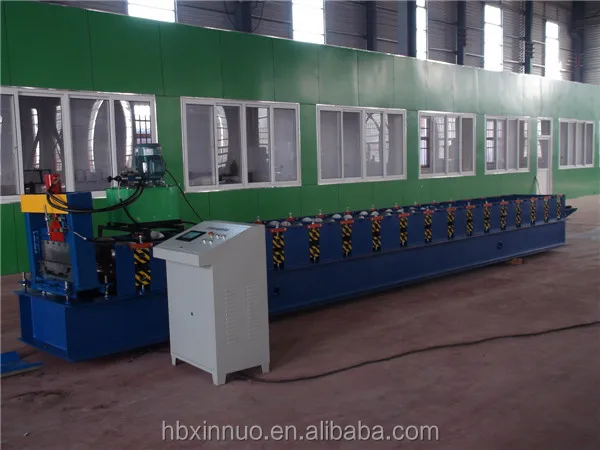

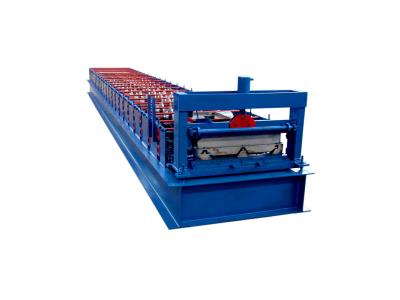

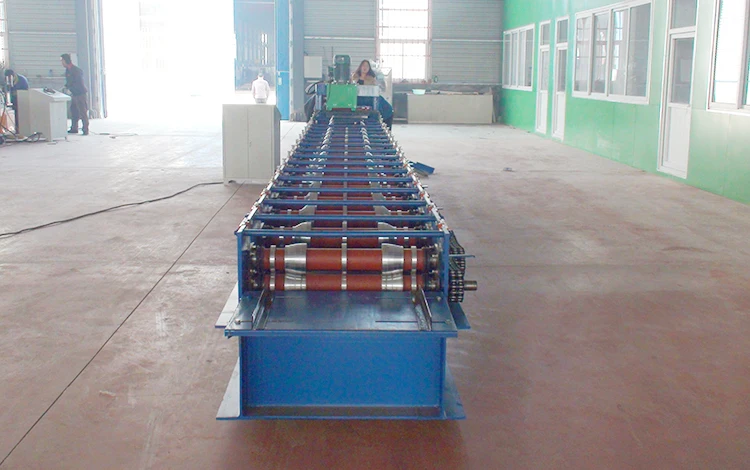

Product Pictures
