Description

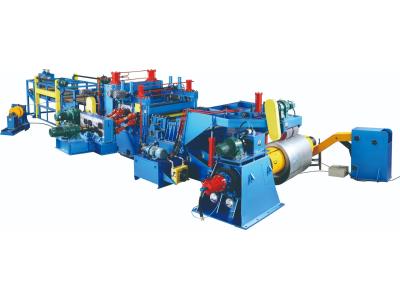

The JZ Slitting Machine is an advanced piece of equipment designed for the uncoiling, slitting, and recoiling of steel sheets to meet specific client requirements. This versatile machine features a robust configuration including an uncoiler, leveling system, shearing system, slitting system, scrap recoiling system, damping structure, and unloading system, all engineered to deliver high precision and efficiency. With the capability to customize designs and specifications, the JZ Slitting Machine is tailored to fit various production needs and enhance operational productivity.
Specifications
| Item | Parameters | ||||
|---|---|---|---|---|---|
| Model | JZ-3×1600 | JZ-6×1600 | JZ-8×1600 | JZ-12×2200 | JZ-16×2200 |
| Thickness (mm) | 0.3-3.0 | 1.0-6.0 | 2.0-8.0 | 2.0-12.0 | 3.0-16.0 |
| Coil Weight (T) | 35 | 35 | 35 | 35 | 40 |
| Width (mm) | 800-1600 | 800-1600 | 800-1600 | 800-2200 | 1000-2200 |
| Finished Product Min. Width (mm) | 35 | 65 | 75 | 75 | 75 |
| Line Speed (m/min) | 0-120 | 0-60 | 0-40 | 0-30 | 0-20 |
| Power (KW) | 200 | 220 | 160 | 130 | 150 |
Additional Information
- Customizable specifications available based on client requirements.
- Designed for high precision slitting and recoiling processes.
