K Span Roll Forming Machine (BH600-300)
Inquire NowDescription

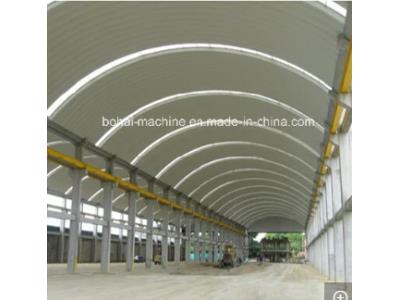

The K Span Roll Forming Machine (BH600-300) is designed for efficiency and precision in the manufacturing of arch sheets. Engineered with a solid construction, the machine features rollers and shafts made from 45# steel plated with hard chromium, ensuring durability and longevity. Its arch shaping leaf has a thickness of 10mm, with production processes meticulously controlled by advanced computer technology.
Equipped with electronic and mechanical measurement instruments, the K Span machine guarantees accurate length measurements of finished sheets. The intuitive design includes a helping hand wheel and counter, simplifying the adjustment process for bending arch sheets. Users will appreciate the lightweight hoisting tool, weighing only 2KG, which facilitates quick installation and removal.
With a solid reputation for quality, safety, and customer service, this machine is backed by a professional engineering team ready to provide overseas technical guidance and timely support.
Specifications
| Specification | Details |
|---|---|
| Size | 8900mm × 2230mm × 2200mm |
| Total Weight | About 10000KG |
| Controlling System | PLC & Manual |
| Cutting Material | Cr12moV |
| Total Power | 15.2 KW |
| Main Motor Power | 5.5KW |
| Bending Power | 3.0KW + 1.5KW |
| Cutting Power | 3.0KW |
| Sewing Power | 1.1KW + 1.1KW |
| Feeding Width | 600mm |
| Effective Width | 300mm |
| Depth of the Groove | 100mm |
| Sheet Operating Factor | 50% |
| Largest Span | ≤35m |
| Ship Container | 40’GP x 1 |
Additional Information
- After-sales support includes timely follow-up and engineering advice.
- No need to purchase machine accessories separately, reducing costs.
- The factory meets safety export standards for the coupling pole.
