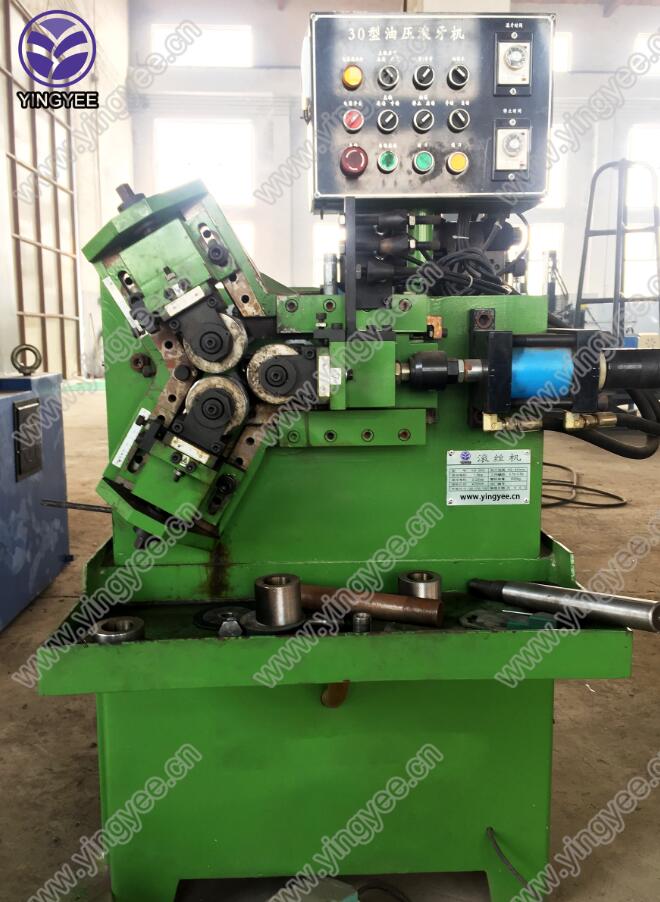

KB-30A thread screw rolling machine
Inquire NowDescription
The KB-30A Thread Screw Rolling Machine is specifically designed for tube parts, ensuring precision and efficiency in various industrial applications. With its equal triangular support and rolling teeth, it guarantees true roundness of the workpiece, maintaining both concentricity and verticality. The machine’s fixed rolling feature is enhanced by dual control and an inverter system, providing stable feeding and simple operation. Additionally, the transmission gear undergoes heat treatment grinding, resulting in low noise and exceptional durability. This versatile machine is suitable for a multitude of industries, including connectors, bicycles, automotive parts, and oil pipe fittings.
Specifications
| Feature | Specification | Additional Details |
|---|---|---|
| Outer Diameter | ∮9-40mm | 90-55mm |
| Pitch Range | 0.5P – 2.5P | Amount of rolled: 4-25 |
| Length of the Roll System | Length of infinite | Roller shaft angle: ±3° |
| Wheel Revolutions | 350-600 rpm | Roller shaft horsepower: 2HP (1.5KW) |
| Roller Diameter | ∮78mm (∮90mm) | Hydraulic horsepower: 2HP (1.5KW) |
| Roller Aperture | ∮35 | Weight: 600 KGS |
| Thickness of the Roller | 20,40mm | Dimensions: 1300*1100*1500 mm |
Additional Information
- Designed for precision rolling of tube parts.
- Low noise operation due to heat-treated gears.
- Ideal for various applications across multiple industries.
