keel roll forming machine

Inquire Now
Product Description

The Drywall Omega Furring Profile Light Steel Roll Forming Machine is designed for efficient and precise processing of various materials including color steel plates, galvanized sheets, and aluminum coils. This advanced machine features a user-friendly PLC colored touch screen control system, allowing for seamless operation and customization.

Specifications

Feature Details
Suitable to process Color steel plate, galvanized sheet, aluminum coils, etc.
Control System PLC Colored Touch Screen
Roller Station 10 rows or custom
Thickness of Feeding Material 0.3 – 1.5 mm
Productivity 35-50 m/min
Rollers’ Material 45# Plating Cr
Diameter of Shaft 42 mm
Weight About 2.5 T
Size 5000 * 800 * 1600 mm
Voltage 380V 50Hz 3 phases
Cutter Standard GCr12
Main Frame 18 mm steel welding
Motor Power 5.5 + 4 kw

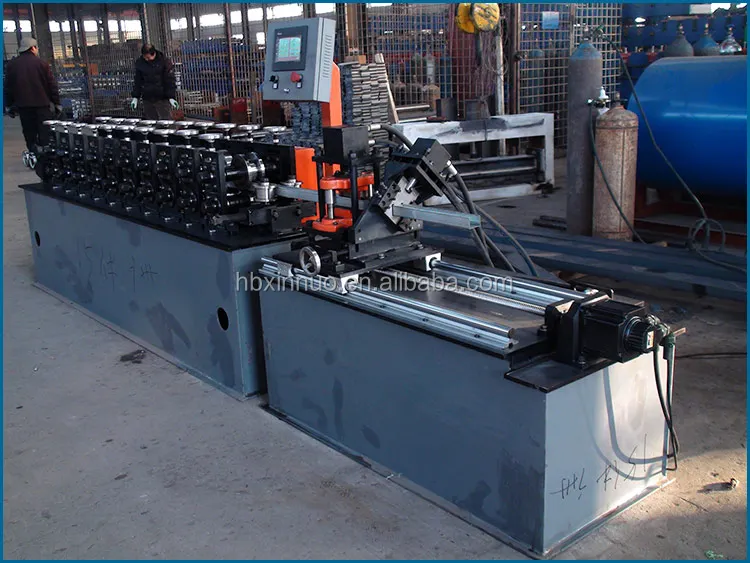

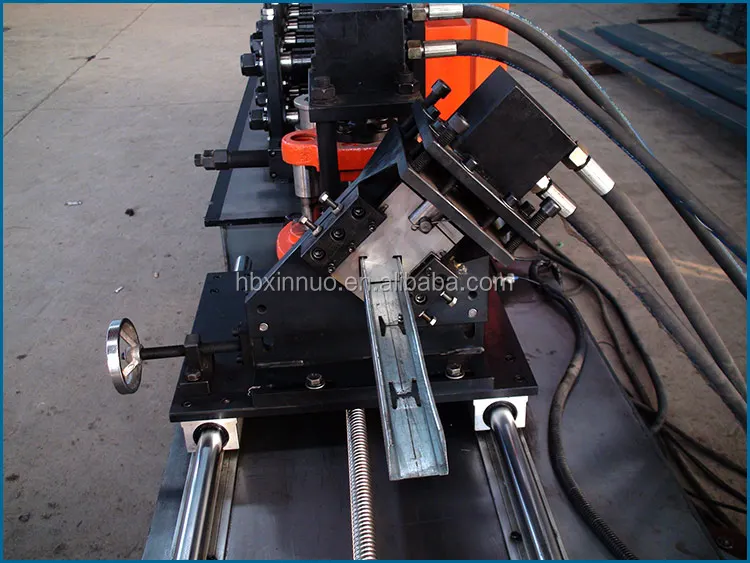

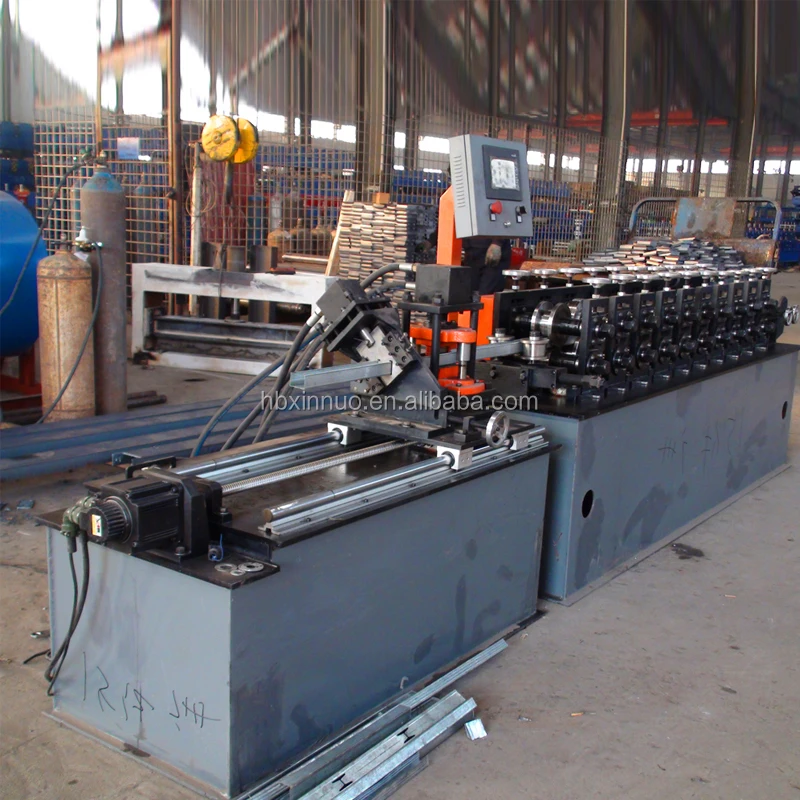

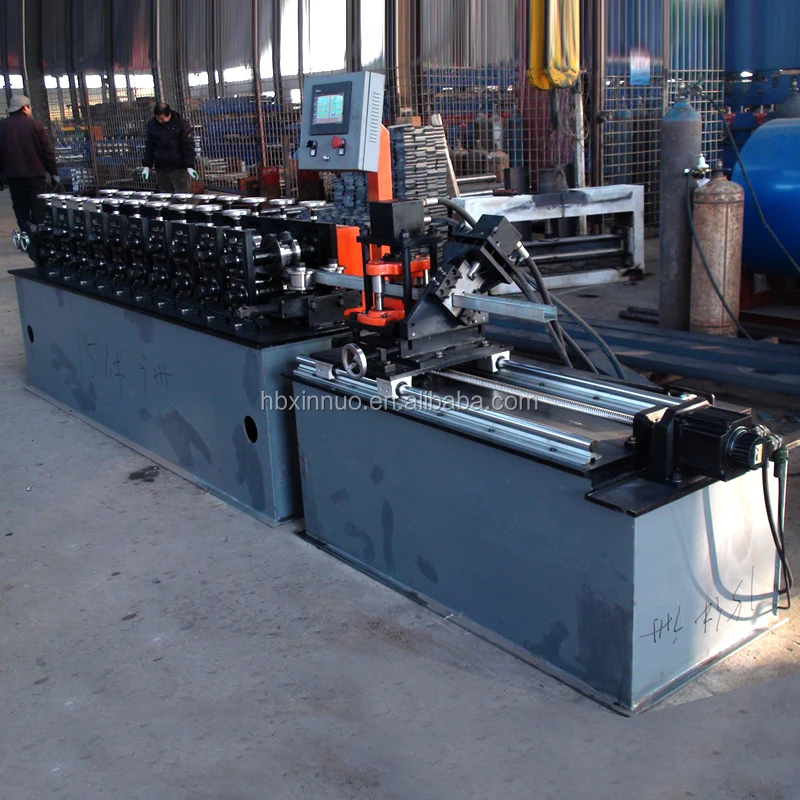

Product Pictures
