keel roll forming machine
Inquire Now#### **Description**
The drywall omega furring profile light steel roll forming machine is an essential tool for manufacturing high-quality steel profiles used in various construction applications. Designed for efficiency and reliability, this machine processes materials such as color steel plates, galvanized sheets, and aluminum coils with precision. Equipped with a PLC colored touch screen control system, it ensures easy operation and monitoring. The roller station can accommodate up to 10 rows or be customized, making it versatile for different production needs. With a productivity range of 35-50 meters per minute, this machine is ideal for high-volume production.
#### **Specifications**
| Attribute | Details |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils |
| Control System | PLC Colored Touch Screen |
| Roller Station | 10 rows or custom |
| Thickness of Feeding Material | 0.3-1.5 mm |
| Productivity | 35-50 m/min |
| Rollers’ Material | 45# Plating Cr |
| Diameter of Shaft | 42 mm |
| Weight | About 2.5 T |
| Size | 5000 x 800 x 1600 mm |
| Voltage | 380V 50Hz 3 phases |
| Cutter Standard | GCr12 |
| Main Frame | 18 mm steel welding |
| Motor Power | 5.5 + 4 kw |
#### **Additional Information**
– **Packaging Details:** The main machine is nude, while the computer control box is packed with a wooden frame.

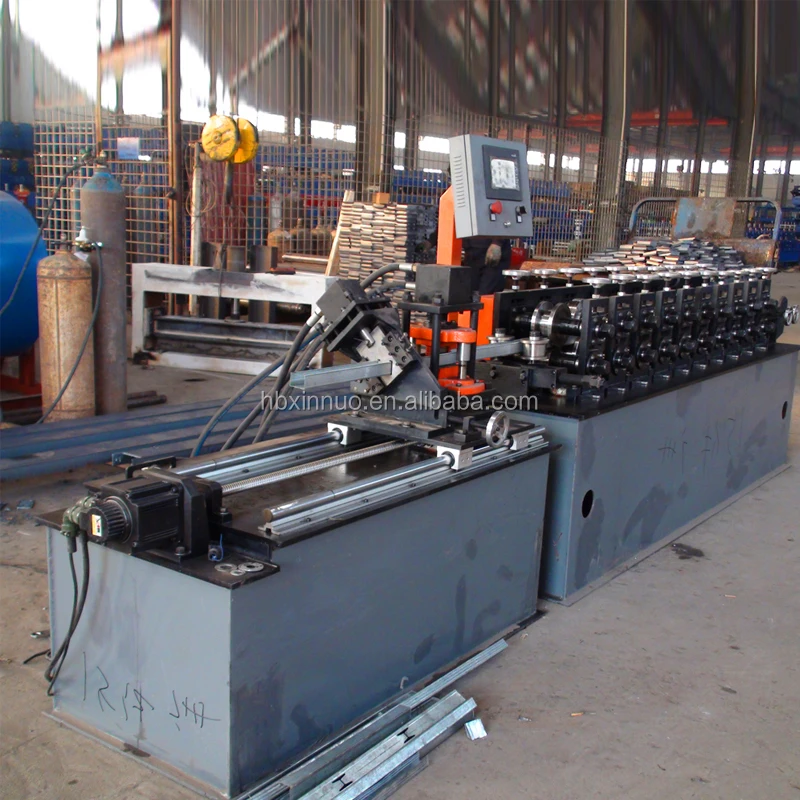

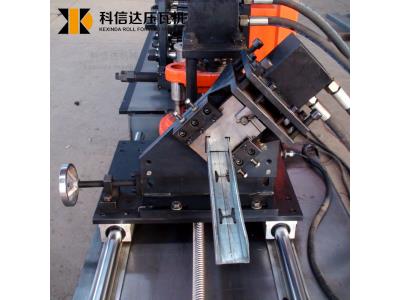

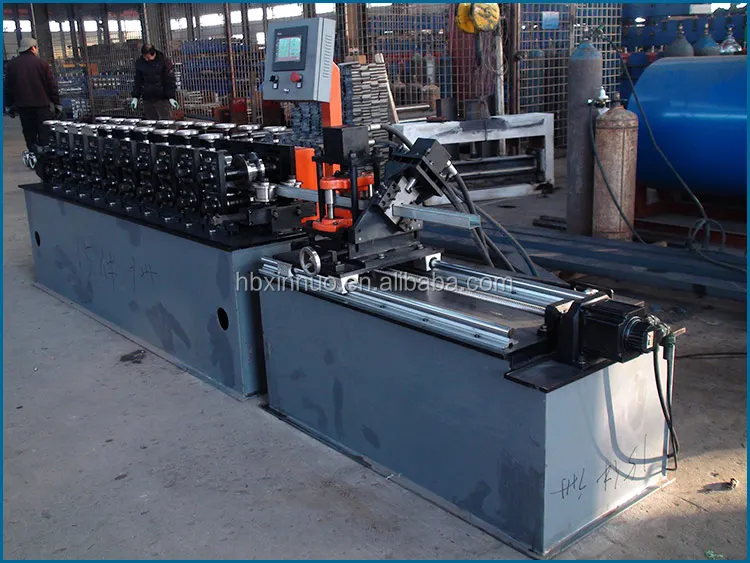

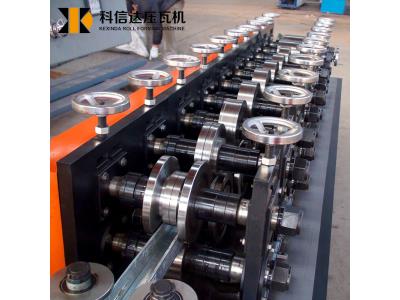

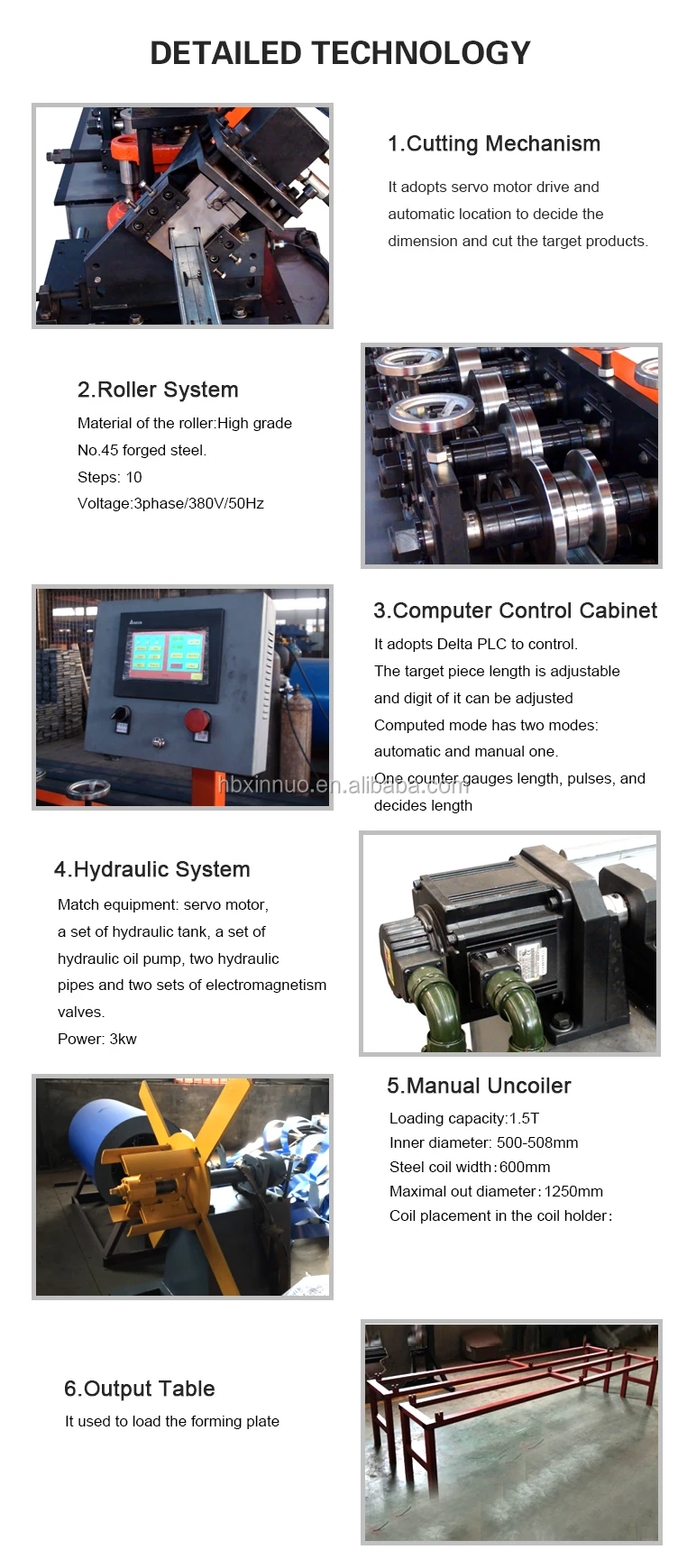

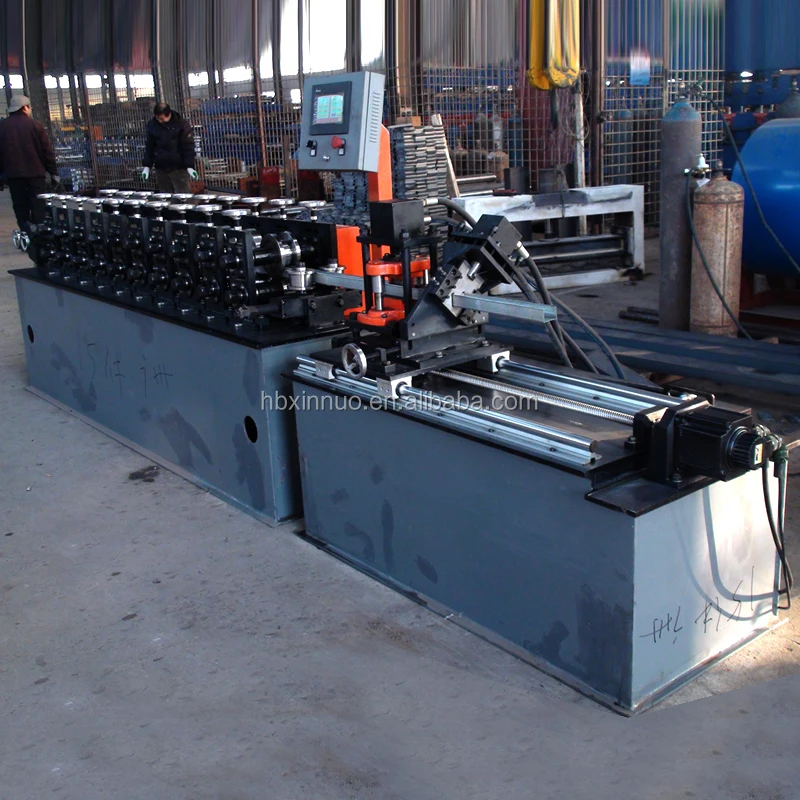

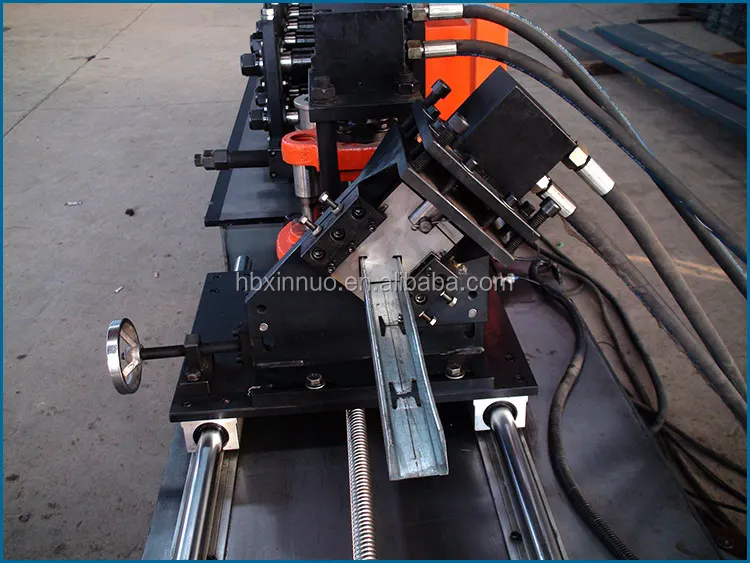

Product Pictures
