KENT(USA) Surface Grinding machine Surface Grinder

Inquire Now

KENT(USA) Surface Grinding machine Surface Grinder

Product Description

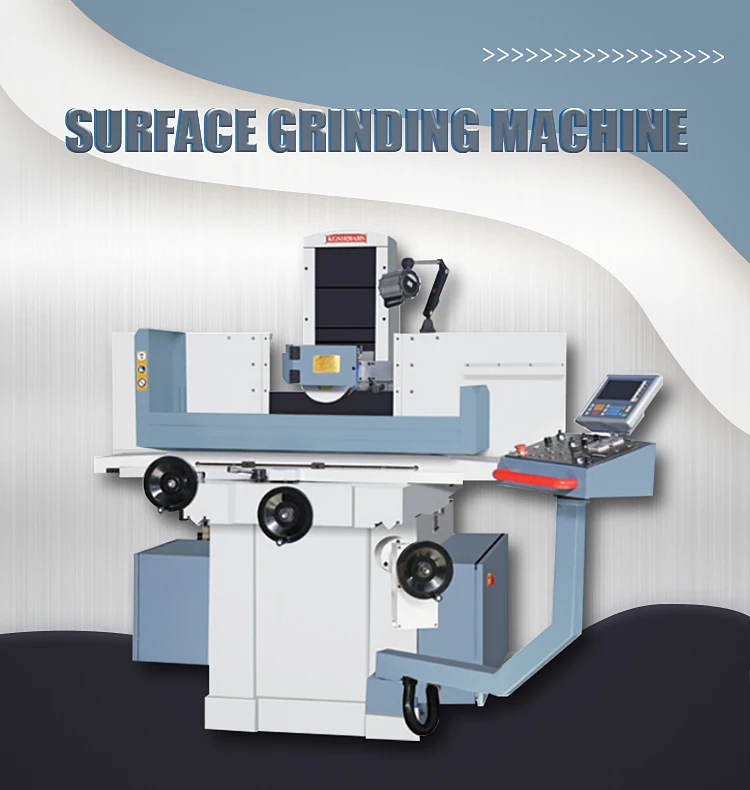

NC surface grinder machine

1.advanced control system: all the electric accessories are of good function and quality
2.much more stable structure: considering the actual production, we take the most suitable structure to ensure the machine work more quiet and smooth
3.wider range for using: this machine can be widely used in many aspects

Grinding (grinding machine) is a machine for grinding the surface of a workpiece using an abrasive. Most of the grinders are processed with high-speed grinding wheels, while a few use other abrasives and free abrasives, such as honing machines, ultra-finishing machines, belt grinders, grinders, and polishers.

Specification


Parameters

Unit

KGS1224SD

Working Surface of Table

mm

300×600 (12″×24″)

Max.Table Travel

mm

660

Max.Cross Travel

mm

340

Distance Between Table Surface and Spindle Center

mm

520

Max.Table Load

kgs

420

T-Solt (Number×Width)

mm

1×14

Table Speed

m/min

5~25

Cross feed Handwheel

1gard

mm

0.02

1 rev

5

Automatic Cross feed of Saddle

mm

0.5~12

Power Cross Feed

50HZ

mm/min

790

60HZ

950

Grinding Wheel Dimensions

mm

355×40×127

Spindle Speed

50HZ

rpm

1450

60HZ

1740

Vertical Handwheel

1gard

mm

0.001

1 rev

0.5

Automatic Down Feed Rate

mm

0.001~1

Power Head Increment

mm/min

210

Spindle Motor

kw

4

Vertical Motor

w

1000

Hydraulic Motor

kw

1.5

Dust Collection Motor

w

550

Coolant Motor

w

90

Crossfeed Motor

w

90

Floor Space

mm

2600×2500

Packing Dimensions

mm

2150×1940×2195

Net Weight

kgs

1910

Gross Weight

kgs

2210
