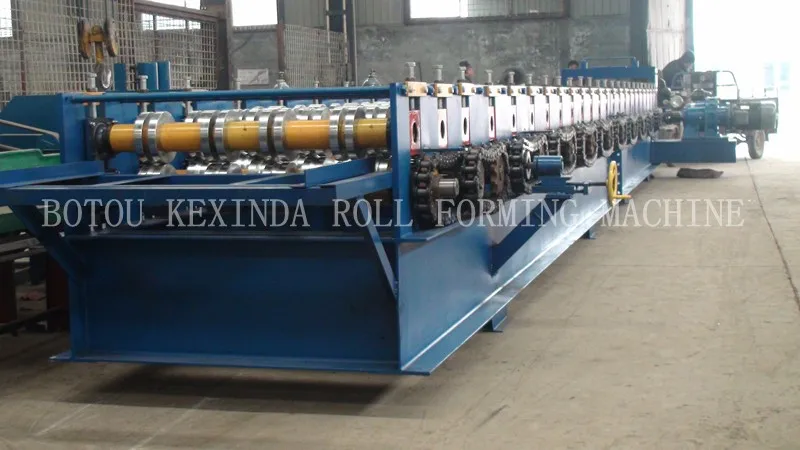

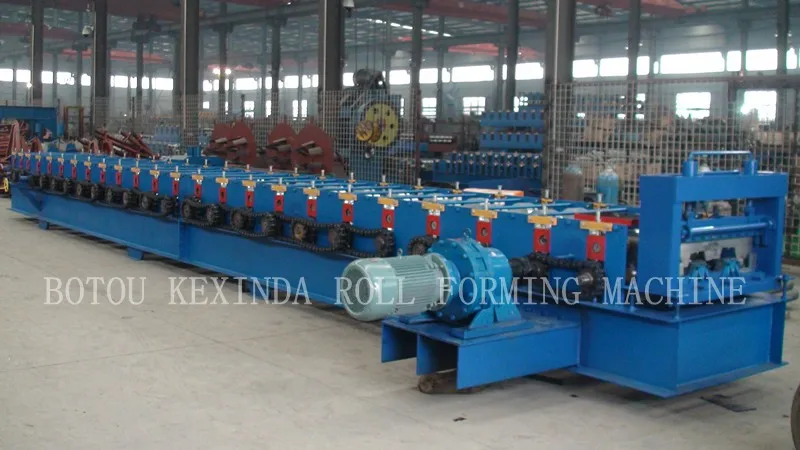

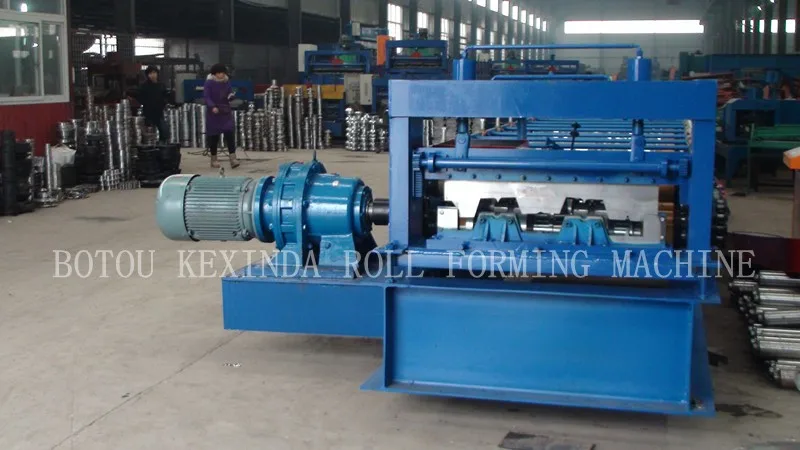

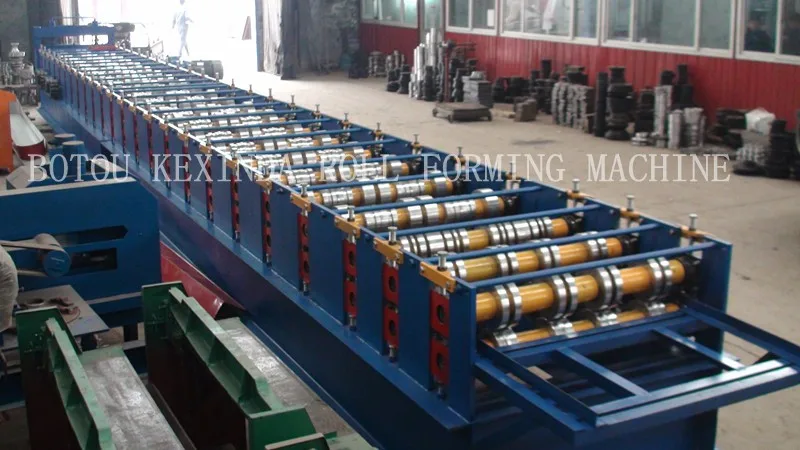

KEXINDA Automatic Operation Aluminum Plate Floor Decking Metal Panel Roll Forming Machine
Inquire NowDescription

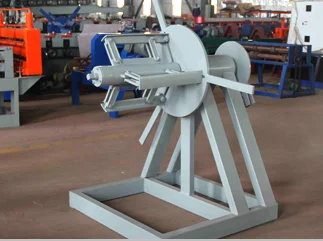

The KEXINDA Automatic Operation Aluminum Plate Floor Decking Metal Panel Roll Forming Machine is a state-of-the-art equipment designed for the efficient production of metal panels used in various construction and industrial applications. This versatile machine features a robust construction with components such as a man-made uncoiler, roll forming machine, computer control system, hydraulic control system, and cutting mechanisms. Its sleek appearance and durable build make it suitable for use in industrial factories, civilian buildings, warehouses, and easy steel building manufacturing.
Specifications
| Name | KEXINDA Automatic operation aluminum plate floor decking metal panel Roll Forming Machine |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 1000 mm |
| Roller station | 27 rows |
| Thickness of feeding material | 0.3-0.8 mm |
| Power Supply | 380V, 3-Phase, 50Hz |
| Productivity | 8-12 m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 75 mm |
| Roller Diameter | 95 mm |
| Wall thickness of main forming machine | 14 mm steel plate |
| Main forming machine body | 300 mm H steel |
| Main motor power | 11 kW, 3 phase |
| Hydraulic motor power | 5.5 kW |
| Cutter Standard | GCr12 |
| Size | 15000 × 1200 × 1100 mm |
| Weight | About 10 T |
| Custom | According to customer’s requirements |
Additional Information
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our factory.
After-Sales Service:
* Training on how to install the machine and how to use it.
* Engineers available to service machinery overseas.
