?Kexinda C Channel Stud and Track Roll Forming Machine??

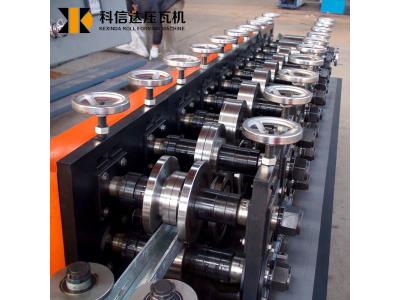

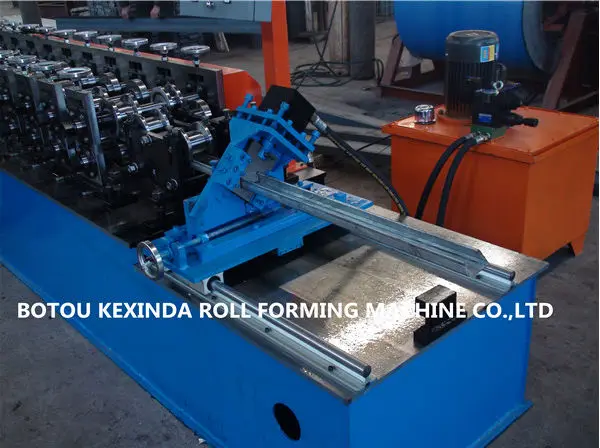

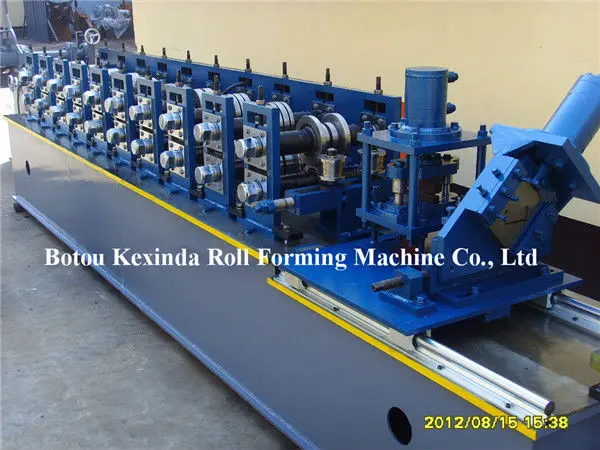

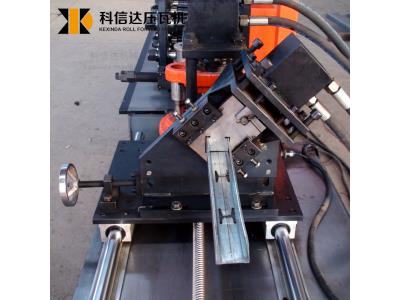

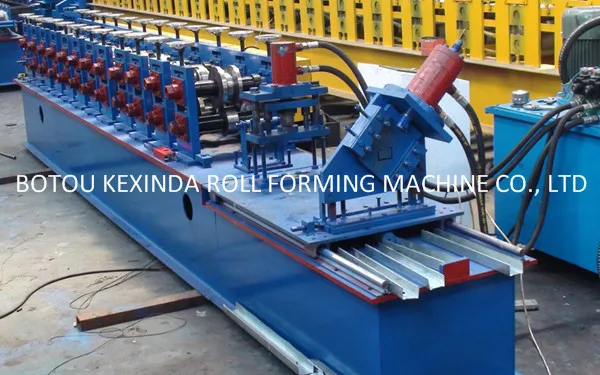

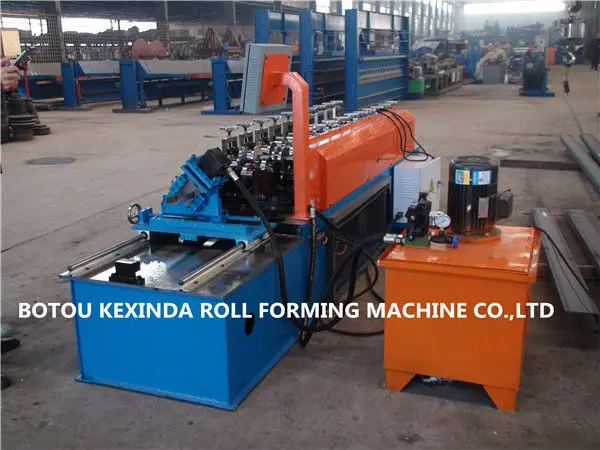

Inquire NowThe Kexinda C Channel Stud and Track Roll Forming Machine is designed for efficiency and precision in producing C channel profiles. Utilizing galvanized sheet metal, this machine operates automatically, ensuring a streamlined manufacturing process. With a focus on productivity, it can achieve a speed of up to 25 meters per minute, making it an ideal choice for high-demand applications. This robust machine features a compact design, measuring 4000mm x 1300mm x 1100mm, and is constructed with high-quality materials, including 45# steel rollers, ensuring durability and longevity in demanding environments.
| Attribute | Details |
|---|---|
| Material | Galvanized Sheet |
| Equipment Operation | Automatically |
| Voltage | AC380/50-60Hz |
| Thickness of Sheet (mm) | 0.35mm-0.6mm |
| Formed Width (mm) | 25X25 |
| Productivity | 0-25 m/min |
| Size (mm) | 4000mm x 1300mm x 1100mm |
| Material of Rollers | 45# Steel |
| Total Power (kw) | 6 kw |
| Driven System | Single |

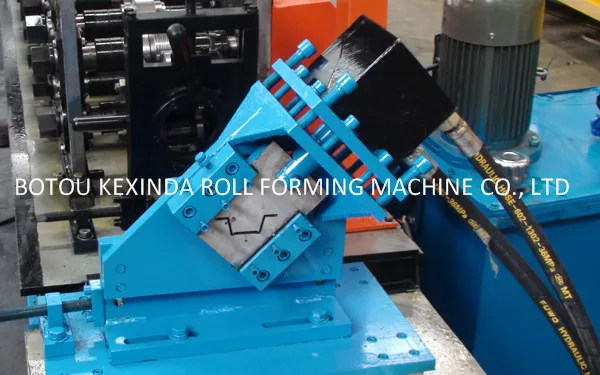

| Power of Hydraulic System | 3 KW |
| Power of Main Molding Core | 3 KW (Cycloidal Planetary Gear Speed Reducer) |
This machine comes with a 12-month guarantee, ensuring that any broken parts will be replaced at no cost, provided the damage is not due to operational error. In case of operational issues, the buyer must cover shipping costs for replacement parts. Additionally, after-sale service includes technician visits to assist with repairs, with costs for travel and accommodation borne by the buyer. Kexinda Roll Forming Machine Co., Ltd. specializes in various roll forming machines and has been exporting since 1998.
