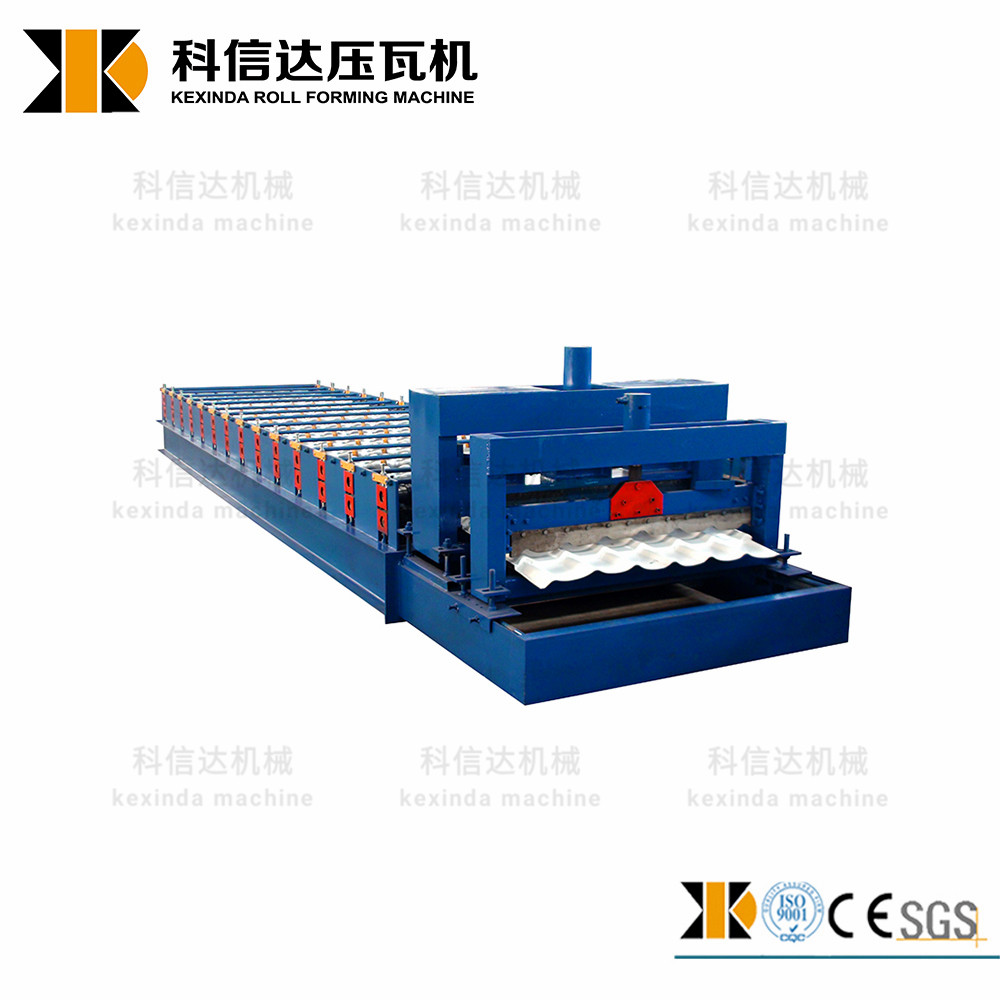

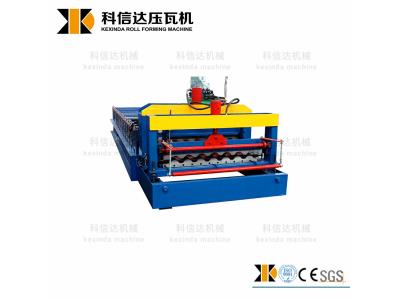

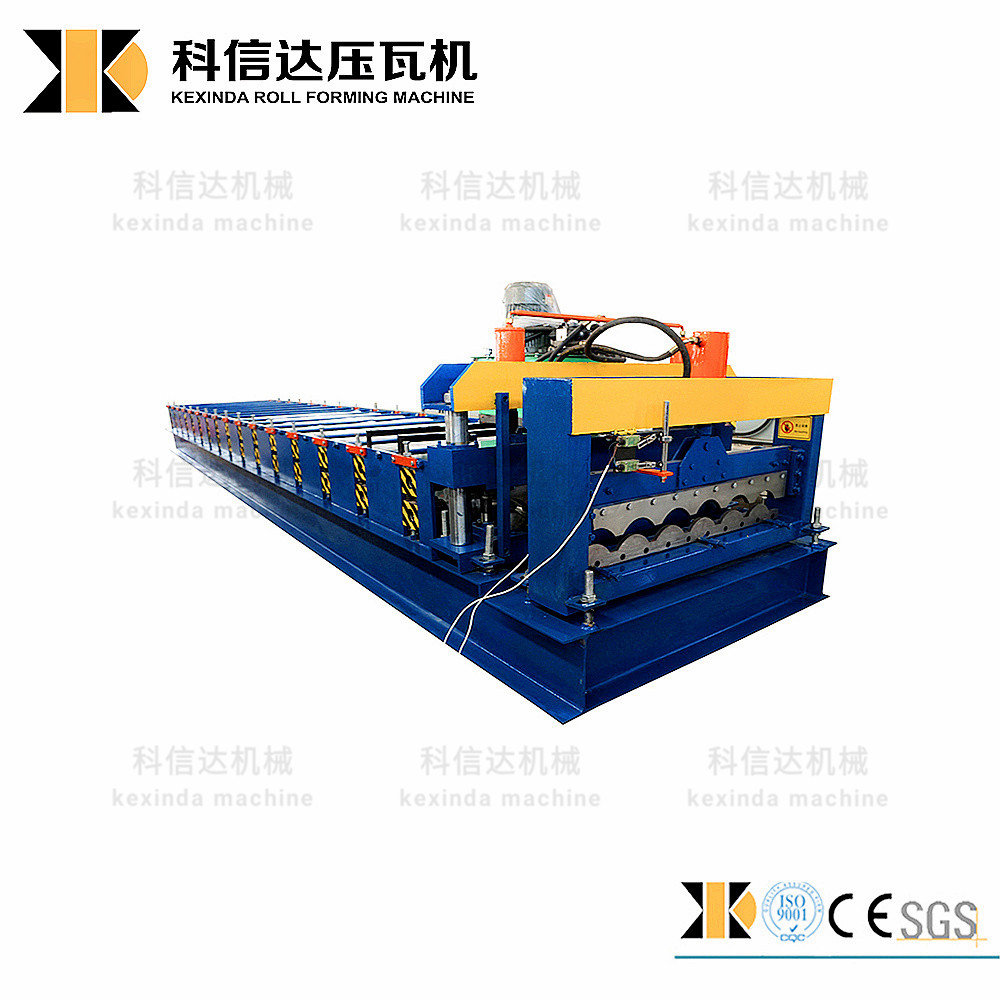

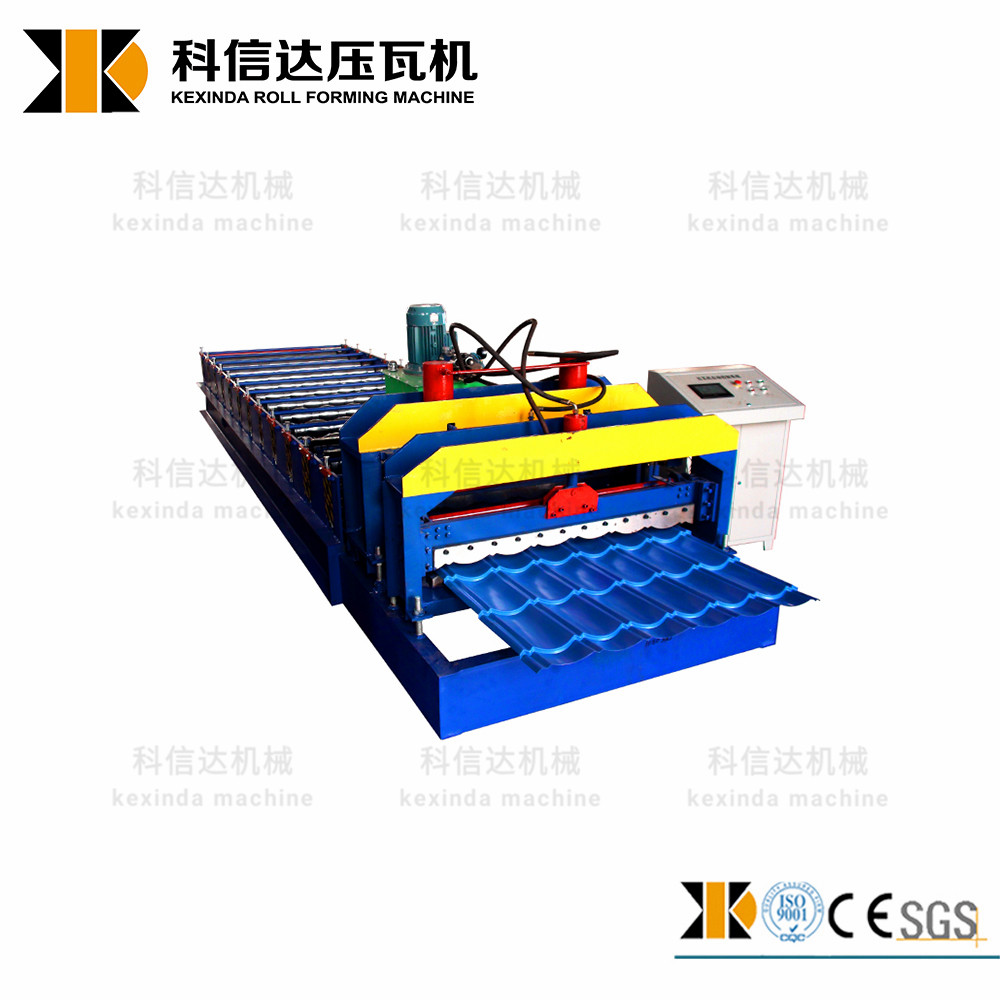

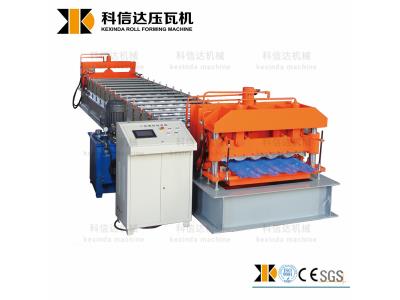

KEXINDA CHINA Colorful Zinc Sheet 828 Glazed Tile Roofing Panel Roll Forming Machine
Inquire NowDescription
The KEXINDA CHINA Colorful Zinc Sheet 828 Glazed Tile Roofing Panel Roll Forming Machine is a cutting-edge solution designed for the efficient production of glazed tile roofing panels. This machine excels in processing a variety of materials, including color steel plates, galvanized sheets, and aluminum coils. With a robust construction and advanced design, it ensures high productivity and long-lasting performance. Ideal for industrial factories, civilian buildings, and warehouses, this machine not only enhances aesthetic appeal but also guarantees durability and reliability in roofing applications.
Specifications
| Name | Botou colorful zinc sheet 828 glazed tile roofing panel roll forming machine |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 1000mm |
| Roller station | 11 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Power Supply | 380V, 3-Phase, 50Hz |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 75mm |
| Roller Diameter | 80mm |
| Wall thickness of main forming machine | 14mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 4+3kw |
| Cutter Standard | GCr12 |
| Size | 7500*1500*1600mm |
| Weight | About 3.5T |
| Custom | According to customer’s requirements |
Additional Information
Equipment components:
Man-made uncoiler, roll forming machine, computer control system, hydraulic control system, cutting.
This machine is widely used in various industrial factories, civilian buildings, warehouses, and easy steel building manufacturing, offering both aesthetic appeal and durability.
