OEM ODM KEXINDA Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine for Tiles

Product Description

The Botou Highway Guardrail W Beam Making Machine is designed to efficiently produce two-wave road barrier bars, providing essential safety solutions for highways. This robust machine is engineered for high performance, featuring a PLC control system that ensures precision in operation. With a forming speed of 10-20 m/min and 20 forming steps, it guarantees a reliable output of high-quality guardrails. Constructed with durable materials, this machine is a crucial investment for manufacturers looking to enhance their production capabilities in road safety equipment.

Specifications

Attribute Details
Dimension About 13000 x 1600 x 1200 mm
Total Weight 13 tons
Forming Steps 20 steps up to final design
Forming Speed 10-20 m/min
Hydraulic Station Power 11 kW
Chain Size 27 mm
Decoiler Capacity 3.5 tons
Control System PLC
Raw Material Thickness 0.3-4 mm
Usage Highway guardrail
Additional Information

Cutting System: The cutting material is Cr12Mov with quenched treatment, allowing for precise panel dimensions controlled by hydraulic drive and PLC.

Roller System: Composed of high-grade No. 45 forged steel, it features 14 roller stations, adaptable to client specifications.

Computer Control Cabinet: Supports multiple languages including English, Chinese, Spanish, and Russian.

Hydraulic System: Power of 4 kW and operates with 46# hydraulic oil.

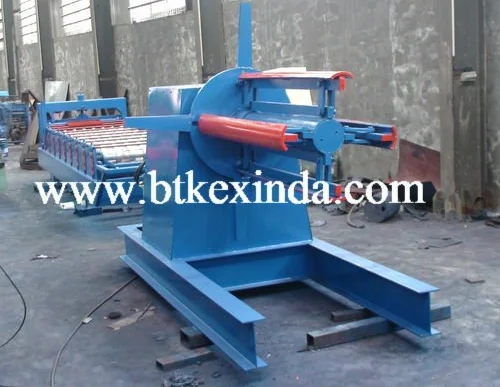

Decoiler: Capacity of 3.5 tons with an inner diameter of 350 mm and steel coil width of 1300 mm.

Receiving Table: Built with welded steel and supported rollers for efficient collection of finished products.

Guarantee: 12 months guarantee, with specific terms for parts damaged due to operational error.

After-Sale Service: Technicians available for machine servicing, with costs covered by the buyer.
