Kexinda Rain Gutter Roll Forming Machine with Competitive Price
Inquire NowDescription

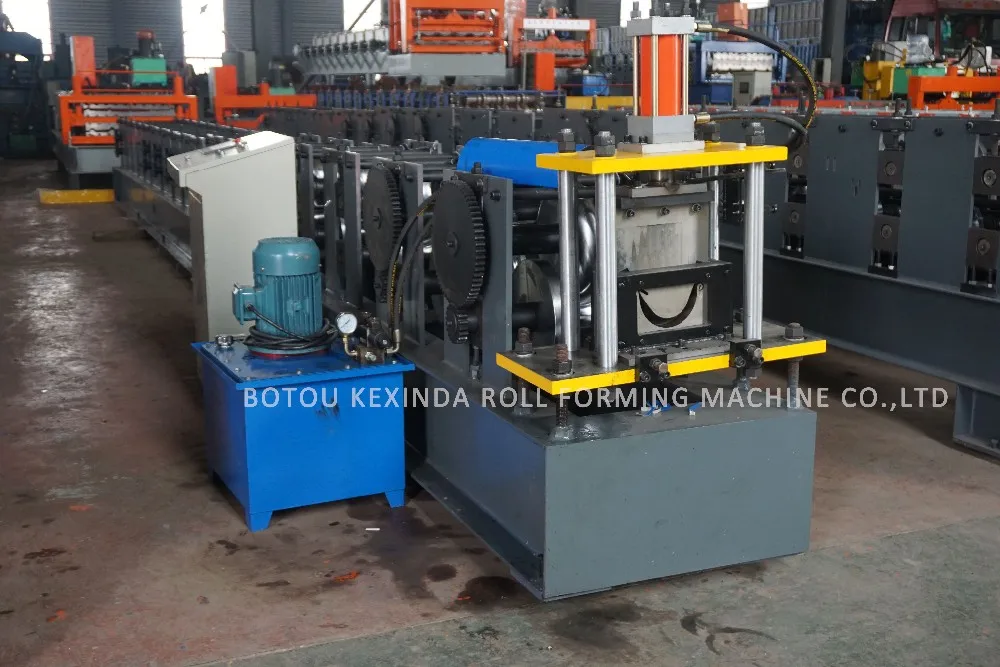

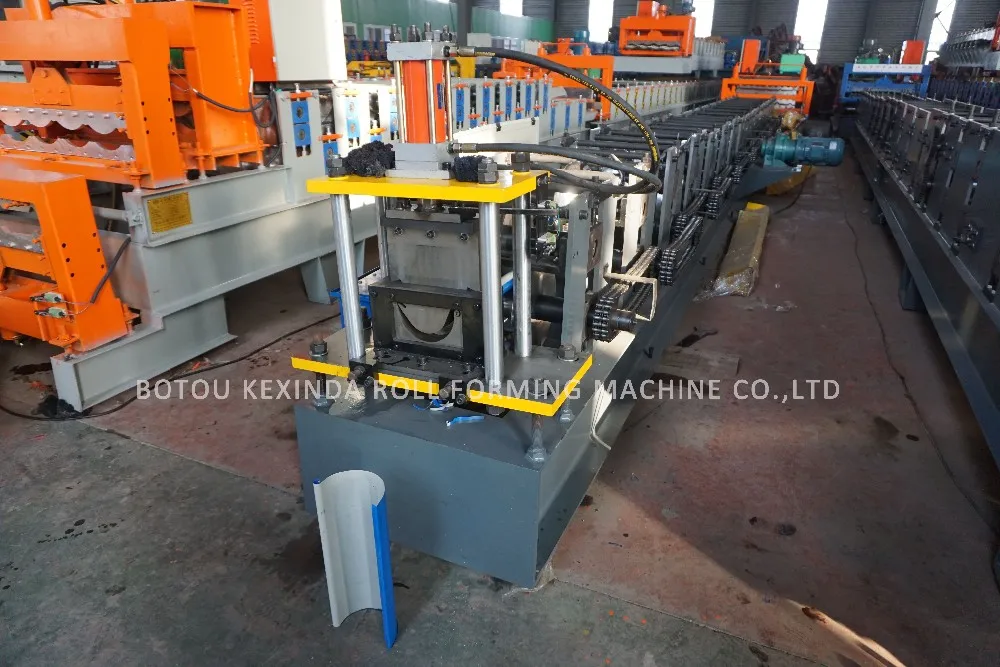

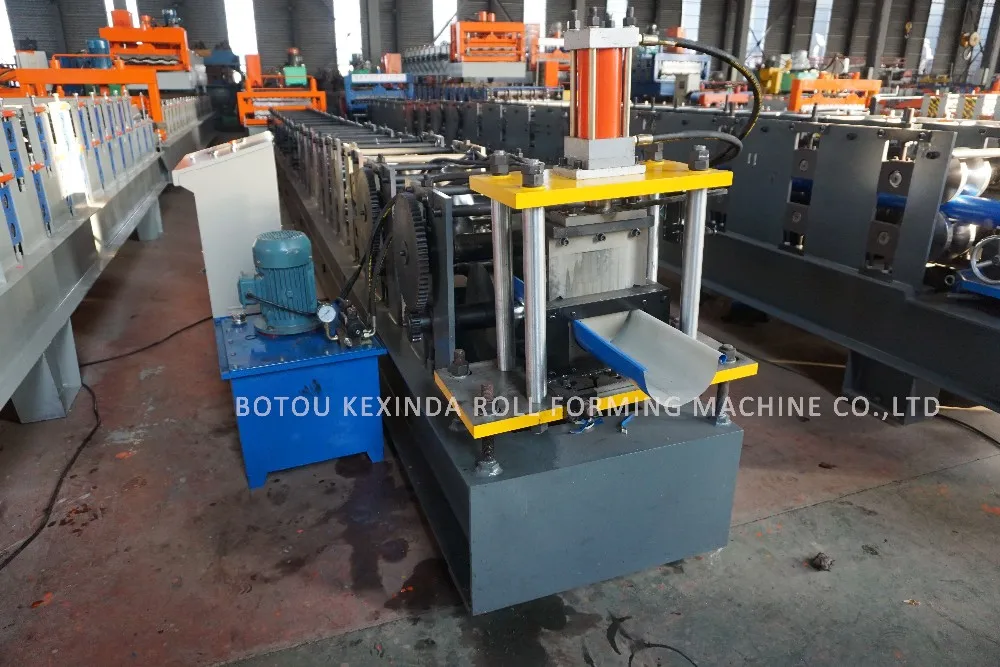

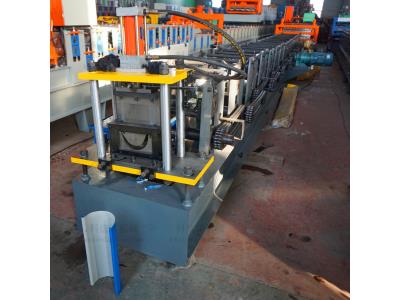

The Kexinda Rain Gutter Roll Forming Machine is designed for high-performance gutter manufacturing, featuring cutting-edge technology and robust construction. This machine is equipped with a complete set of components including an uncoiler, PLC control system, hydraulic cutting system, and a collection table, ensuring efficient and seamless operation. The advanced automation capabilities provide precision and reliability, making it an excellent choice for manufacturers seeking to enhance their production capabilities.
Its working process flow involves uncoiling, coil feeding, guiding, roll forming, optional punching, cutting, and finally collecting the formed gutters. This systematic approach ensures that the entire process is streamlined and effective.
Specifications
| Attribute | Details |
|---|---|
| Power Supply | 380V, 3 phases, 50 Hz (adjustable) |
| Main Motor Power | 4KW |
| Pump Power | 3KW |
| Uncoiler Inner Diameter | 500mm |
| Uncoiler Outer Diameter | 1100mm |
| Loading Weight | 5t |
| Feeding Thickness | 0.3-0.6mm |
| Feeding Width | 300-600mm |
| Forming Speed | 10-12m/min |
| Cutting Deviation | 10m ± 2mm |
| No. of Roller Station | 16-18 groups |
| Roller Material | Cr12 |
| Material of Shaft | 45# steel with heat treatment |
| Diameter of Shaft | 52-70mm |
| Hydraulic Pressure | 10-12 Mpa |
| Cutter Material | Cr12 |
| Control System | Full-automatic NC-PLC control system with colored touch screen |
Additional Information
For optimal performance, ensure the machine is set up with the appropriate power supply and regularly maintain its hydraulic and mechanical systems. The full-automatic control system enhances user experience and operational efficiency.
