Kexinda Rain Gutter Roll Forming Machine with Competitive Price
Inquire NowDescription

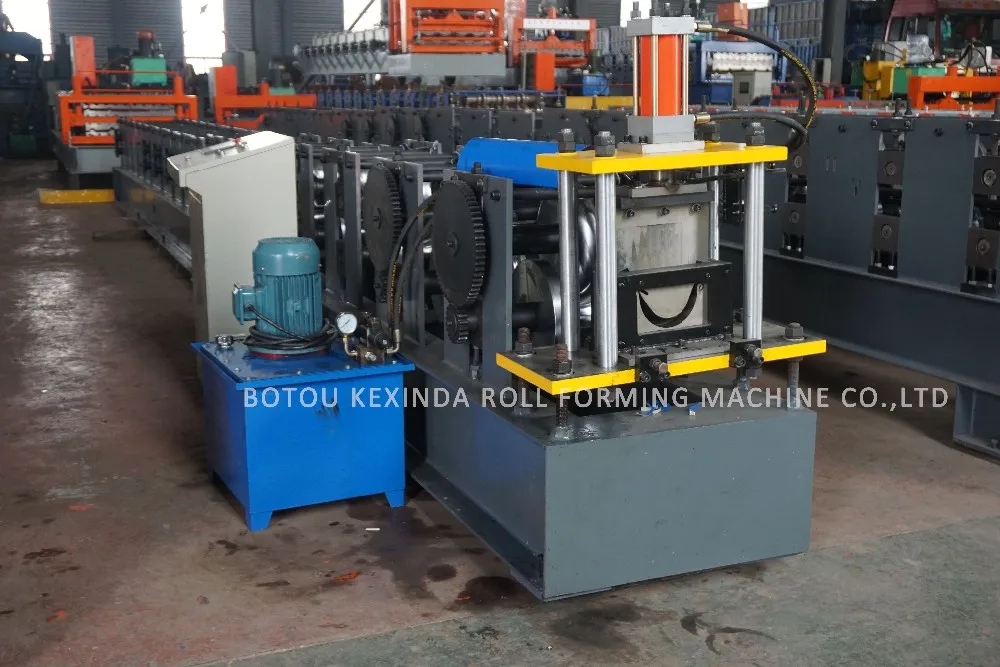

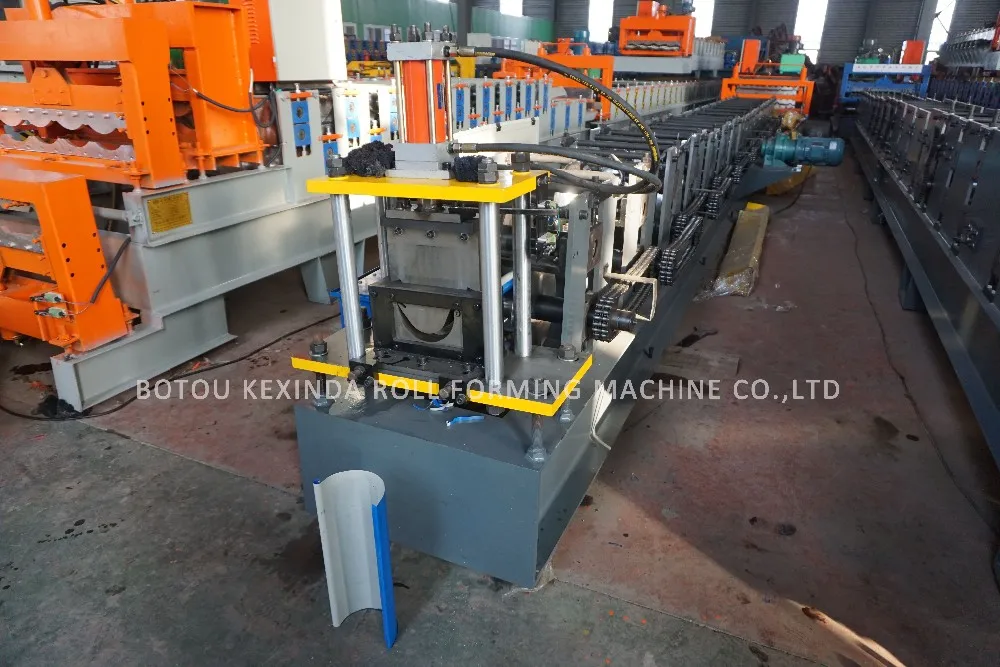

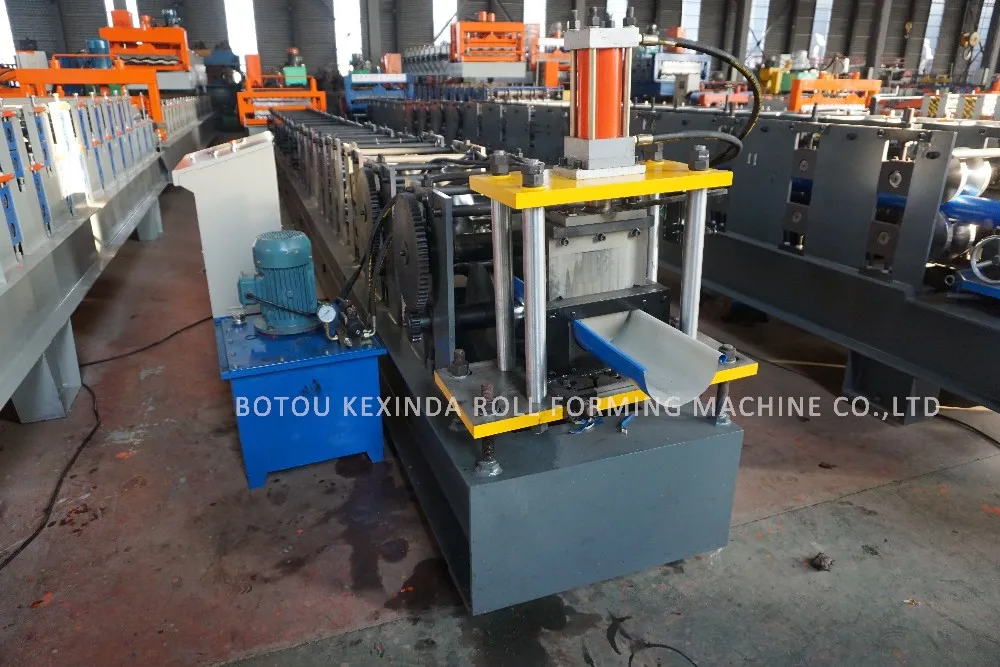

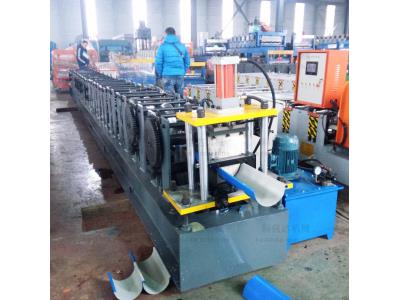

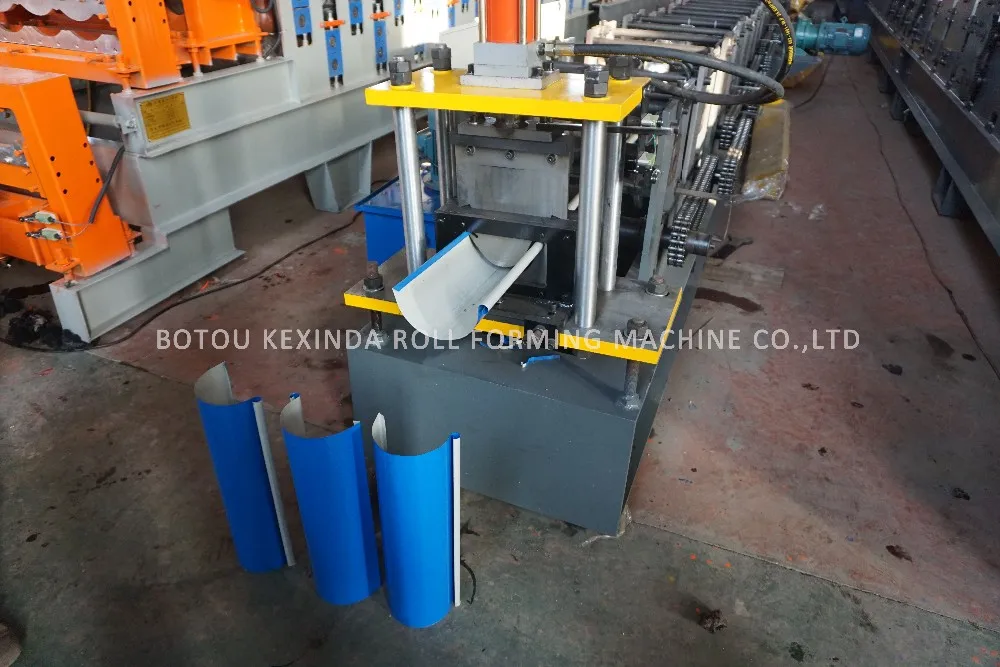

The Kexinda Rain Gutter Roll Forming Machine is a high-performance solution designed specifically for producing rain gutters with precision and efficiency. This machine comes equipped with all necessary components, including an uncoiler, PLC control system, hydraulic cutting system, and a collection table, ensuring a seamless operation from start to finish. The intelligent design allows for easy adjustments to accommodate varying production needs, making it an ideal choice for manufacturers seeking reliability and competitive pricing.
With a robust working process flow that includes uncoiling, coil feeding, guiding, roll forming, and cutting, this machine guarantees high-quality output. Its advanced technology and user-friendly control system enable operators to manage the production process effortlessly.
Specifications
| Attribute | Details |
|---|---|
| Power Supply | 380V, 3 phases, 50 Hz (adjustable) |
| Main Motor Power | 4KW |
| Pump Power | 3KW |
| Uncoiler Inner Diameter | 500mm |
| Uncoiler Outer Diameter | 1100mm |
| Loading Weight | 5t |
| Feeding Thickness | 0.3-0.6mm |
| Feeding Width | 300-600mm |
| Forming Speed | 10-12m/min |
| Cutting Deviation | 10m±2mm |
| No. of Roller Stations | 16-18 groups |
| Roller Material | Cr12 |
| Material of Shaft | 45# steel with heat treatment |
| Diameter of Shaft | 52-70mm |
| Hydraulic Pressure | 10-12 Mpa |
| Cutter Material | Cr12 |
| Control System | Full-automatic NC-PLC control with a colored touch screen |
Additional Information
This machine is built for durability and efficiency, making it suitable for various manufacturing environments. It is essential to follow proper maintenance procedures to ensure optimal performance over time. The PLC control system allows for easy programming and operation, enhancing productivity and reducing downtime.
