KEYPOWER AC Resistive Load Banks 700 kW for UPS Testing
Inquire NowDescription

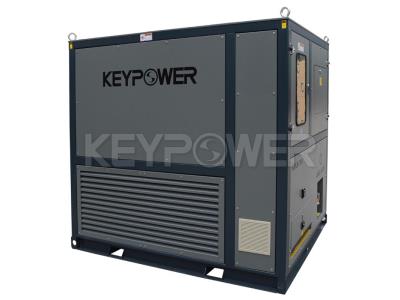

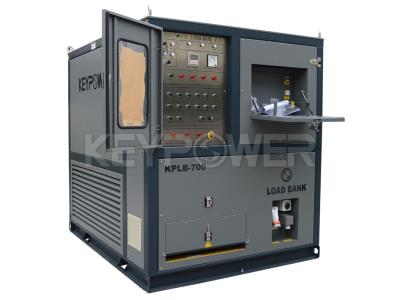

The KEYPOWER AC Resistive Load Bank is a robust and reliable solution designed for testing UPS systems, battery banks, and other power systems. With a testing capacity of 700 kW, this load bank is capable of simulating various load conditions, ensuring your power systems operate optimally. Its independent research and development have led to the integration of premium components, ensuring durability and exceptional performance.
This resistive load bank features stainless steel sheathed elements manufactured from high-grade magnesium oxide, making it suitable for both resistive and reactive loads. Its forced air-cooling system, equipped with industrial-grade axial fans, guarantees efficient heat dissipation during operation. The load bank supports a rated testing voltage of 110-480V and operates seamlessly within a frequency range of 50/60 Hz.
Designed for easy transportation, the KEYPOWER load bank combines advanced technology with user-friendly features, making it an essential tool for power system maintenance and testing.
Specifications
| Measurement | Range | Accuracy | Resolution | Overload |
|---|---|---|---|---|
| Voltage (V) | 10.0~500.0V | ± (0.4% reading + 0.1% range) | 0.1V | 600V |
| Current (A) | 0.030~5.000A | ± (0.4% reading + 0.1% range) | 0.001A | 6A |
| Power Factor | 0.20~1.00 | ±0.02 | 0.001 | |
| Frequency | 45~65Hz | ±0.2Hz | 0.01Hz | |
| Running Time | 99h59m | ±2min/hour | 1 minute | |
| Energy (kWh) | 99999kWh | Power factor= 1.0 | 0.001kWh |
Additional Information
This load bank operates in environments with an altitude of ≤ 3000m and temperatures ranging from -10 to +50 ℃, with a relative humidity of ≤ 80%. It is important to use the load bank in a ventilated area free from explosive or corrosive dust.
