KEYPOWER Resistive Load Bank 1000 kw
Inquire NowDescription

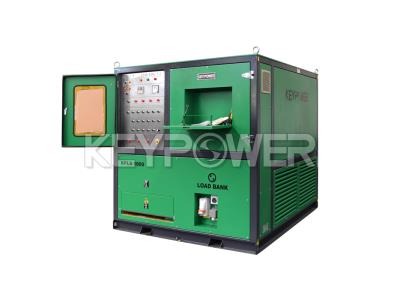

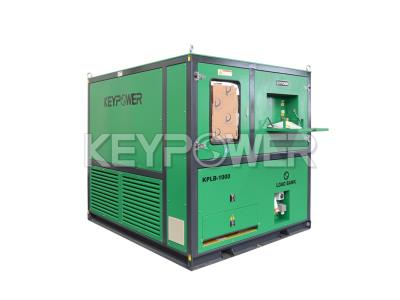

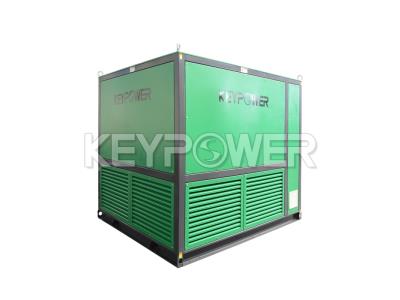

The KEYPOWER Resistive Load Bank 1000 kW is a state-of-the-art testing solution designed for generators, UPS systems, and battery banks. This premium equipment is engineered for independent research and development, ensuring its reliability and durability. The load bank simulates load tests, enabling users to assess the performance and stability of power systems effectively. With a range of 0 to 1000 kW, it is perfect for various applications and settings. Its robust construction features high-quality components, including stainless steel sheathed elements and world-renowned manufacturers’ parts, ensuring longevity and optimal performance.
Specifications
| Measurement | Range | Accuracy | Resolution | Overload |
|---|---|---|---|---|
| Voltage (V) | 10.0~500.0V | ± (0.4% reading + 0.1% range) | 0.1V | 600V |
| Current (A) | 0.030~5.000A | ± (0.4% reading + 0.1% range) | 0.001A | 6A |
| Power Factor | 0.20~1.00 | ±0.02 | 0.001 | |
| Frequency | 45~65Hz | ±0.2Hz | 0.01Hz | |
| Running Time | 99h59m | ±2min/hour | 1 minute | |
| Energy (kWh) | 99999kWh | Power factor= 1.0 | 0.001kWh |
Models You Can Choose
| Model | Testing Capacity | Type of Load | Duty | Cooling System | Phase | Rated Testing Voltage | Rated Frequency | Dimensions (L*W*H) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| KPLB-100 | 0 – 100 kW | Resistive or Reactive, PF = 1.0 or 0.8 | Continuous | Industrial grade axial fan | Available at both single and three phase | 110-480 VAC | 50/60 Hz | 960*1060*1400 | 350 |
| KPLB-200 | 0 – 200 kW | Resistive or Reactive, PF = 1.0 or 0.8 | Continuous | Industrial grade axial fan | Available at both single and three phase | 110-480 VAC | 50/60 Hz | 1560*1310*1650 | 850 |
| KPLB-300 | 0 – 300 kW | 1690*1440*1750 | 1100 | ||||||
| KPLB-400 | 0 – 400 kW | 1900*1600*1900 | 1250 | ||||||
| KPLB-500 | 0 – 500 kW | 1900*1600*1900 | 1400 | ||||||
| KPLB-600 | 0 – 600 kW | 2100*1730*2000 | 1550 | ||||||
| KPLB-700 | 0 – 700 kW | 2100*1730*2000 | 1650 | ||||||
| KPLB-800 | 0 – 800 kW | 2400*2030*2100 | 2010 | ||||||
| KPLB-1000 | 0 – 1000 kW | 2400*2030*2100 | 2250 | ||||||
| KPLB-1300 | 0 – 1300 kW | 3500*2270*2150 | 3070 | ||||||
| KPLB-1400 | 0 – 1400 kW | 3500*2270*2150 | 3150 | ||||||
| KPLB-1500 | 0 – 1500 kW | 3500*2270*2150 | 3300 | ||||||
| KPLB-1600 | 0 – 1600 kW | 6058*2438*2591 | 6000 | ||||||
| KPLB-2000 | 0 – 2000 kW | 6058*2438*2591 | 7360 | ||||||
| KPLB-2200 | 0 – 2200 kW | 6058*2438*2591 | 7700 | ||||||
| KPLB-2500 | 0 – 2500 kW | 6058*2438*2591 | 8100 |
Additional Information
This load bank features premium components from renowned manufacturers, including SCHNEIDER contactors, Siemens switches, ABB circuit breakers, and OMRON relays, ensuring reliable performance and longevity. The load bank also comes with advanced protective features like overheating protection and overload alarms, making it a safe choice for all your testing needs. Its operational flexibility includes local manual control and an optional remote control panel for ease of use.
