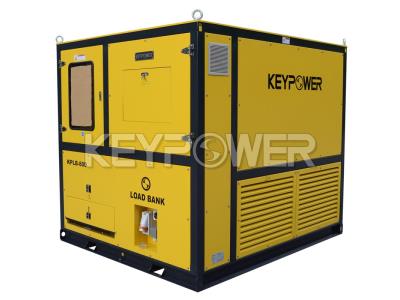

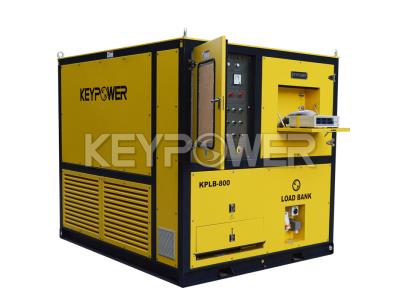

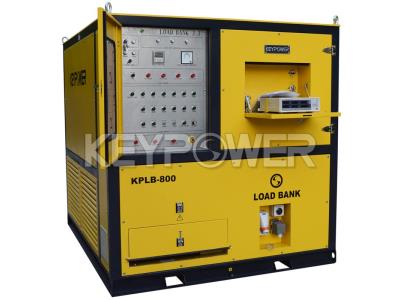

KEYPOWER Resistive Load Bank 800 kw
Inquire NowDescription
The KEYPOWER Resistive Load Bank is a high-performance testing equipment designed for generators, UPS systems, and battery banks. With a robust capacity of 800 kW, this load bank is ideal for simulating load tests essential for ensuring the reliability and efficiency of power systems. Engineered through independent research and development, it features premium components that guarantee durability, reliability, and easy transportability.
This load bank operates with a resistive type load, providing a power factor of 1.0. Its stainless steel sheathed elements are manufactured from high-grade magnesium oxide, ensuring high performance and longevity. The unit supports a wide testing voltage range of 110-480VAC and can work in various environments, making it suitable for both industrial and commercial applications.
Specifications
| Measurement | Range | Accuracy | Resolution | Overload |
|---|---|---|---|---|
| Voltage (V) | 10.0~500.0V | ± (0.4% reading+0.1% range) | 0.1V | 600V |
| Current (A) | 0.030~5.000A | ± (0.4% reading+0.1% range) | 0.001A | 6A |
| Power Factor | 0.20~1.00 | ±0.02 | 0.001 | |
| Frequency | 45~65Hz | ±0.2Hz | 0.01Hz | |
| Running Time | 99h59m | ±2min/hour | 1 minute | |
| Energy (kWh) | 99999kWh | ± (0.4% reading+0.1% range) | 0.001kWh |
Additional Information
Load bank features include world-renowned components such as SCHNEIDER contactors, Siemens switches, ABB circuit breakers, and OMRON relays, ensuring reliable performance and extended service life. The control modes available are local manual control and optional remote control, with a maximum control distance of 30 meters.
Operating environment requirements include an altitude of ≤ 3000m, ambient temperatures between -10 to +50 °C, and relative humidity ≤ 80% in a ventilated environment. The load bank is equipped with multiple protections against overheating, cooling fan failure, and overload, ensuring safe and efficient operation.
