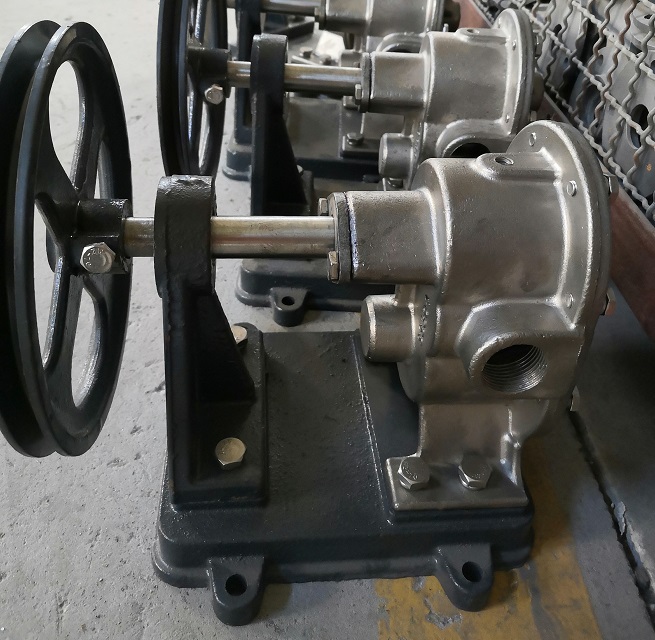

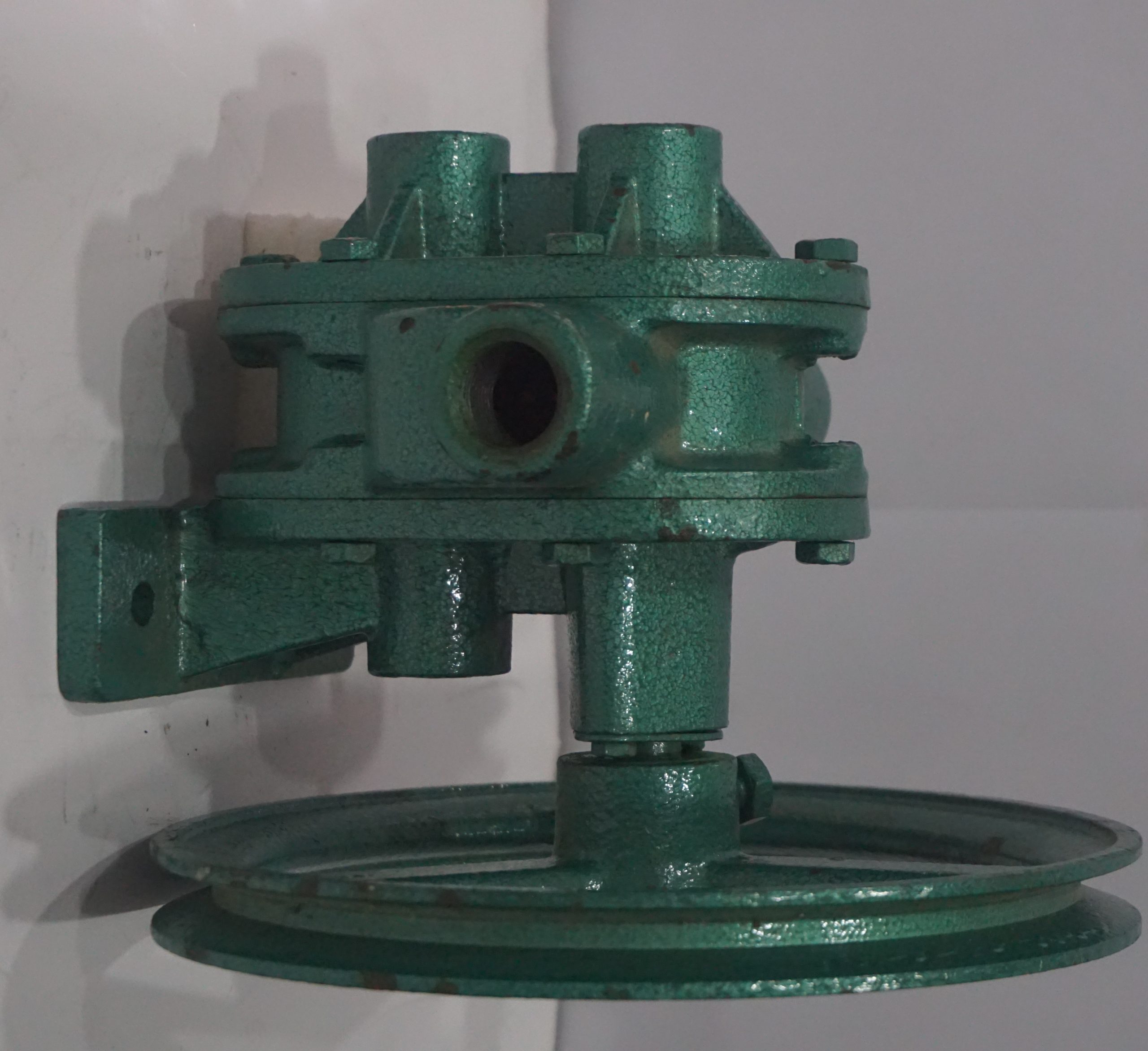

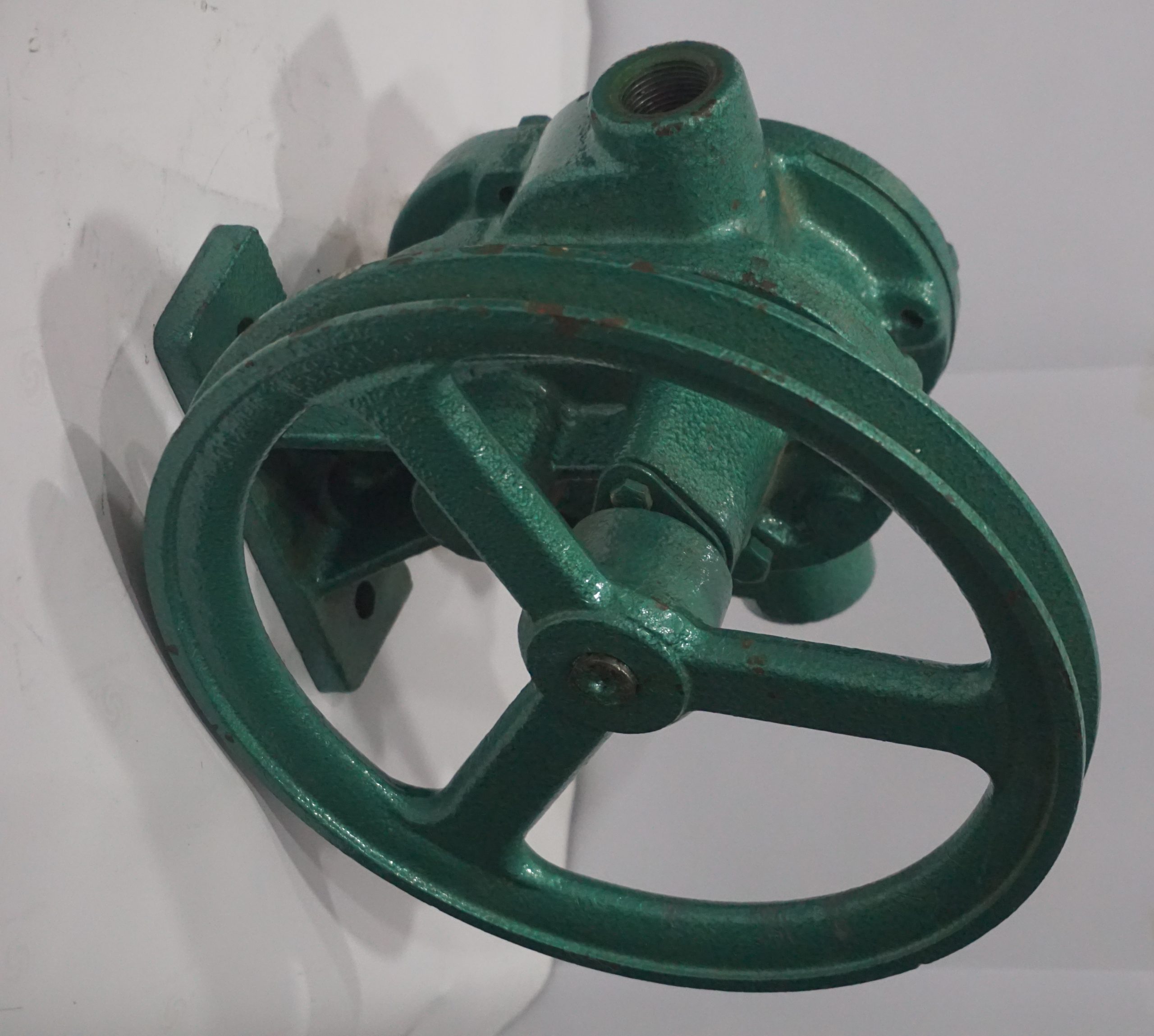

KM/MB GEAR PUMP
Inquire NowDescription
The KM/MB Gear Pump is a high-performance solution designed for the efficient delivery of non-corrosive lubricating oils or equivalent liquids. Ideal for various industrial applications, this pump ensures reliable operation by transporting fluids without solid particles and fibers at optimal temperatures. Its versatile design makes it suitable for a range of industries requiring efficient oil transportation.
Specifications
| Model | Power Consumption (kw) | Revolution (r/min) | Flow (L/min) | Pressure (Mpa) |
|---|---|---|---|---|
| MB 3/4 C | 0.37 | 500 | 39 | 0.2-0.4 |
| MB 1 C | 0.75 | 500 | 56 | 0.2-0.4 |
| MB 1 1/2 C | 1.7 | 450 | 100 | 0.2-0.4 |
| MB 2 C | 2.6 | 450 | 160 | 0.2-0.4 |
| Model | Inlet & Outlet (inch) | Discharge (L/min) | Lift (meter) | Weight (kg) |
| KM-13 | 1/2” | 21 | 10 | 7 |
| KM-20 | 3/4” | 37 | 10 | 10 |
| KM-25 | 1” | 55 | 15 | 16 |
| KM-35 | 11/4” | 121 | 15 | 28 |
| KM-40 | 11/2” | 212 | 15 | 30 |
| KM-50 | 2” | 242 | 15 | 55 |
| KM-80 | 3” | 456 | 15 | 95 |
