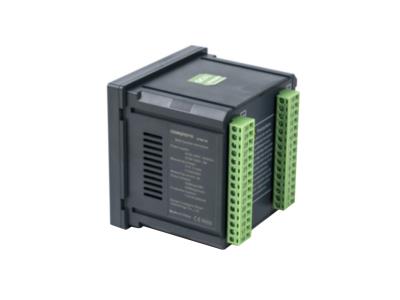

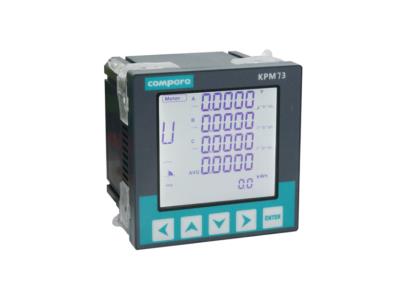

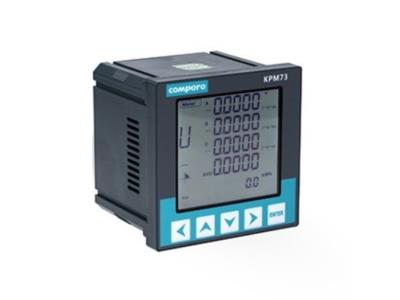

KPM 73 Multifunction Meter
Inquire NowDescription
The KPM 73 Multifunction Meter is a state-of-the-art device designed for precise measurement of power parameters. Utilizing advanced ARM processor and digital signal processing technology, this meter excels in bi-directional four-quadrant energy measurement, statistics, and recording functions. It is engineered to measure over 30 different electrical parameters, ensuring comprehensive monitoring of power systems. With features such as average power factor tracking over three months, demand statistics, and harmonic calculations, the KPM 73 is ideal for various applications from energy management to electrical monitoring.
Specifications
| Feature | Details |
|---|---|
| Working Power Source | AC 85-270V/DC 80-300V, Rated Power Consumption: < 3VA |
| Input Voltage | Rated Voltage: 57.7/100V, 220/380V, 380V/660V (customizable) |
| Input Current | Rated Current: Default 5A, Input Range 1-6A |
| Measurement Accuracy | Voltage: ±0.2%, Current: ±0.2%, Active Power: ±0.5% |
| Communication | RS485, Profibus-V1, Modbus-RTU protocol |
| Operating Environment | Temperature: -25℃ ~ +70℃, Humidity: 5%~95% (non-condensing) |
| Dimensions | Compact design suitable for various installations |
Additional Information
This multifunction meter is ideally suited for applications such as energy measurement, electrical fire monitoring, and control systems in medium and low-pressure environments. The KPM 73 can serve as a replacement for traditional three-phase power meters and is compatible with SCADA, EMS, and DCS systems.
