Description

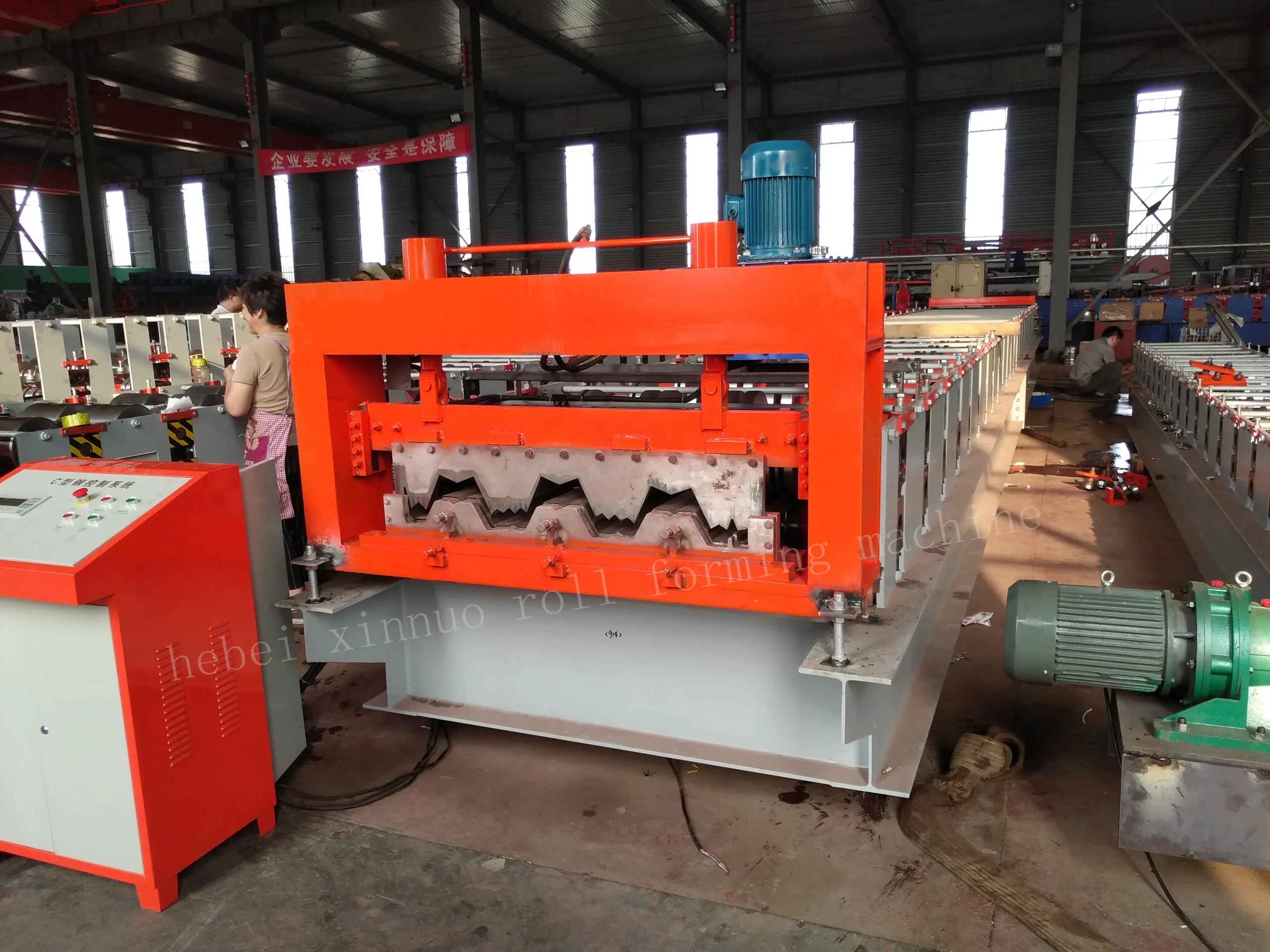

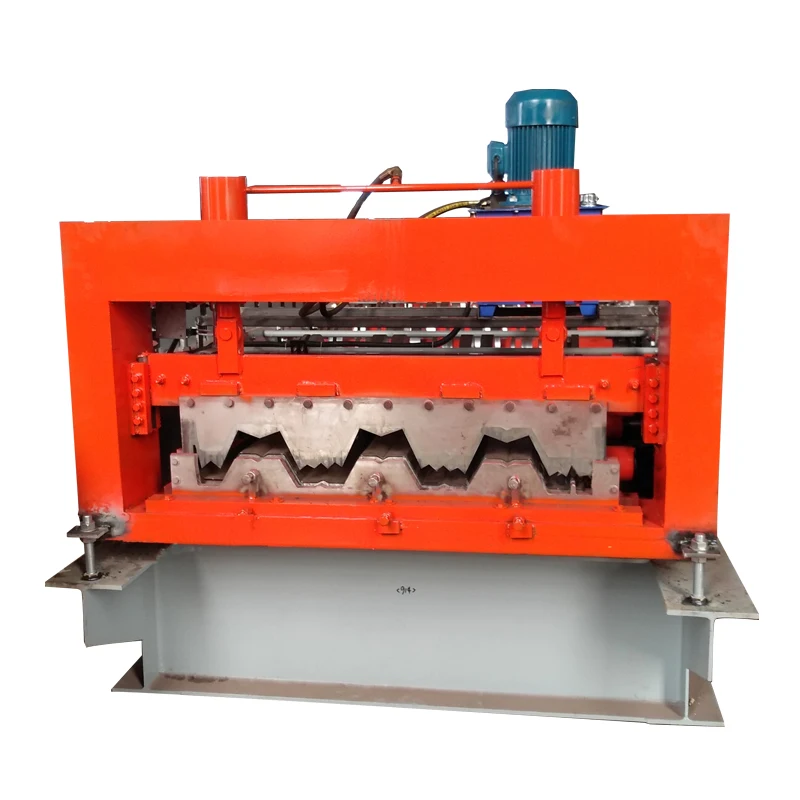

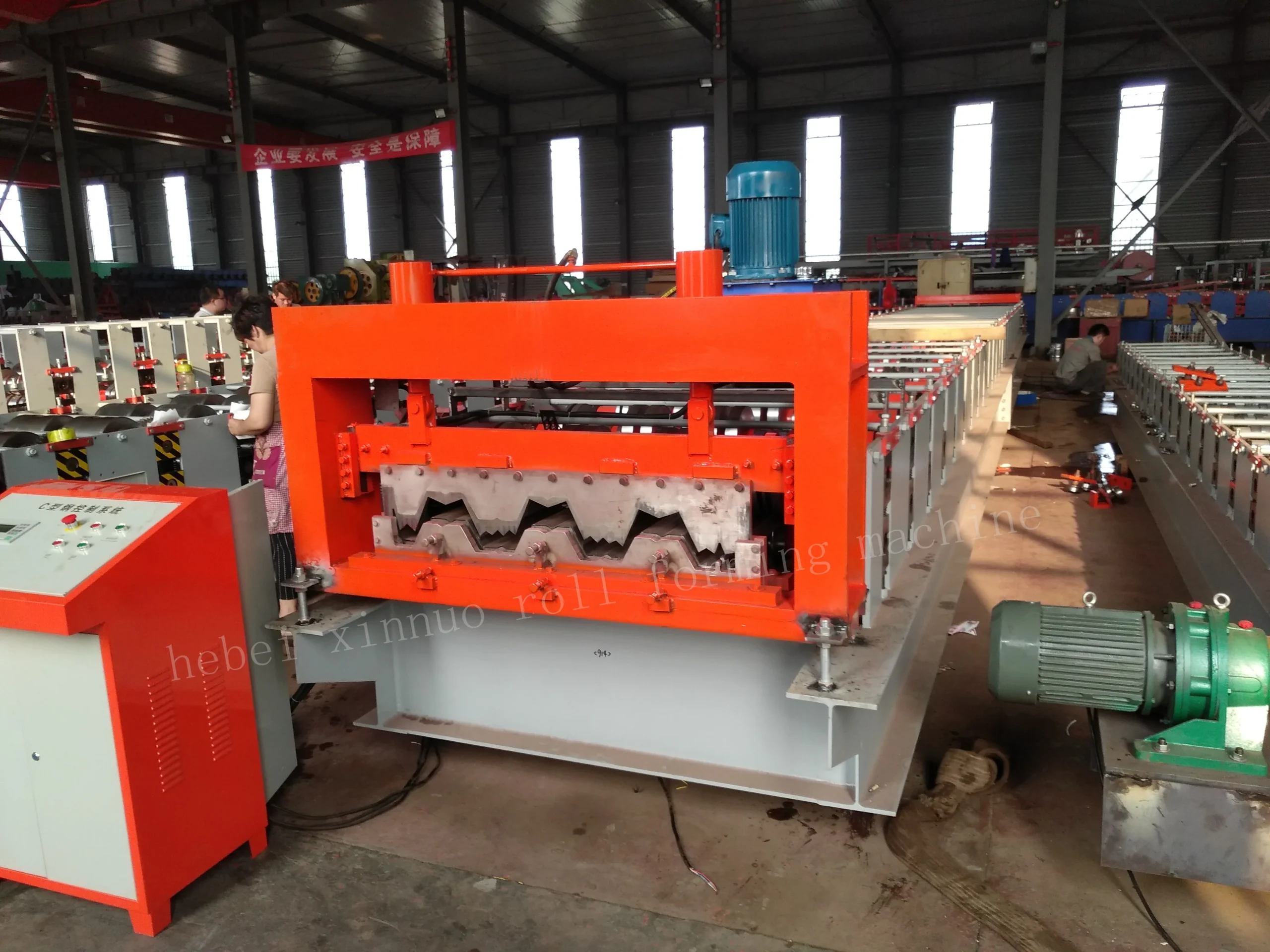

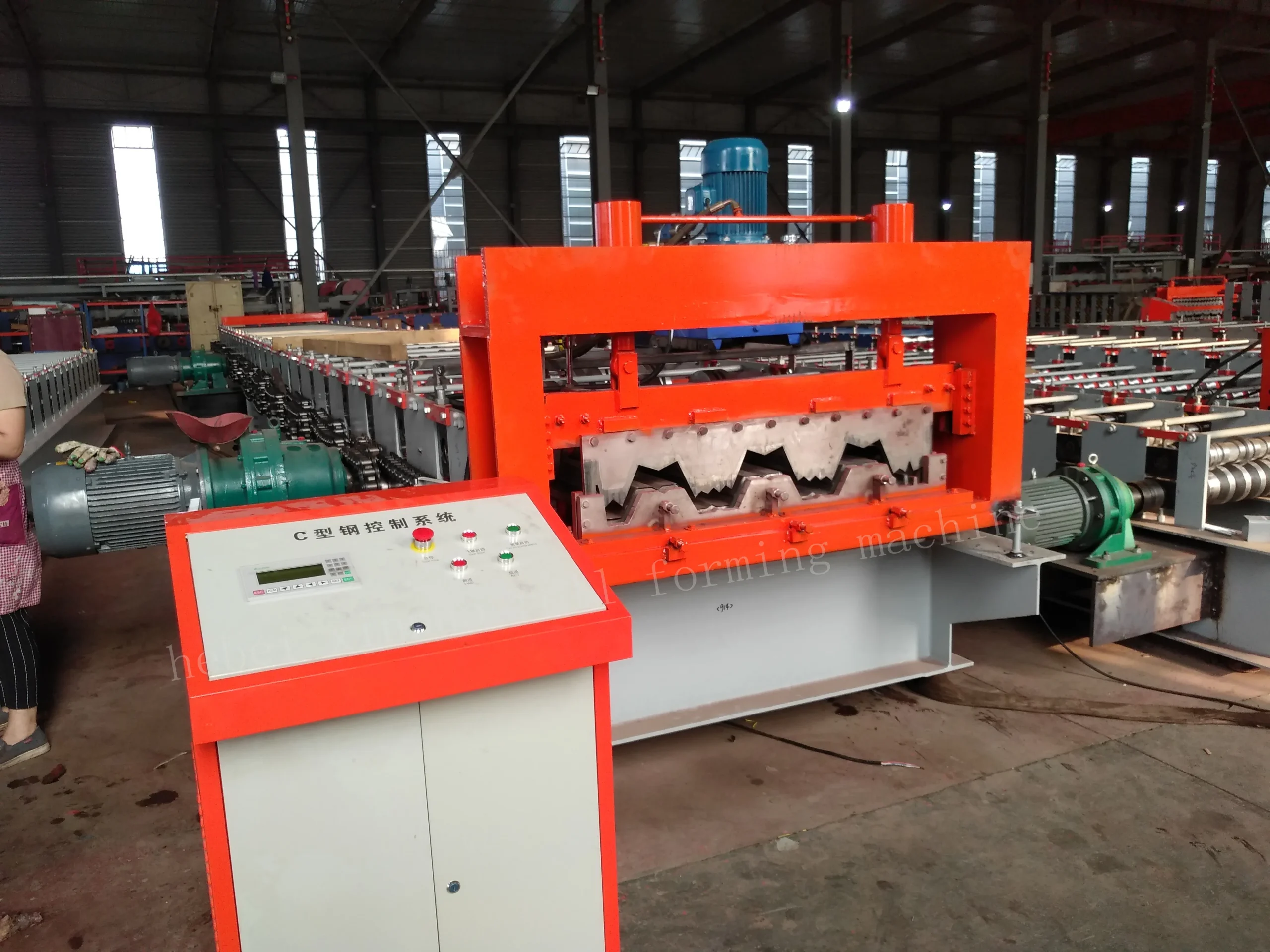

The KXD Hot Sales Floor Decking Panel Cold Rolling Forming Machine is a sophisticated and efficient solution for producing metal decking panels. This machine is designed to streamline the manufacturing process, ensuring high-quality output with precision. It includes essential components such as a Manual Uncoiler, Guiding Platform, Main Roll Forming Machine, Electro-Motor, Cutting Device, Hydraulic Station, and PLC Control for seamless operation. The machine’s robust construction and advanced technology make it ideal for various industrial applications.
Specifications
| Attribute | Details |
|---|---|
| Control System | NC-PLC Colored Touch Screen |
| Main Frame | 400mm H-Beam |
| Main Power | 18.5 kW |
| Pump Power | 5.5 kW |
| Power Supply | 380V, 3-Phase, 50Hz or any |
| Forming Speed | 10 m/min |
| Roll Station | 24 stands |
| Shaft Diameter | 90 mm |
| Hydraulic Pressure | 13-16 MPa |

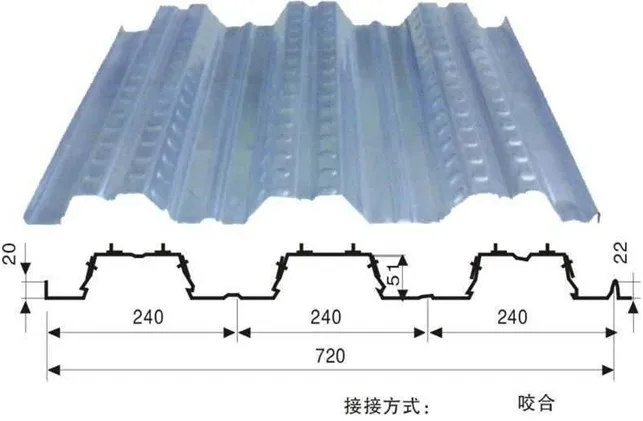

| Effective Width | 720 mm |
| Feeding Thickness | 0.8-1.3 mm |
| Feeding Width | 1000 mm |
| Side Panel Thickness | 22 mm |
| Cutter Standard | Cr12 |
| Roller Standard | 45# Steel plating Chrome with heat treatment |
| Cr-Plating Size | 0.05 mm |
| Overall Size | 14000×2000×1550 mm |
| Total Weight | 14 T |
Additional Information
All technical parameters can be customized according to user needs. The machine comes with a 12-month guarantee, covering parts that break due to manufacturing defects. However, if damage is due to operational errors, the buyer will be responsible for shipping costs. After-sale service includes sending a technician to assist with repairs, with the buyer covering all related expenses including visa, ticket, accommodation, and a daily salary of 100 USD.
