KXD Hot Sales Floor Decking Panel Cold Rolling Forming Machine Sheet Building Metal
Inquire NowDescription

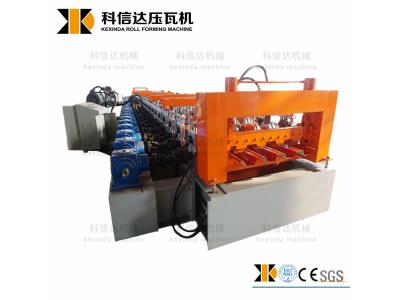

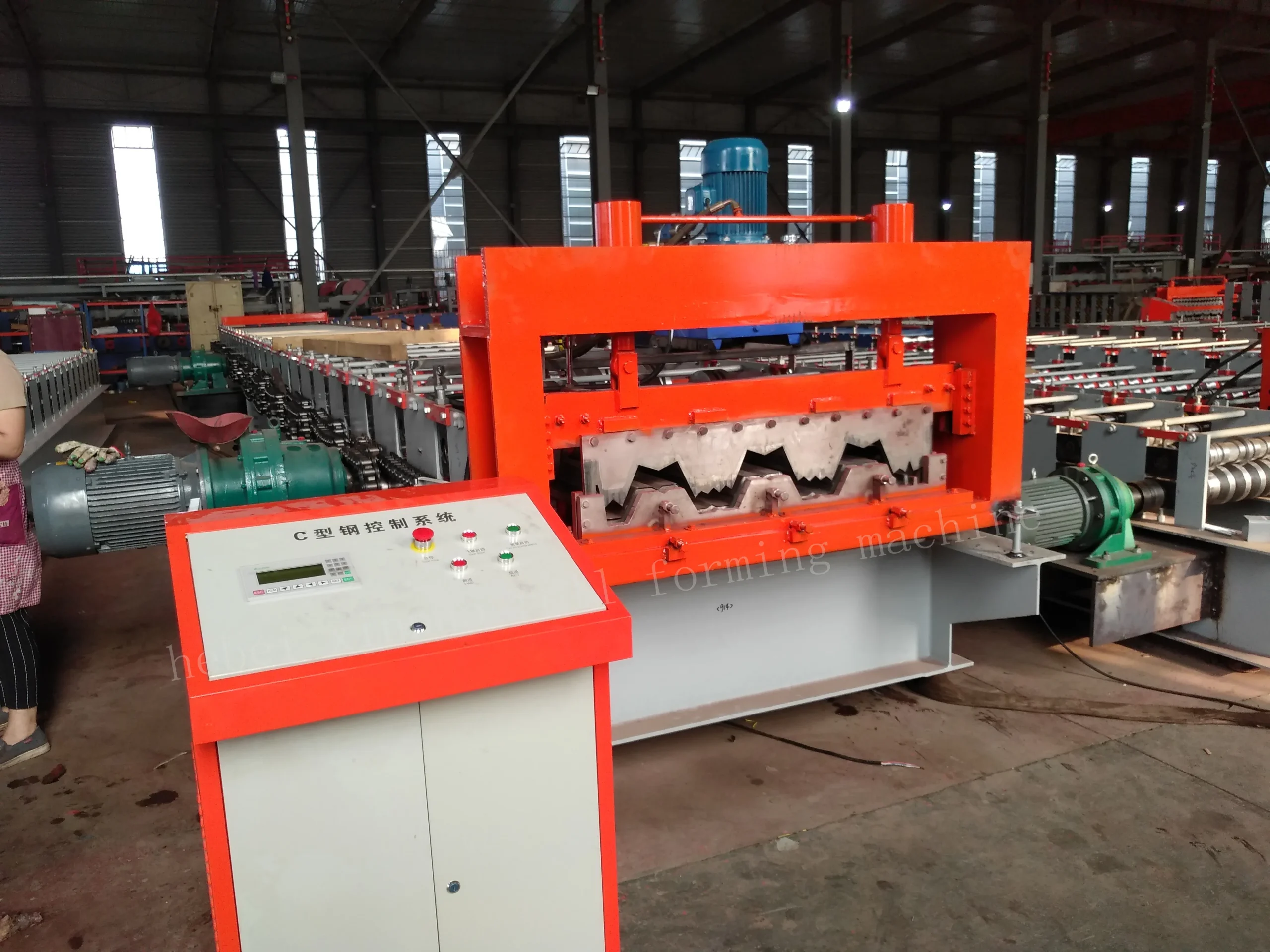

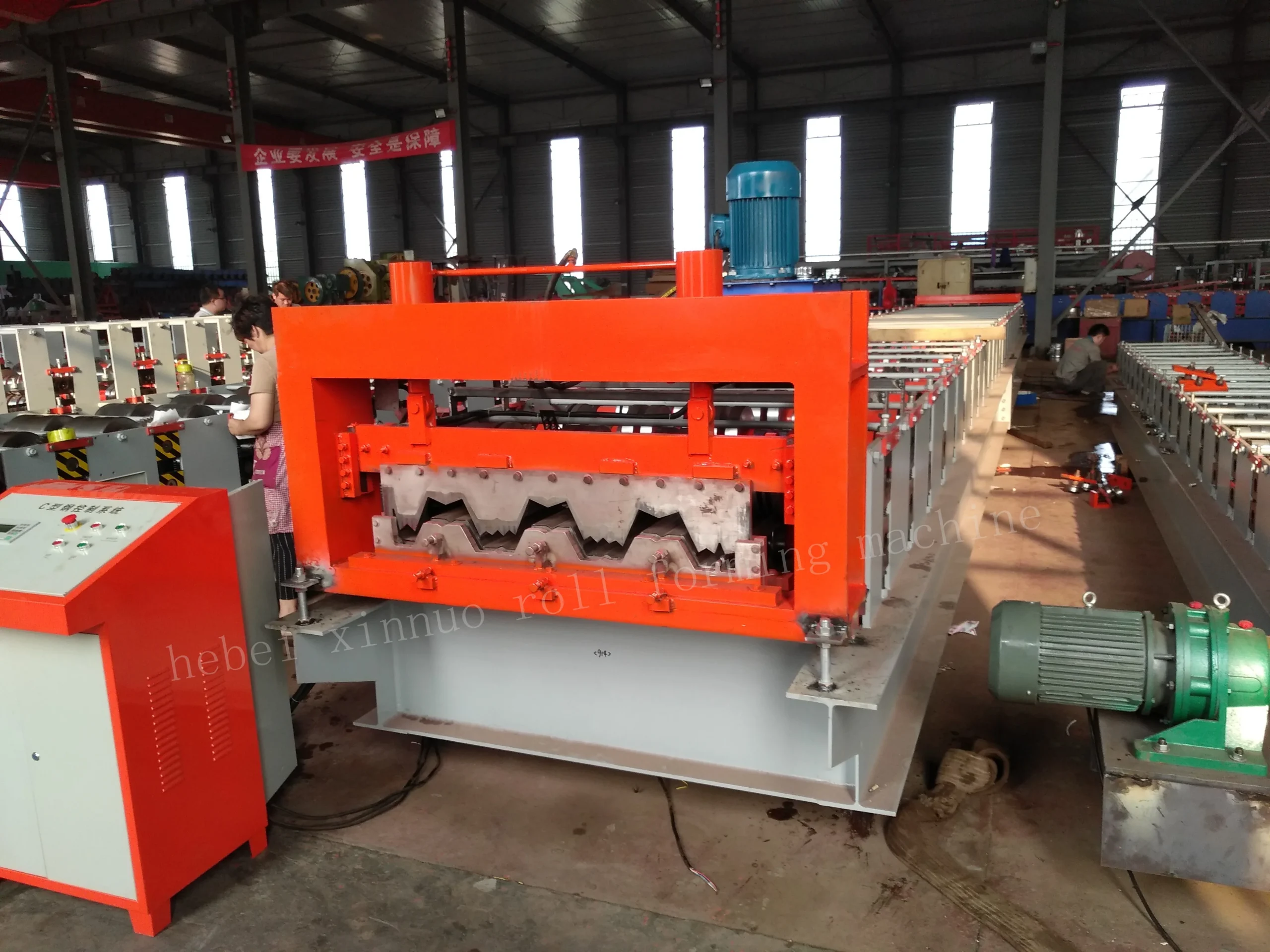

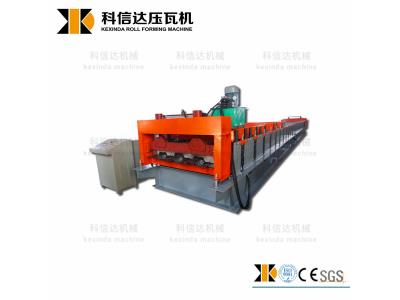

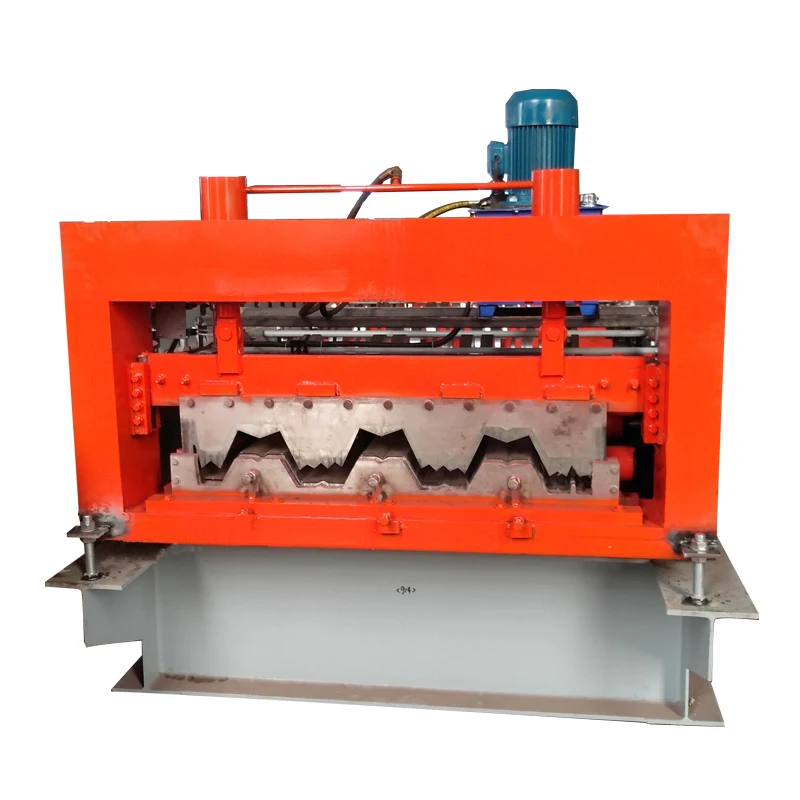

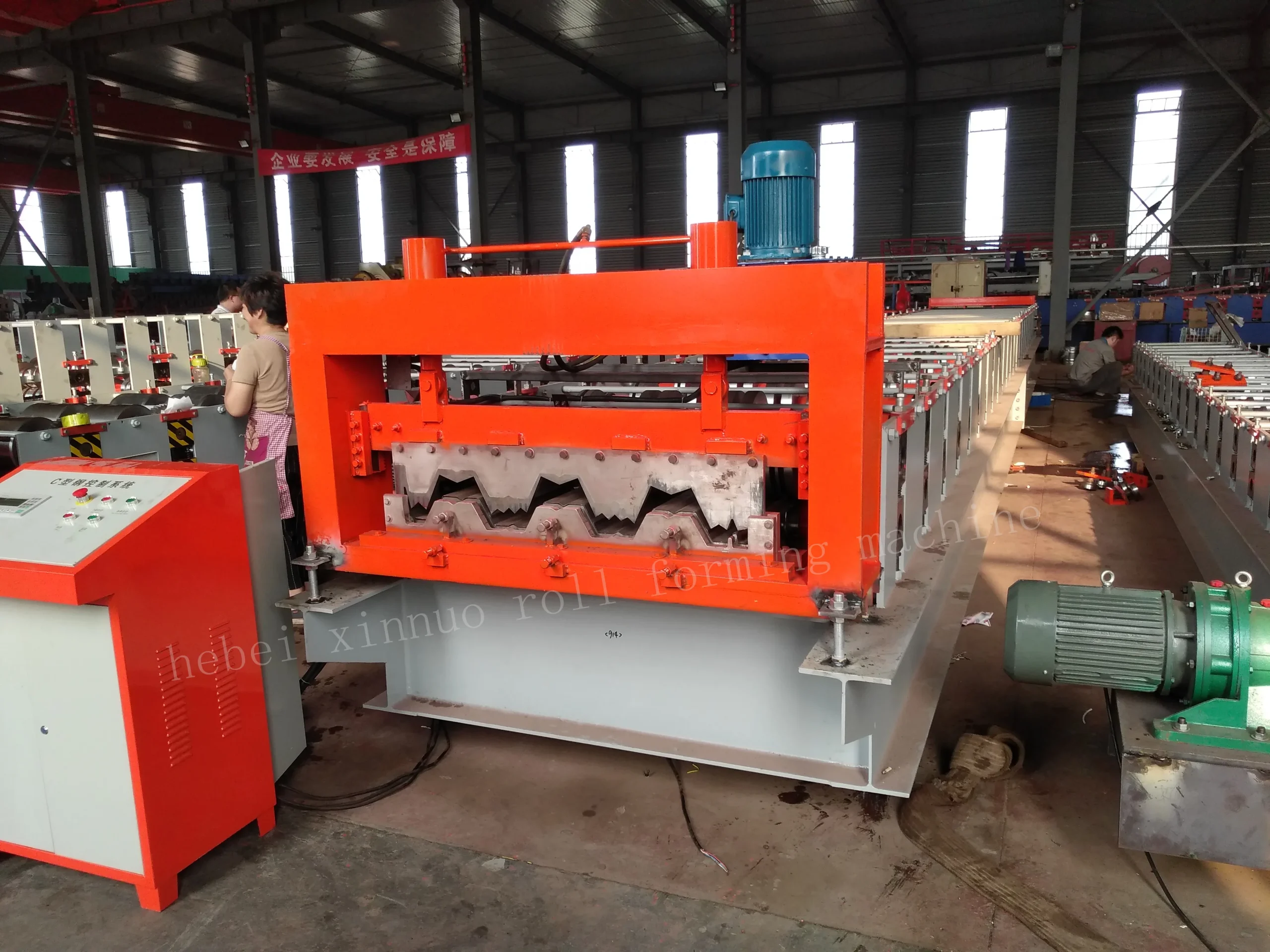

The KXD Hot Sales Floor Decking Panel Cold Rolling Forming Machine is a state-of-the-art solution designed for the efficient production of metal decking panels. This comprehensive machine features a manual uncoiler, guiding platform, main roll forming machine, electro-motor, cutting device, hydraulic station, PLC control, and a supporter table. Built with advanced technology, it ensures high precision and reliability in producing decking panels suitable for various construction needs.
Specifications
| Attribute | Details |
|---|---|
| Control System | NC-PLC Colored Touch Screen |
| Main Frame | 400mm H-Beam |
| Main Power | 18.5 kW |
| Pump Power | 5.5 kW |
| Power Supply | 380V, 3-Phase, 50Hz or any |
| Forming Speed | 10 m/min |
| Roll Station | 24 stands |
| Shaft Diameter | 90 mm |
| Hydraulic Pressure | 13-16 MPa |

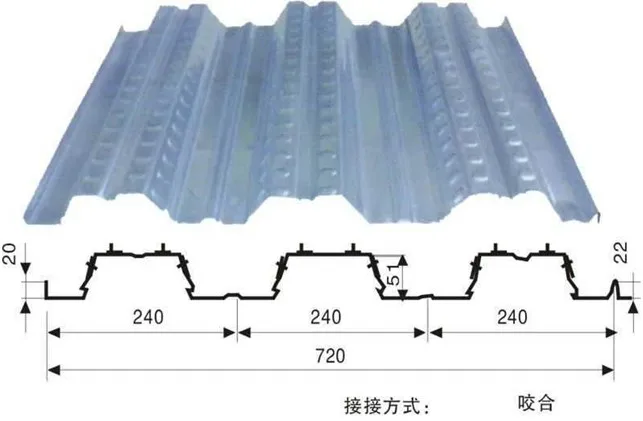

| Effective Width | 720 mm |
| Feeding Thickness | 0.8-1.3 mm |
| Feeding Width | 1000 mm |
| Side Panel Thickness | 22 mm |
| Cutter Standard | Cr12 |
| Roller Standard | 45# Steel plating Chrome with heat treatment |
| Cr-Plating Size | 0.05 mm |
| Overall Size | 14000×2000×1550 mm |
| Total Weight | 14 T |
Additional Information
All technical parameters can be customized according to user needs. The machine comes with a 12-month guarantee. If any part is damaged due to operating errors, the buyer is responsible for shipping fees. After-sale service includes sending a technician to the buyer’s location, with costs for visa, tickets, accommodation, and a daily salary of $100 borne by the buyer.
