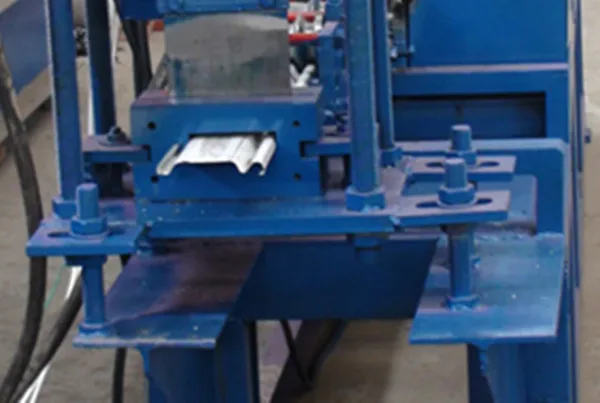

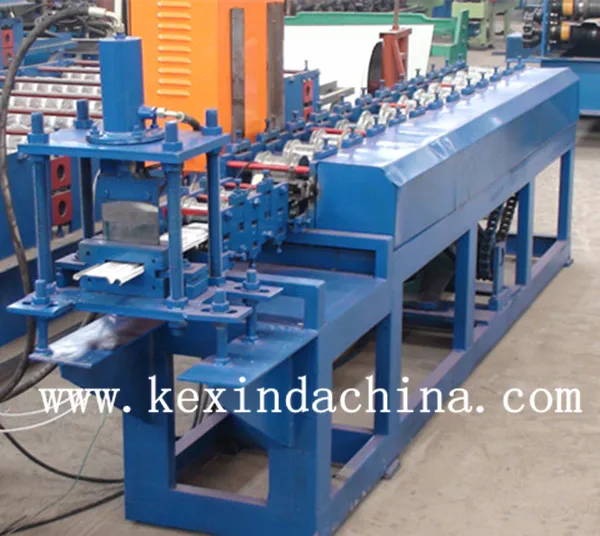

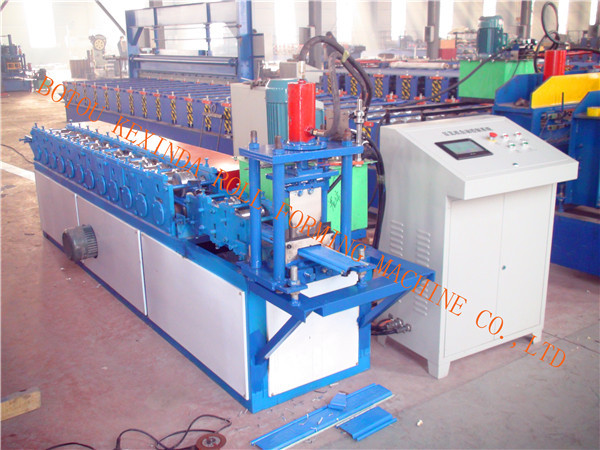

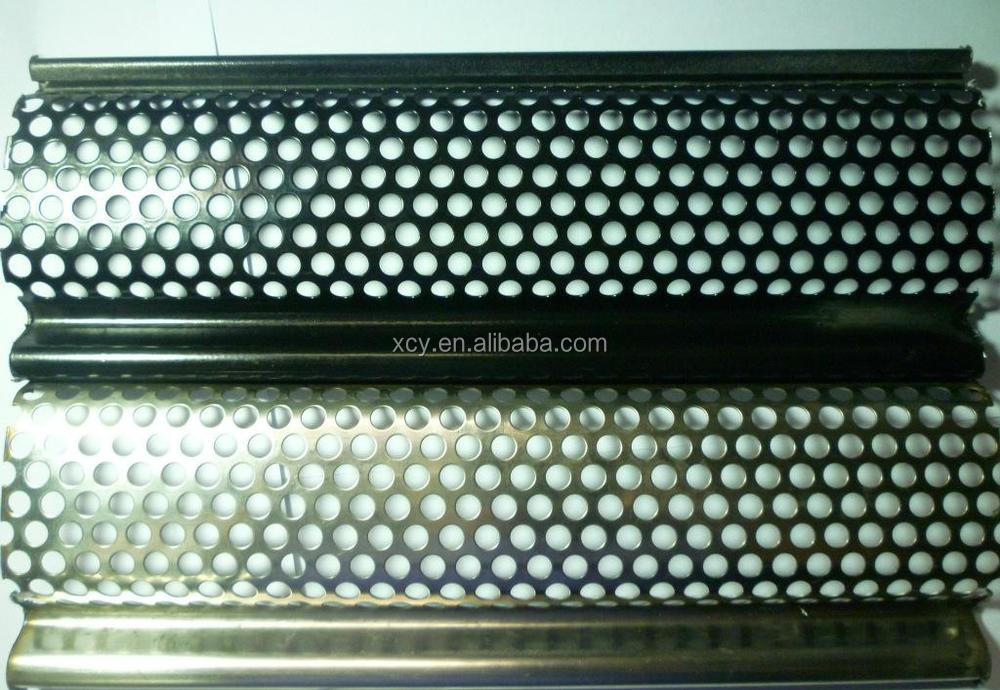

KXD Roller Shutter Door Slat Roll Forming Making Machine Perforated
Inquire NowDescription
The KXD Roller Shutter Door Slat Roll Forming Making Machine is engineered for producing high-quality steel panel tiles for roofs and walls. This machine is ideal for temporary building sites, steel structure workshops, and other public buildings, offering a fast construction speed. With its aesthetically pleasing design and durable use, it stands out as a reliable choice for metal sheet cold roll forming. The machine features high-speed production capabilities, excellent performance, and cost-saving efficiency. The precision of the forming rollers is achieved through advanced CAD design and CNC machining, followed by vacuum heat treatment, ensuring durability and resistance to wear while avoiding deformation.
Specifications
| Parameter | Description |
|---|---|
| Main Motor Power | 3kw, 3 phase |
| Hydraulic Motor Power | 3kw |
| Hydraulic Pressure | 10-12MPa |
| Voltage | 380V /3phase/ 50 HZ (or as per requirement) |
| Control System | PLC Delta Inverter |
| Main Frame | 300mm H-Beam |
| Backboard Thickness | 14mm |
| Chain Size | 20mm |
| Feeding Material | Color steel coils |
| Feeding Thickness | 0.3-1.2mm |
| Productivity | 8-12m/min |
| Roll Station | 11 |
| Roller Diameter | 70mm |
| Roller Material | 45# steel |
| Cutter Material | Cr12, quenched |
| Cr-Plating Size | 0.05mm |
| Overall Size | 3000×800×1000mm |
| Total Weight | 2T |
Additional Information
We send technicians to your country to assist with machine installation. The buyer is responsible for all associated costs, including visa, round-trip ticket, suitable accommodation, and a daily salary of 100 USD.
Botou Kexinda Roll Forming Machine Co., Ltd. specializes in various types of roll forming machines, including intelligent automatic production lines, C&Z shape purline machines, and more.
Images
