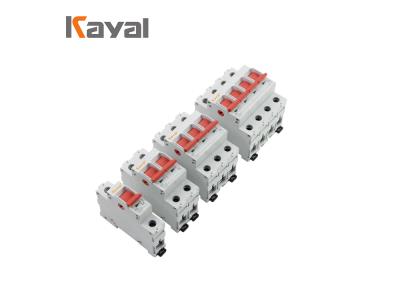

L7 AC MCB




KAYAL L7 Mcb is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 125Amp.
The product provides protection against voerload and short circuit to electric circuits and equipments in household and commercial installation. MCB is also used as non-frequent changeover of electric circuits.
Features
1. Protection against both overload and short circuit
2. High short-circuit capacity
3. Contact position indication
4. Applicable to terminal and pin/fork type busbar connection
5. Easy mounting onto 35mm DIN rail

Pole No

1,2,3,4

Rated voltage

AC 230/400V

Rated current(A)

1,2,3,4,6,10,13,16,20,25,32,40,50,63

Tripping curve

B,C,D

Rated short-circuit capacity(lcn)

6KA,10KA

Rated frequency

50/60Hz

Energy limiting class

3

Rated impulse withstand voltage

6.2kV

Electro-mechanical endurance

≥ 6000

Contact position indication

Connection terminal

Screw terminal / Pillar terminal with calmp

Connection capacity

Rigid conductor up to 25mm2

Fastening torque

2.0Nm

Installation

On symmetrical DIN rail 35mm / Panel mounting
