large flow centrifugal pump
Inquire NowDescription

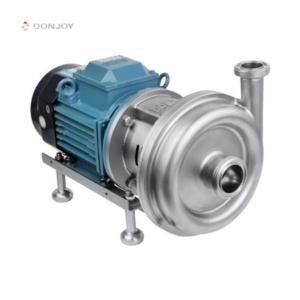

The MLX series large flow centrifugal pump is engineered for high efficiency and superior performance in transporting solid particles and low-viscosity weak corrosive materials. Featuring an innovative open impeller design, this pump enhances the overflow performance of low-viscosity particulate materials while minimizing shear and damage to the product. Constructed from durable 304/316L stainless steel, the pump is ideal for applications such as juice fermentation broth, wort, and food and beverage juice jams. It is also suitable for general industrial water and drinking water treatment, ensuring reliability across diverse environments.
Specifications
| Attribute | Details |
|---|---|
| Flow Rate | 100m³ – 1000m³ |
| Head | 40 H/M |
| Temperature Range | -20 to 140 °C |
| Power | 11kW – 130kW |
| Material | 304 / 316L Stainless Steel, ASME BPE 316L |
| Surface Treatment | ≤ Ra0.4μm |
| Seal Type | Single machine seal |
| Connection Type | Flanged, Aseptic flanged |
| Certifications | 3-A-02-10, MD/06/42-EC, FDA 177.2600, USP CLASS-II, EG/VO1935/2004 |
Additional Information
For optimal performance, ensure regular maintenance of the pump and follow the manufacturer’s guidelines regarding installation and operation. This will help prolong the lifespan of the equipment and maintain its efficiency.
