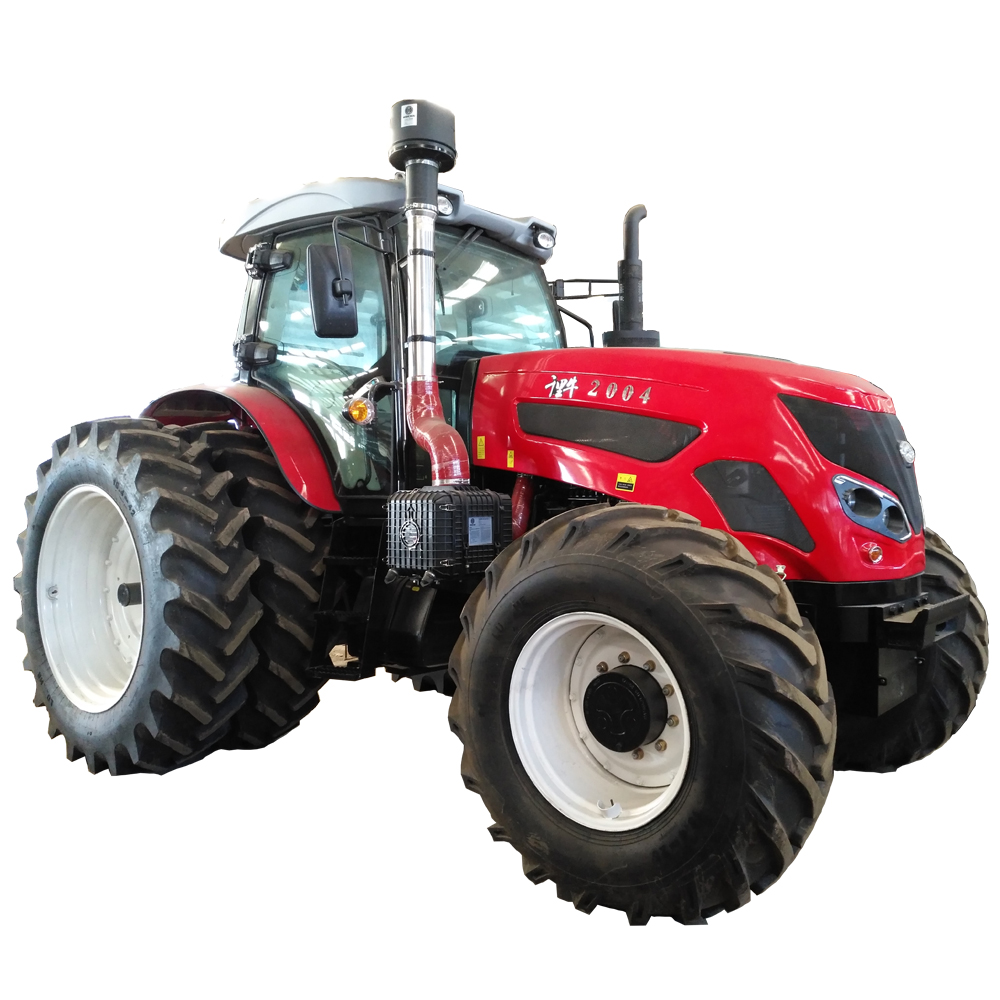

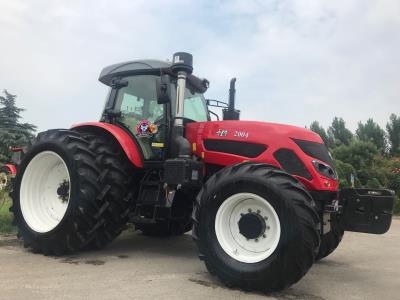

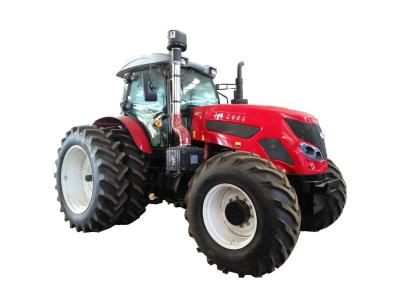

Large QLN2004 Tractor
Inquire NowDescription
The QLN2004 Tractor is a robust and efficient agricultural machine powered by a renowned WEICHAI engine. Designed for optimal performance, this tractor features a low fuel consumption rate and high economic efficiency, making it an ideal choice for farmers looking to enhance productivity. It boasts a LUK 15-inch double-acting clutch and a versatile 16F+16R Shuttle Creeper Shift system, ensuring smooth operation across various terrains.
This powerful tractor is equipped with a 260 L fuel tank, allowing for extended operation without frequent refueling. Its PTO speed of 540/1000 rpm and III Rear Mount 3-point linkage make it suitable for a wide range of agricultural attachments, enhancing its versatility on the farm.
Specifications
| Attribute | Details |
|---|---|
| Model | QLN2004 |
| Dimensions (L×W×H mm) | 5420 × 2490 × 3180 |
| Wheel Tread (mm) | Front: 1960, Rear: 1900 |
| Min. Ground Clearance (mm) | 425 |
| Dry Mass (kg) | With Cab: 6700 |
| Engine Brand | WEICHAI |
| Engine Model | Directly Injection Vertical Water Cooled 4-stroke |
| Number of Cylinders | 6 |
| Cooling System Type | Water Cooled |
| Rated Power (kW) | 147.5 |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 260 |
| Clutch | LUK 15in., dual-function, independent, dry clutch |
| Gear Box | F16+R16 |
| Braking System | Static hydraulic pressure, double disc |
| Front Tyre | 16.9-28 |
| Rear Tyre | 18.4-42 |
| Steering System | Hydraulic Steering |
Additional Information
This tractor is designed to tackle demanding agricultural tasks with ease. Its advanced features ensure reliability and efficiency, making it a valuable asset for any farming operation.
