Latching electromagnet solenoid coil for high voltage switchgear assembly
Inquire NowDescription
The latching electromagnet solenoid coil is a vital component designed for high voltage switchgear assemblies, ensuring reliable operation and safety. This solenoid coil is specifically engineered to act as a locking mechanism, preventing false actions in electrical equipment. When the armature reaches the end of its travel, it requires a working voltage of at least 65% of the rated voltage to engage the locking and releasing functions. This powerful electromagnet operates continuously when energized, making it an essential element in controlling high voltage equipment like circuit breakers and switchgear.
This solenoid coil boasts low energy consumption while maintaining efficiency, showcasing its suitability for modern electrical applications. Rated for AC/DC 220V, it is primarily used in FMNS low voltage drawout switchgear accessories. Its design prioritizes safety and reliability, ensuring that locking mechanisms function correctly to prevent misoperation.

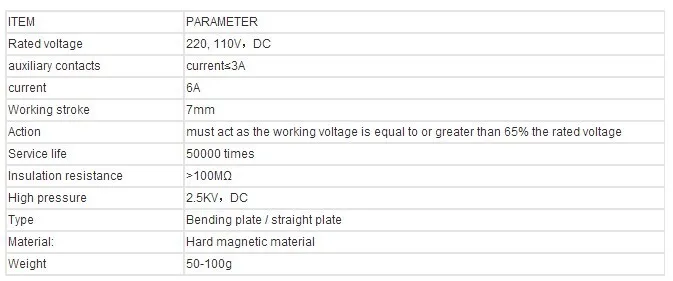

Specifications
| Attribute | Details |
|---|---|
| Rated Voltage | AC/DC 220V |
| Temperature Range | -5°C to 40°C, daily mean not exceeding 35°C |
| Humidity Conditions | Not exceeding 50% at 40°C; higher relative humidity allowed at lower temperatures (up to 90% at 20°C) |
| Altitude | Lower than 2000m |
| Earthquake Resistance | Up to 7 degrees intensity |
| Protection Degree | IP30, IP41 |
Additional Information
- This series of latching electromagnets is designed for indoor high voltage switchgear cabinet doors, providing essential locking capabilities.
- It is crucial for ensuring proper interlocking functions to prevent accidental misoperation.
