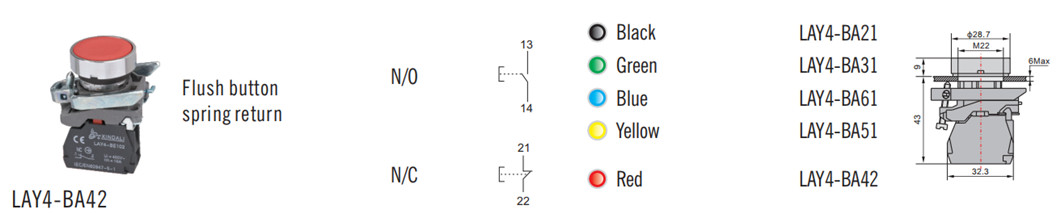

LAY4-BA42 push flush button control box switch for lifting push-button switch

Inquire Now

Description

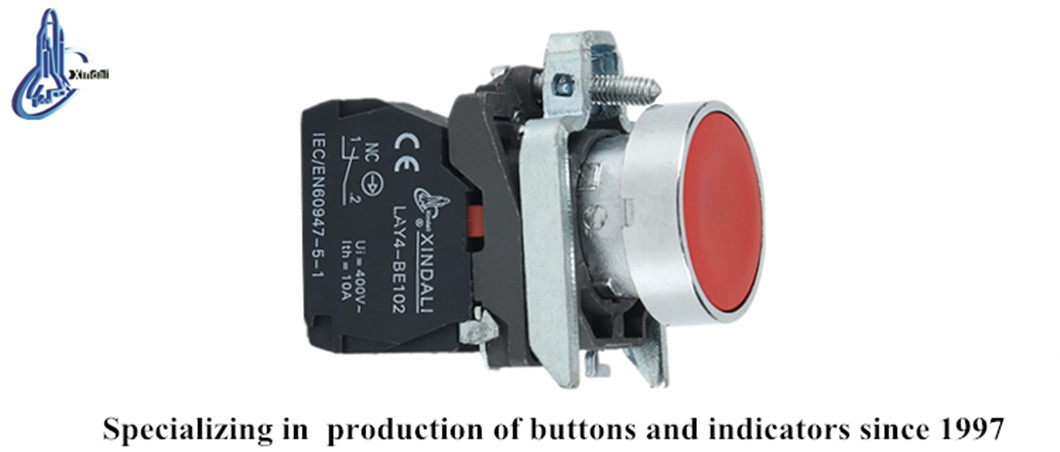

The LAY4-BA42 Push Flush Button Control Box Switch is a high-performance solution designed for controlling AC and DC circuits. This versatile push-button switch operates effectively with AC voltages of up to 660V at 50Hz or 60Hz, and for DC voltages below 400V. Ideal for interlocking and signaling applications, it integrates seamlessly into various electrical systems. Crafted from durable zinc alloy and top-grade anti-flame plastic, the switch enhances safety and longevity. The contacts are made from special silver alloy, ensuring excellent resistance to electrical erosion. Additionally, the accompanying signal lamp series is designed for electrical appliances with AC voltages up to 380V and DC up to 380V, serving as reliable indicators for warning and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are certified CE, ISO9001, ROHS, and UL.

Specifications

Parameter Push Button Signal Lamp
Rated Insulation AC 600V (50Hz/60Hz) Insulation Resistance
Conventional Heating Current 10A Contact Resistance
Insulation Resistance ≥50MΩ Withstand Voltage
Contact Resistance ≤25MinΩ Voltage Wave
Mechanical Life 100 x 10,000 pushes Brightness
Electrical Life 500 x 10,000 pushes Continuous Working Life

Additional Information

Ensure proper installation to maximize performance. Regularly check for any signs of wear or damage, and replace as necessary to maintain functionality. The switch is designed for continuous use with a lifespan of approximately 10 x 10,000 hours under normal operating conditions.
