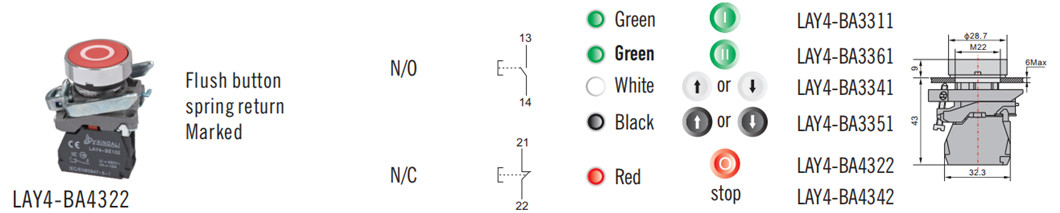

LAY4-BA4322 spring return marked electronic switch button elevator button
Inquire NowDescription

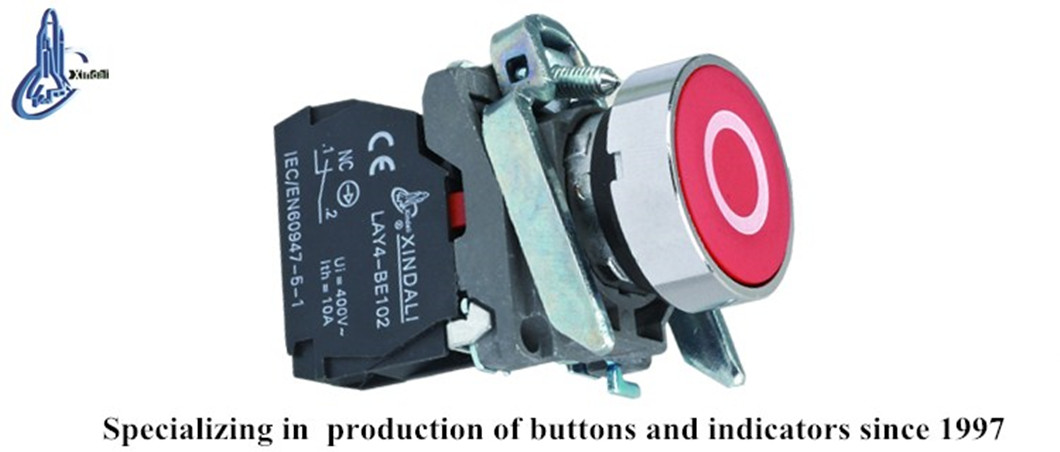

The LAY4-BA4322 Spring Return Marked Electronic Switch Button is an essential component for elevator systems, designed with reliability and safety in mind. This push button series effectively controls circuits of AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V. It is ideal for interlocking purposes and controlling signals, ensuring seamless operation in various applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, the button features a contact made from a special silver alloy to provide exceptional resistance to electrical erosion. Additionally, its signal lamp series supports electrical appliance circuits of AC voltage up to 380V at 50Hz and DC voltage below 380V, making it perfect for indicating, warning, and emergency signals. The product meets international standards including GB/T14048.1 and IEC60947-5-1, and is CE, ISO9001, ROHS, and UL certified.
Specifications
| Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp | |||
|---|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ | |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ | |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage | AC 2.5KV/min | |
| Contact Resistance | ≤25MinΩ | Voltage Wave | ±20% | |
| Mechanical Life | 100×10000 | Pushbutton | Brightness | 60cd/m² |
| Electrical Life | 500×10000 | Pushbutton | 25×10000 | Selector Switch |
| Continuous Working Life | 10x10000h | |||
Additional Information
For optimal performance, ensure the LAY4-BA4322 is installed in accordance with manufacturer guidelines and standard electrical safety practices. This product is designed for long-lasting use, making it a reliable choice for various electrical applications.
