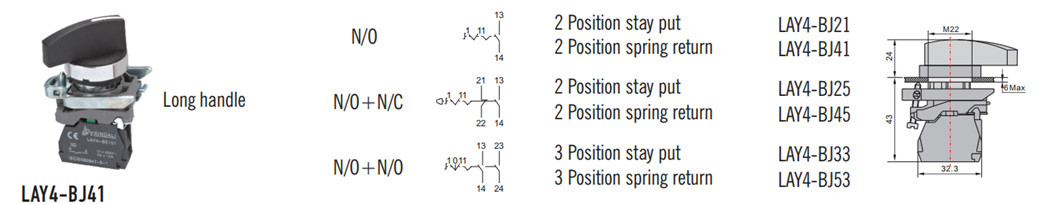

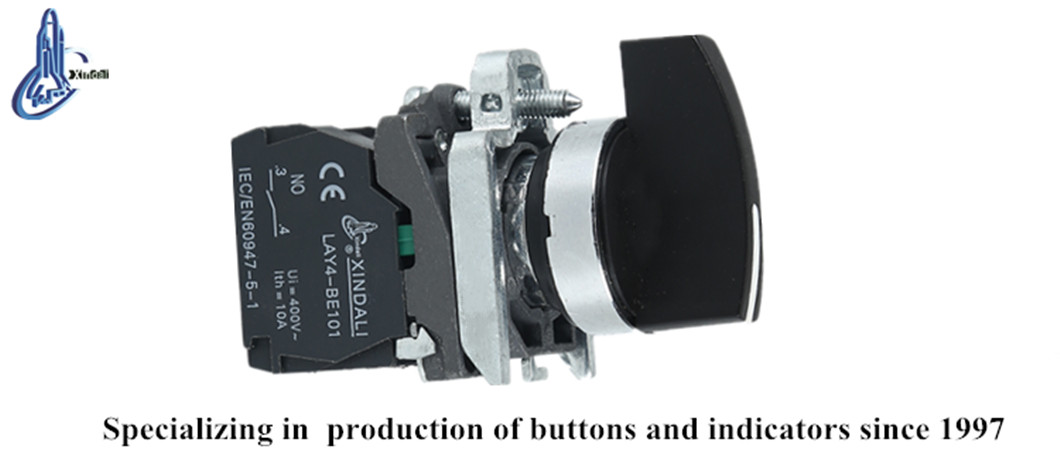

LAY4-BJ41 metal or switch push button handle metal push button switch
Inquire NowDescription
The LAY4-BJ41 Metal Push Button Switch is an innovative solution designed for controlling circuits with AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V. Crafted with precision, the main body is made of durable zinc alloy complemented by high-grade anti-flame plastic, ensuring longevity and safety in operation. This versatile switch is ideal for a variety of applications, including signal control and interlocking purposes. The series also features a special silver alloy contact, which enhances resistance to electrical erosion, making it dependable in demanding environments. Suitable for electrical appliances circuits of AC voltage up to 380V at 50Hz and DC voltage below 380V, this push button switch is perfect for indicating signals, warning signals, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are certified CE, ISO 9001, ROHS, and UL.
Specifications
Feature | Push Button | Signal Lamp |
---|---|---|
Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
Conventional Heating Current | 10A | Contact Resistance |
Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
Contact Resistance | ≤25MinΩ | Voltage Wave |
Mechanical Life | 100 x 10,000 pushes | Brightness |
Electrical Life | 500 x 10,000 pushes | Continuous Working Life |
10 x 10,000 hours |
Additional Information
- Compliance: CE, ISO 9001, ROHS, UL certified
- Material: Zinc alloy and high-grade anti-flame plastic
- Ideal for: Indicating signals, warning signals, emergency signals
