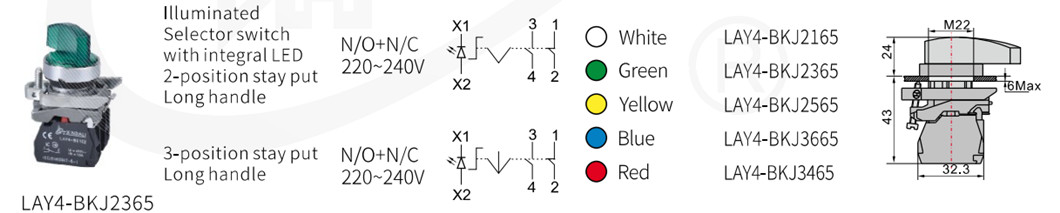

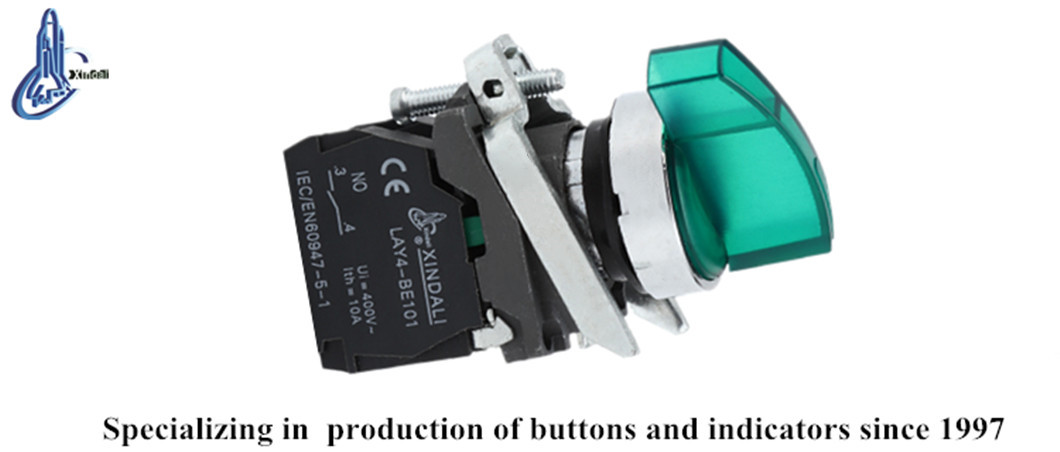

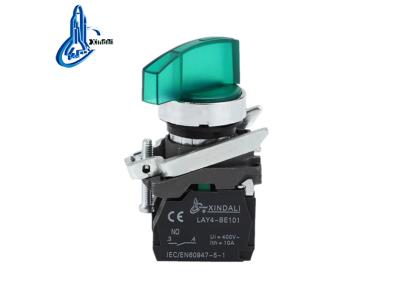

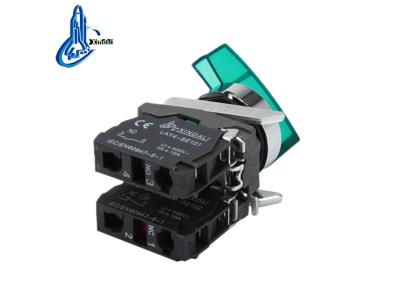

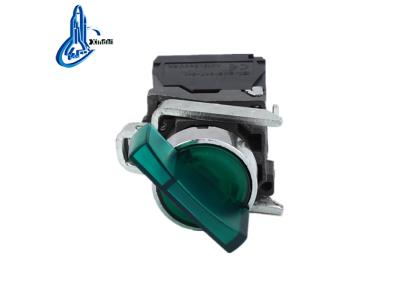

LAY4-BKJ2365 long handle led indicator handle 3 position or push button
Inquire NowDescription
The LAY4-BKJ2365 Long Handle LED Indicator Handle is designed for efficient control and signaling applications. Capable of operating in three positions or as a push button, this versatile device is suitable for AC voltage circuits up to 660V/50Hz or 60Hz, and DC voltage circuits below 400V. It is expertly crafted with a durable zinc alloy body and high-grade anti-flame plastic, ensuring longevity and safety. The special silver alloy contacts enhance resistance to electrical erosion, making it reliable for various signaling purposes, including indications, warnings, and emergencies. With compliance to GB/T14048.1 and IEC60947-5-1 standards, this product boasts CE, ISO9001, ROHS, and UL certifications, guaranteeing top-notch quality and performance.
Specifications
| Main Technical Parameter | Button Parameter | Signal Lamp Parameter |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25 MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 Pushbutton | Brightness |
| Electrical Life | 500×10000 Pushbutton | Continuous Working Life |
Additional Information
- Ideal for controlling signals and interlocking purposes.
- Brightness of the indicator: 60cd/m².
- Continuous working life duration: 10×10000 hours.
