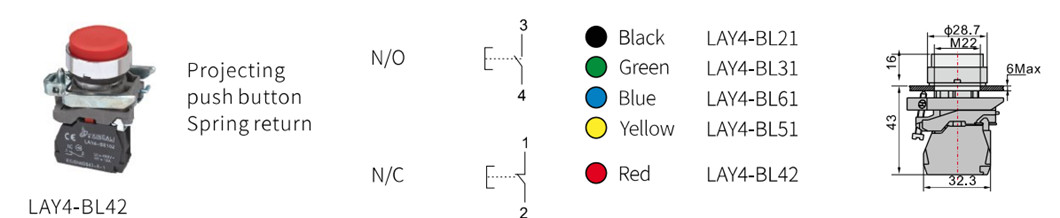

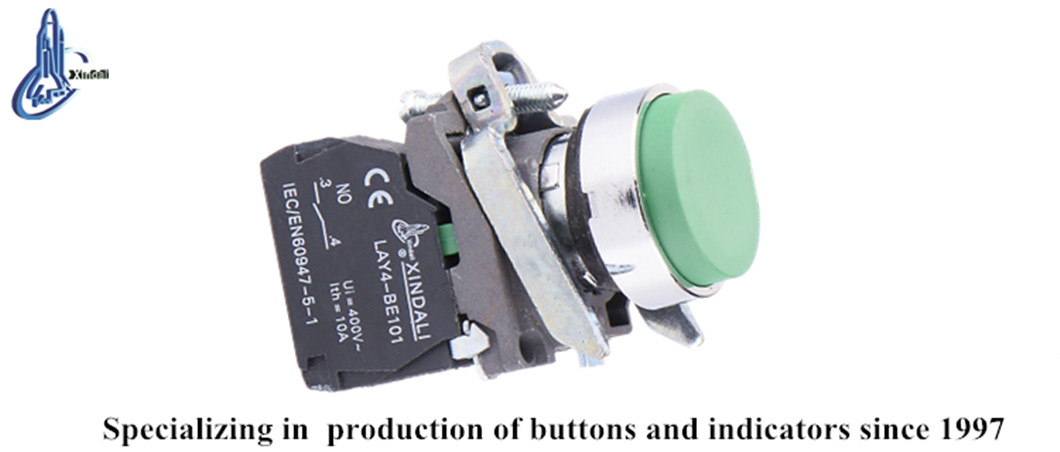

The LAY4-BL31 Metal Convex Head Push Elevator Push Button Switch is a robust and reliable solution designed for controlling a variety of electrical circuits. This push button switch is engineered to handle AC voltage levels of up to 660V (50Hz or 60Hz) and DC voltage up to 400V. Ideal for interlocking and signaling applications, the switch features a durable body made of zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The contacts are crafted from a special silver alloy that resists electrical erosion, providing enhanced reliability over time. With its certification in compliance with GB/T14048.1 and IEC60947-5-1 standards, this switch meets rigorous international safety and quality criteria, making it suitable for various industrial applications.
Specifications
Parameter
Push Button
Signal Lamp
Rated Insulation
AC 600V (50Hz/60Hz)
Insulation Resistance
≥50MΩ
Conventional Heating Current
10A
Contact Resistance
≤25MinΩ
Mechanical Life
100×104 pushes
50×104 selector switch
Brightness
60cd/m2
Electrical Life
500×104 pushes
25×104 selector switch
Continuous Working Life
10×104 hours
Pf Withstand Voltage
AC 2.5KV/min
Voltage Wave
{
