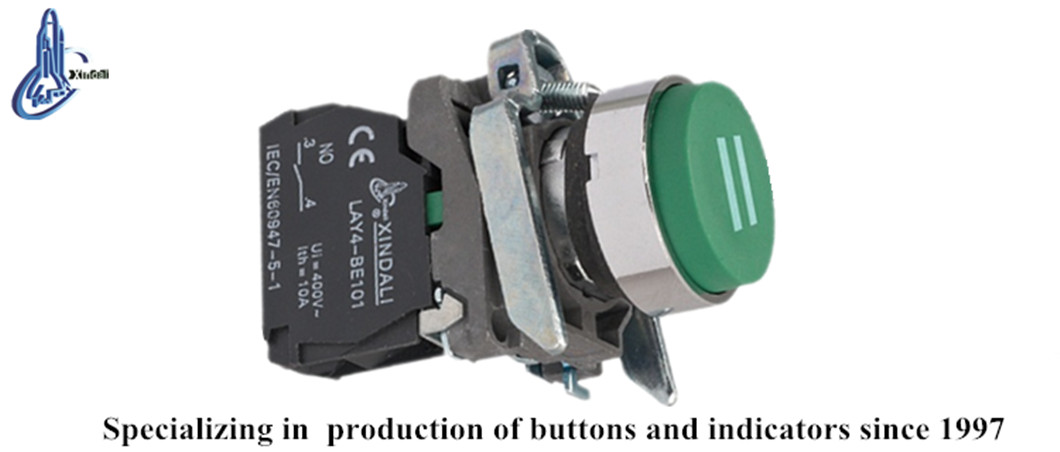

LAY4-BL3361 convex push button switch marked push button 22mm green button

Inquire Now

Description

The LAY4-BL3361 convex push button switch features a striking green button with a diameter of 22mm, designed for optimal accessibility and visibility. This robust switch is engineered for controlling circuits with AC voltage up to 660V and AC frequencies of 50Hz or 60Hz, as well as DC voltages below 400V. With a durable construction comprising zinc alloy and high-grade anti-flame plastic, the push button ensures reliability and safety. The contact utilizes a special silver alloy, significantly enhancing its resistance to electrical erosion.

This push button switch is ideal for applications involving signaling, interlocking, and general control, and is compatible with various electrical systems. It also adheres to industry standards such as GB/T14048.1 and IEC60947-5-1, securing its place among CE, ISO9001, ROHS, and UL certified products.

Specifications

Parameter Push Button Signal Lamp
Rated Insulation AC 600V (50Hz/60Hz) Insulation Resistance
Conventional Heating Current 10A Contact Resistance
Insulation Resistance ≥50MΩ Pf Withstand Voltage
Contact Resistance ≤25MinΩ Voltage Wave
Mechanical Life 100×10,000 pushbutton 50×10,000 selector switch
Electrical Life 500×10,000 pushbutton 25×10,000 selector switch
Continuous Working Life 10×10,000h
Brightness 60cd/m²

Additional Information

  • Ideal for indicating signals, warning signals, and emergency signals.
  • Designed for reliable performance in a variety of electrical applications.
