LAY4-BS542 mushroom head latching push emergency stop button cover image
Inquire NowDescription

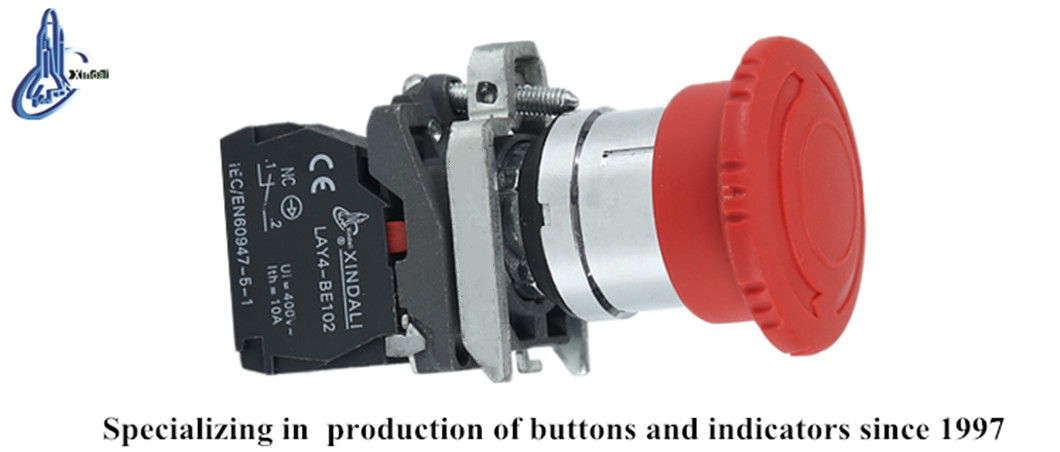

The LAY4-BS542 Mushroom Head Latching Push Emergency Stop Button is an essential safety device designed for controlling circuits with AC voltage up to 660V/50Hz or 60Hz and DC voltage below 400V. This robust push button is ideal for signal control and interlocking applications, ensuring reliable performance in various environments. Constructed with a sturdy zinc alloy body and high-grade flame-resistant plastic, it features contacts made from a special silver alloy for superior anti-electrical erosion. The associated signal lamp series operates effectively for electrical appliances with AC voltage up to 380V/50Hz and DC voltage below 380V, making it perfect for indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are CE, ISO9001, ROHS, and UL certified, ensuring maximum safety and reliability.
Specifications

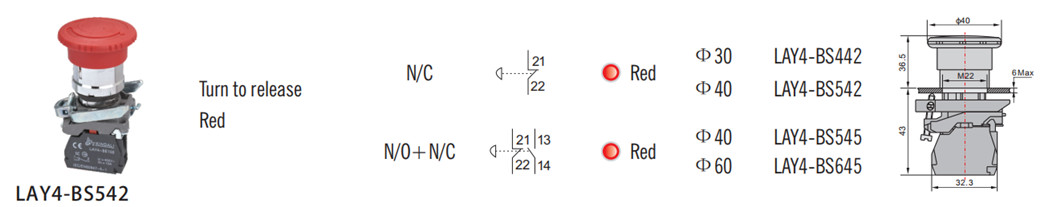

| Main Technical Parameters | Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp | |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10000 pushbutton | Brightness | 60cd/m² |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life | 10x10000h |
Additional Information
- Compliant with safety standards: CE, ISO9001, ROHS, and UL certified.
- Ideal for various applications including industrial controls and emergency signals.
