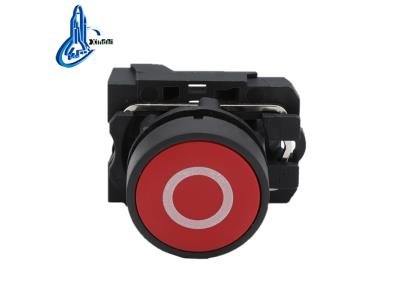

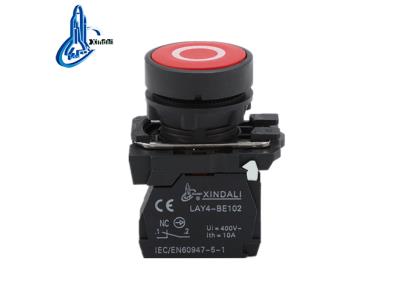

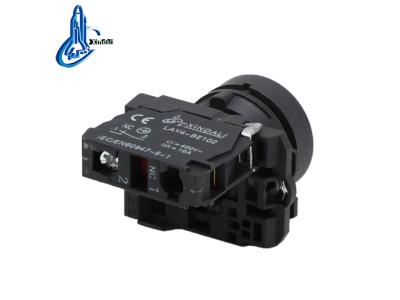

LAY4-EA4322 plastic push button electrical symbol push button switch
Inquire NowDescription
The LAY4-EA4322 plastic push button electrical symbol switch is designed for efficient control in electrical circuits, operating at AC voltages of up to 660V (50Hz or 60Hz) and DC voltages below 400V. This versatile push button serves both signaling and interlocking functions, making it ideal for various electrical applications. Crafted with a robust zinc alloy frame and high-grade anti-flame plastic, the switch features specialized silver alloy contacts that provide exceptional resistance to electrical erosion. The corresponding signal lamp series is suitable for electrical circuits operating at up to 380V (50Hz) and below 380V DC, functioning effectively as indicating, warning, or emergency signals. All products meet GB/T14048.1 and IEC60947-5-1 standards and are certified with CE, ISO 9001, ROHS, and UL standards, ensuring high quality and reliability.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Insulation Resistance | ≥50MΩ | Contact Resistance |
| Conventional Heating Current | 10A | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100 x 10,000 pushes | Brightness |
| Electrical Life | 500 x 10,000 pushes | Continuous Working Life |
Additional Information
For optimal performance, ensure the switch is installed in accordance with electrical standards and used within its specified voltage and current limits. Regular maintenance checks are recommended to ensure longevity and reliability.
