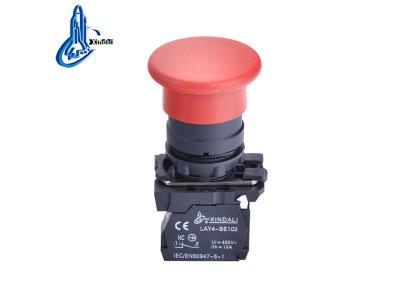

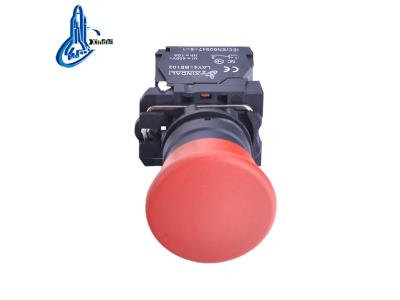

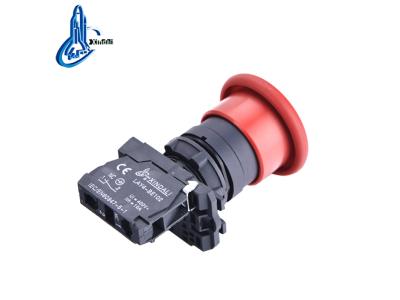

LAY4-EC42 Large supply reasonably priced small durable urgent push button switch
Inquire NowDescription
The LAY4-EC42 is a versatile and durable push button switch designed for urgent control applications. This small yet robust switch is suitable for various electrical circuits, efficiently handling AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V. Its primary functions include controlling signals and enabling interlocking operations. Crafted from high-quality zinc alloy and flame-retardant plastics, the switch incorporates a special silver alloy for its contacts, ensuring high resistance to electrical erosion. This series also features a signal lamp ideal for use in electrical circuits up to 380V AC and 380V DC, serving as an effective indicating, warning, or emergency signal. Compliant with GB/T14048.1 and IEC60947-5-1, the LAY4-EC42 is certified CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100 x 10,000 pushbutton | Brightness |
| Electrical Life | 500 x 10,000 pushbutton | Continuous Working Life |
Additional Information
- Ideal for use in various applications requiring urgent control and signaling.
- Compliance with international safety and quality standards ensures reliability in operation.
