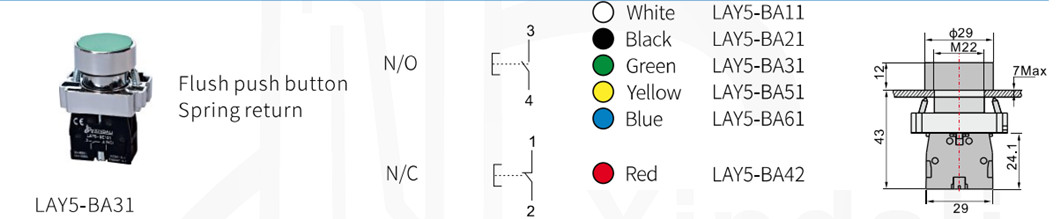

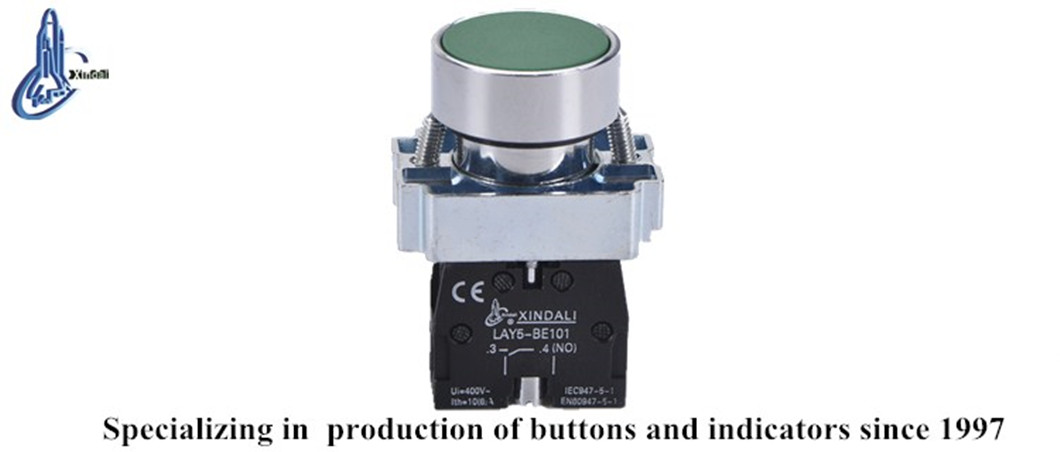

LAY5-BA31 metal flush green spring return push button for elevators
Inquire NowDescription
The LAY5-BA31 metal flush green spring return push button is an essential component for elevator control systems. Designed for reliability and safety, this push button operates within AC voltage circuits up to 660V at 50Hz or 60Hz and DC voltage of up to 400V. Its robust construction features a zinc alloy body and high-grade anti-flame plastic, ensuring durability in high-demand environments. The contact is made from a special silver alloy, offering exceptional resistance to electrical erosion. This push button is ideal for controlling signals and interlocking purposes in various electrical appliances. Additionally, its signal lamp series supports AC voltage circuits up to 380V, suitable for indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are certified CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Mechanical Life | 100×10000 pushes | Brightness |
| Electrical Life | 500×10000 pushes | Continuous Working Life |
| Insulation Resistance | ≥50MΩ | PF Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
Additional Information
- Compliance with GB/T14048.1 and IEC60947-5-1 standards.
- CE, ISO9001, ROHS, and UL certified for safety and reliability.
