LAY5-BA3351 metal electric switch symbol image arrow push button switch
Inquire NowDescription

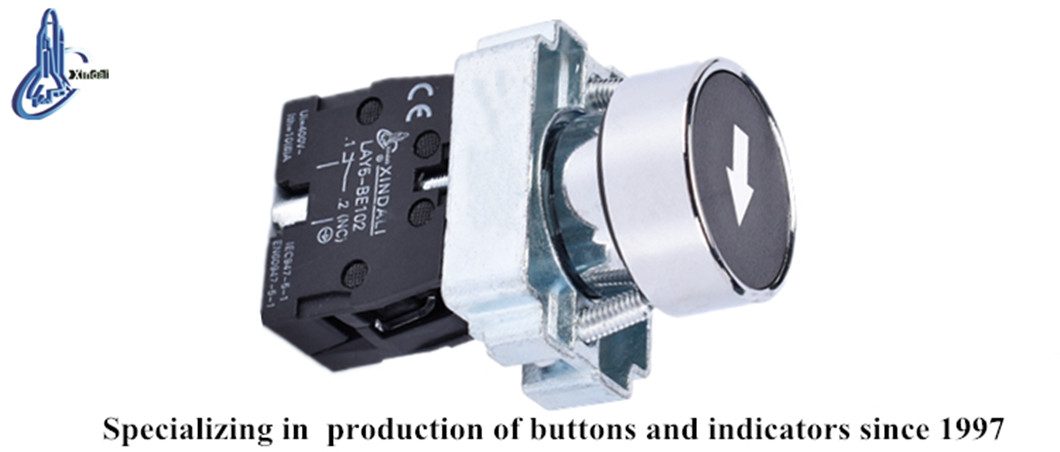

The LAY5-BA3351 metal electric switch is an advanced push button switch designed for reliable control in various electrical applications. Crafted with a robust zinc alloy body, it ensures durability and efficiency in controlling circuits of AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V. This switch is ideal for signal control, interlocking, and indication purposes, making it a versatile component in any electrical system.
With its high-grade anti-flame plastic and special silver alloy contacts, the LAY5-BA3351 provides excellent electrical erosion resistance, ensuring long-lasting performance. Additionally, the integrated signal lamp is suitable for AC voltage circuits up to 380V and DC circuits below 380V, making it a perfect choice for warning and emergency signals in various environments. Complying with standards such as GB/T14048.1 and IEC60947-5-1, this product is certified CE, ISO9001, ROHS, and UL, ensuring it meets high safety and quality standards.
Specifications

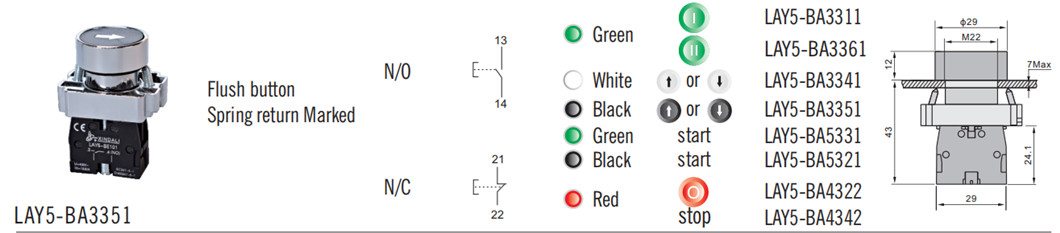

| Parameter | Button Specifications | Signal Lamp Specifications |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
For optimal performance, ensure that the LAY5-BA3351 switch is installed according to the manufacturer’s guidelines. Regular maintenance checks are recommended to ensure continued functionality and safety. This product is designed for long-term use, with a mechanical life expectancy of up to 100,000 operations under normal conditions.
