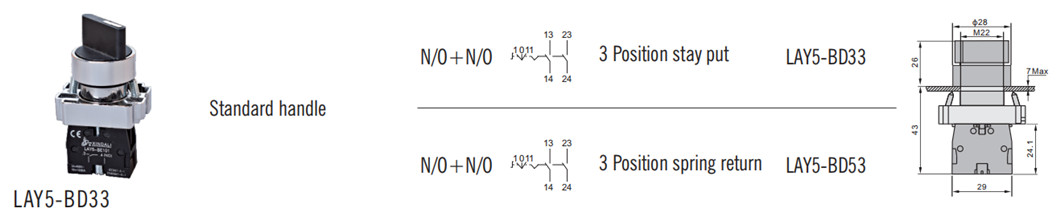

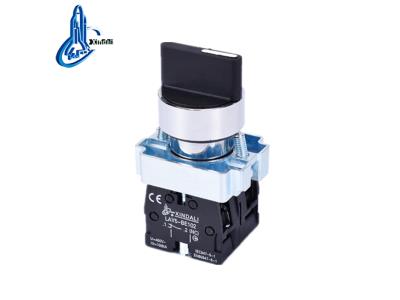

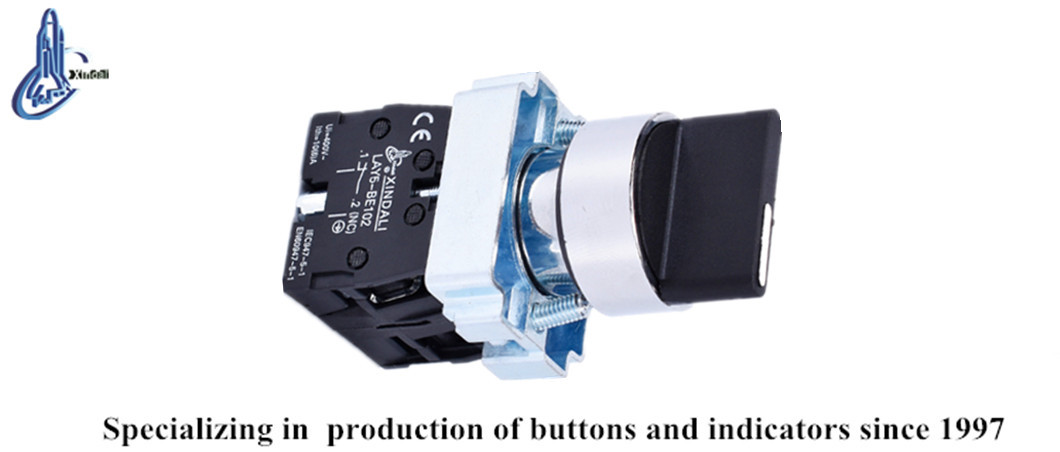

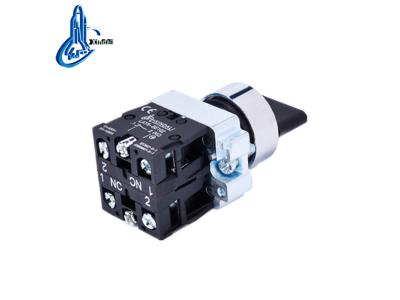

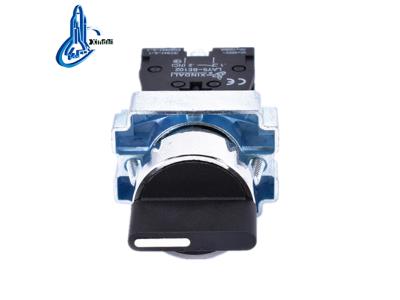

LAY5-BD33 22mm 220v 3 position metal or push button control switch
Inquire NowDescription
The LAY5-BD33 is a versatile 22mm 220V 3-position metal or push button control switch designed for various electrical applications. Ideal for controlling circuits of AC voltage up to 660V/AC50Hz or 60Hz and DC voltage below 400V, this switch excels in providing reliable operation for signal control and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features contacts made from a special silver alloy for enhanced electrical erosion resistance, ensuring longevity and performance. This product also includes a signal lamp series suitable for electrical appliances, making it perfect for indicating, warning, and emergency signals. The LAY5-BD33 complies with GB/T14048.1 and IEC60947-5-1 standards, and all products are CE, ISO9001, ROHS, and UL certified.
Specifications
| Feature | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance: ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance: ≤25MinΩ |
| Insulation Resistance | ≥50MΩ | PF Withstand Voltage: AC 2.5KV/min |
| Contact Resistance | ≤25MinΩ | Voltage Wave: ±20% |
| Mechanical Life | 100×10000 (Pushbutton) | 50×10000 (Selector Switch) |
| Brightness | 60cd/m² | Electrical Life: 500×10000 (Pushbutton) |
| Continuous Working Life | 10x10000h | 25×10000 (Selector Switch) |
Additional Information
- Durable construction for long-lasting performance.
- Suitable for a wide range of applications including industrial and commercial settings.
- Easy installation process for user convenience.
