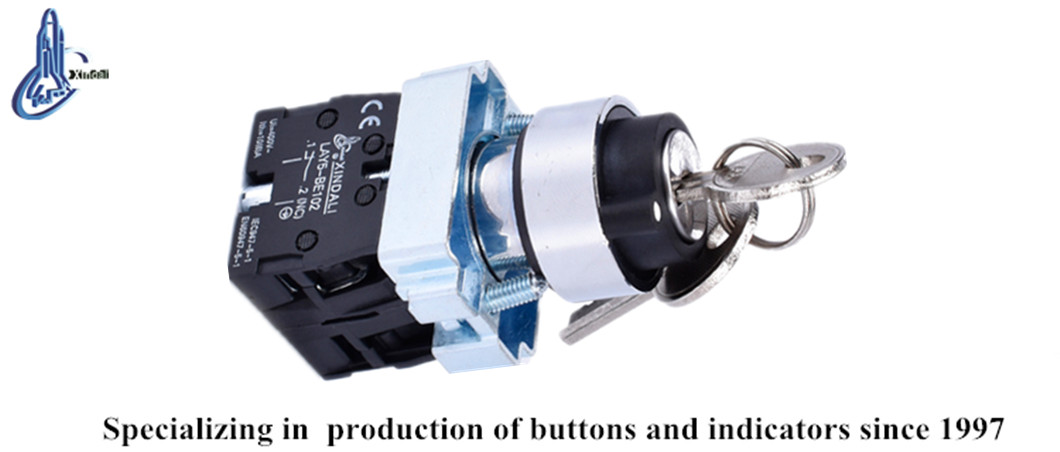

LAY5-BG33 ors electric 3 position with 2 positions elevator key switch
Inquire NowDescription

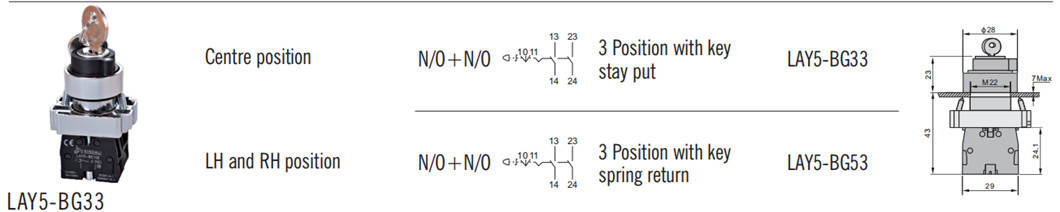

The LAY5-BG33 is an advanced electric key switch designed for control applications in various electrical circuits. It features a three-position configuration alongside a two-position elevator key switch, making it ideal for controlling AC voltage circuits up to 660V/50Hz or 60Hz, and DC voltage below 400V. This robust push button series incorporates a body made from zinc alloy and high-grade anti-flame plastic, ensuring durability and safety. The switch’s contacts utilize a special silver alloy, providing outstanding resistance to electrical erosion. Suitable for a range of applications including signal control, interlocking purposes, and indicating signals, the LAY5-BG33 is compliant with GB/T14048.1 and IEC60947-5-1 standards and carries certifications for CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Button | Signal Lamp |
|---|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) | Insulation resistance |
| Conventional heating current | 10A | Contact resistance |
| Contact resistance | ≤25MinΩ | Pf withstand voltage |
| Mechanical life | 100×10000 pushbutton |
Brightness |
| Electrical life | 500×10000 pushbutton |
Continuous working life |
| Voltage wave | ±20% | 10x10000h |
Additional Information
- Suitable for use as indicating signals, warning signals, and emergency signals.
- Compliant with international safety and quality standards.
