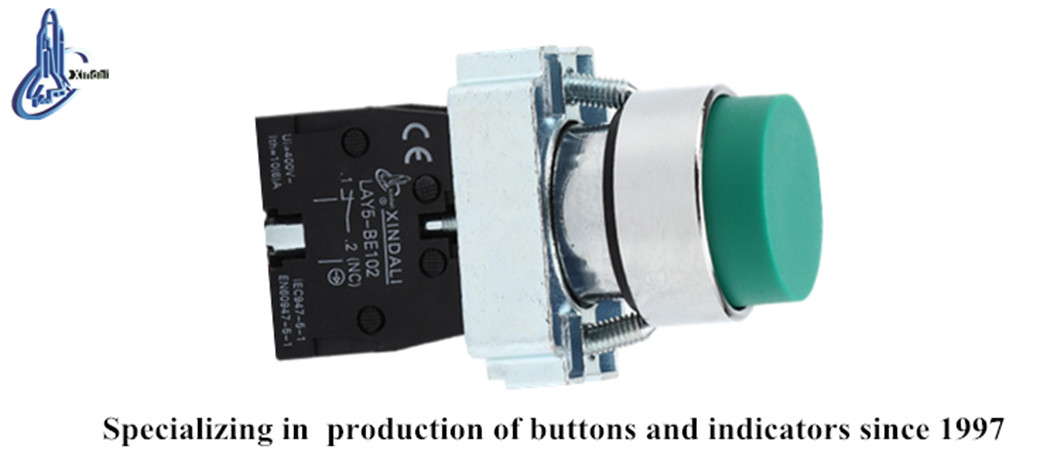

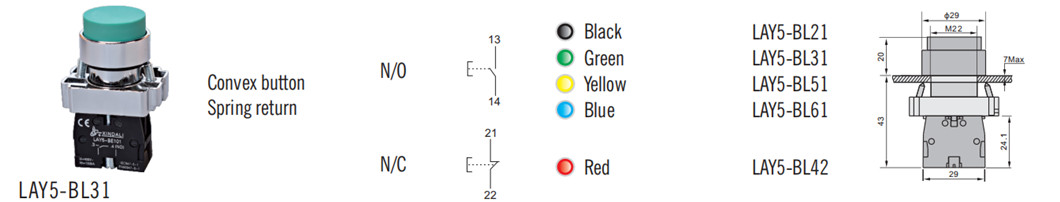

LAY5-BL31 electrical switch spring convex head latching push button switch
Inquire NowDescription
The LAY5-BL31 electrical switch features a spring convex head design, making it an ideal choice for a variety of control applications. This latching push button switch is designed to manage circuits with AC voltage up to 660V at 50Hz or 60Hz, and DC voltages below 400V. Its robust construction utilizes a zinc alloy body combined with high-grade anti-flame plastic, ensuring both durability and safety. The contacts are made from a special silver alloy, providing exceptional resistance to electrical erosion. The switch is particularly well-suited for controlling signals and interlocking purposes, as well as serving as a warning or emergency signal in electrical appliances operating at AC voltages up to 380V and DC voltages below 380V. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are CE, ISO9001, ROHS, and UL certified.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) | Insulation resistance |
| Conventional heating current | 10A | Contact resistance |
| Insulation resistance | ≥50MΩ | Pf withstand voltage |
| Contact resistance | ≤25MinΩ | Voltage wave |
| Mechanical life | 100×10000 pushbutton | 50×10000 selector switch |
| Electrical life | 500×10000 pushbutton | 25×10000 selector switch |
| Continuous working life | 10x10000h | Brightness |
Additional Information
- Ideal for controlling signal and interlocking circuits.
- Constructed from high-quality materials for enhanced durability.
- Suitable for various electrical appliances and environments.
