Description

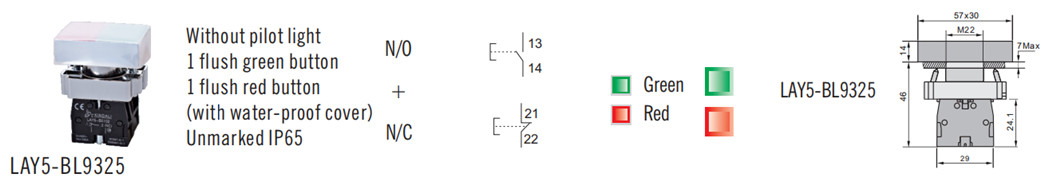

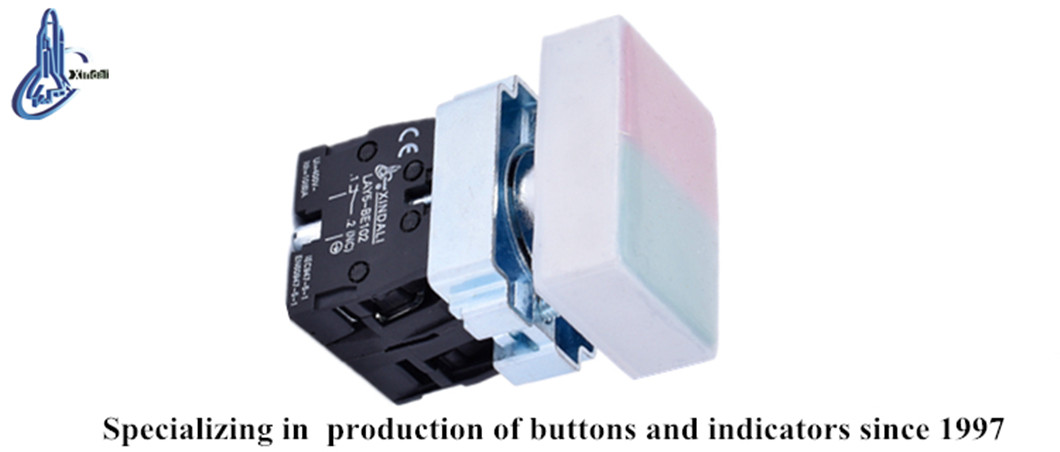

The LAY5-BL9325 rubber cap double head flush push button elevator push is a robust and versatile solution designed for controlling electrical circuits. This series of push buttons is engineered to handle AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, making it ideal for a variety of applications from signaling to interlocking purposes. The main body is crafted from durable zinc alloy and high-grade anti-flame plastic, while the contacts utilize a specialized silver alloy that ensures high resistance to electrical erosion. Complementing this is a signal lamp series that operates effectively in electrical circuits up to 380V (50Hz) and DC voltage below 380V, perfect for use as indicating, warning, or emergency signals. All products meet GB/T14048.1 and IEC60947-5-1 standards, and are CE, ISO9001, ROHS, and UL certified for reliability and safety.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance ≤25MinΩ |
| Mechanical Life | 100×10000 (pushbutton), 50×10000 (selector switch) | Brightness 60cd/m² |
| Electrical Life | 500×10000 (pushbutton), 25×10000 (selector switch) | Continuous Working Life 10x10000h |
| PF Withstand Voltage | AC 2.5KV/min | Voltage Wave ±20% |
Additional Information
- Complies with international safety and quality standards.
- Suitable for various electrical appliances and applications.
