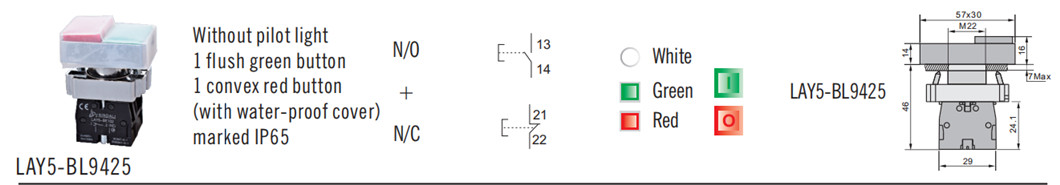

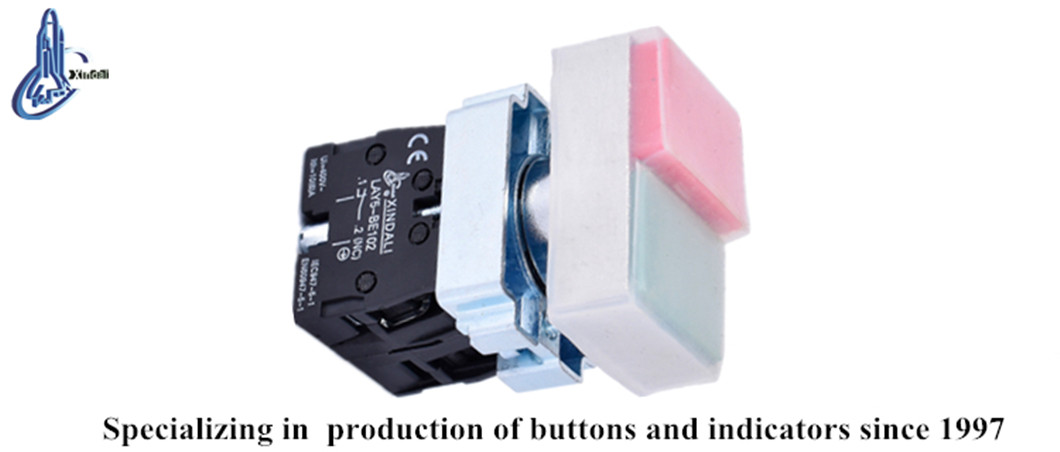

LAY5-BL9425 push button cap switch return spring double electrical switch
Inquire NowDescription
The LAY5-BL9425 Push Button Cap Switch is a robust double electrical switch designed for reliable operation in various electrical applications. Built with a durable zinc alloy body and high-grade anti-flame plastic, this switch is engineered to control circuits with AC voltage up to 660V at 50Hz or 60Hz, and DC voltage up to 400V. Ideal for signal control and interlocking purposes, its specialized silver alloy contacts ensure high resistance to electrical erosion, enhancing longevity and performance. The accompanying signal lamp series is perfect for electrical appliances operating under AC voltage up to 380V and DC voltage below 380V, effectively serving as an indication or warning signal. The product meets international safety standards, including GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Mechanical Life | 100×10000 presses | Brightness |
| Electrical Life | 500×10000 presses | Continuous Working Life |
| Insulation Resistance | ≥50MΩ | Voltage Wave |
| Contact Resistance | ≤25MinΩ | Pf Withstand Voltage |
| AC 2.5KV/min |
Additional Information
- Compliance with international safety standards and certifications: CE, ISO9001, ROHS, UL
- Suitable for a range of electrical control applications
