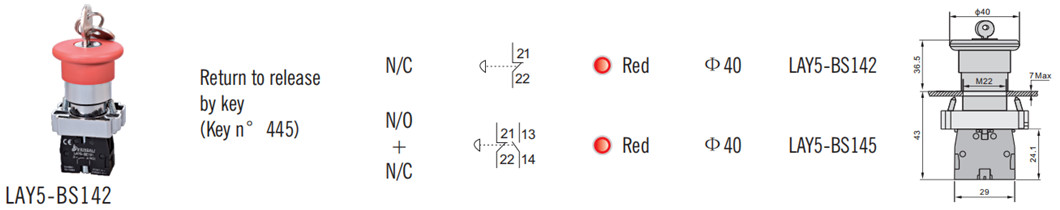

LAY5-BS142 mushroom switchlock emergency stop push button switch with key
Inquire NowDescription
The LAY5-BS142 Mushroom Switchlock Emergency Stop Push Button Switch with Key is a vital safety device designed for controlling electrical circuits in various industrial applications. This switch is capable of managing AC voltage up to 660V/AC50Hz or 60Hz, as well as DC voltage below 400V. It excels in controlling signals and interlocking mechanisms, ensuring operational safety in environments where immediate stop functions are necessary. The robust construction features a main body made from durable zinc alloy and high-grade anti-flame plastic, optimized for high-resistance against electrical erosion through its special silver alloy contacts.
This push button is not only effective for emergency stopping but also ideal for indicating, warning, and emergency signaling purposes. Compliance with international standards such as GB/T14048.1 and IEC60947-5-1, along with certifications including CE, ISO9001, ROHS, and UL, underline its reliability and safety, making it an essential component for any electrical panel.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10000 pushbutton / 50×10000 selector switch |
| Electrical Life | 500×10000 pushbutton / 25×10000 selector switch |
| Brightness | 60cd/m² |
| Continuous Working Life | 10x10000h |
| Withstand Voltage | AC 2.5KV/min |
| Voltage Wave | ±20% |
Additional Information
- Ideal for use in various industrial applications.
- Enhanced safety features with emergency stop functionality.
- Durable and long-lasting materials ensure reliable performance.
- CE, ISO9001, ROHS, and UL certified for quality assurance.
