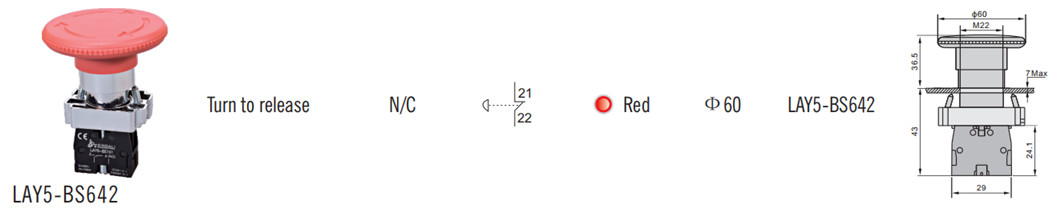

LAY5-BS642 emergency stop switch 60mm push button ce button mushroom
Inquire NowDescription
The LAY5-BS642 Emergency Stop Switch features a robust 60mm push button designed for safety and control in various electrical applications. Engineered to handle AC voltage up to 660V/50Hz or 60Hz, and DC voltage below 400V, this emergency stop switch is essential for controlling signals and interlock systems. Its main body is constructed from durable zinc alloy and high-grade anti-flame plastic, while the contacts utilize a special silver alloy for superior electrical erosion resistance. Compliant with GB/T14048.1 and IEC60947-5-1 standards, this switch is CE, ISO9001, ROHS, and UL certified, ensuring reliability and safety in critical situations.
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min | Mechanical Life | 100×10000 Pushbutton |
| Electrical Life | 500×10000 Pushbutton | Brightness | 60cd/m² |
| Continuous Working Life | 10x10000h | Voltage Wave | ±20% |
Additional Information
This emergency stop switch is ideal for various applications, including indicating, warning, and emergency signals within electrical control systems.
