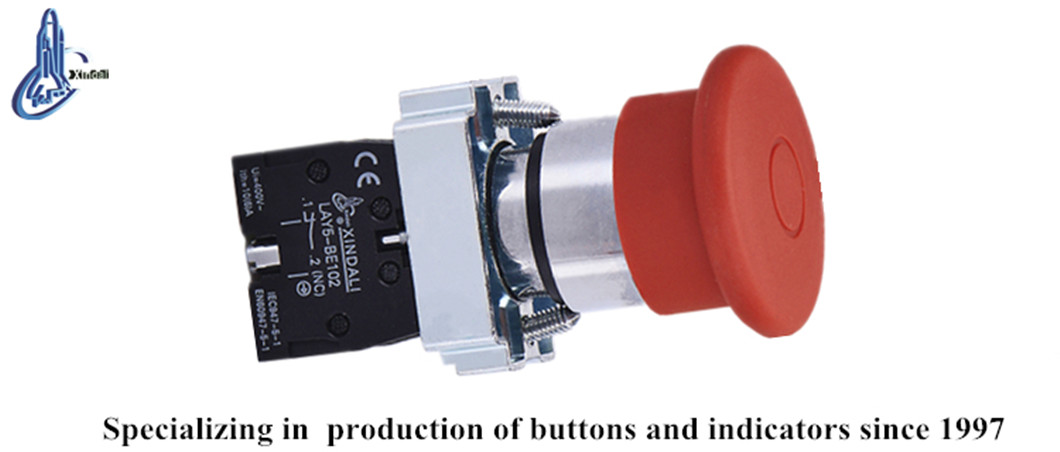

LAY5-BT42 mushroom emergency stop push and pull type push button switch
Inquire NowDescription
The LAY5-BT42 Mushroom Emergency Stop Push and Pull Type Push Button Switch is a robust and reliable safety device designed for controlling circuits in various industrial applications. It effectively manages AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V, ensuring efficient signal control and interlocking functionality. Crafted from durable zinc alloy and high-grade anti-flame plastic, this push button guarantees durability and safety. The contact features a specialized silver alloy, providing high resistance against electrical erosion. The device can be utilized as an indicating signal, warning signal, or emergency signal, making it a versatile choice for any setup.

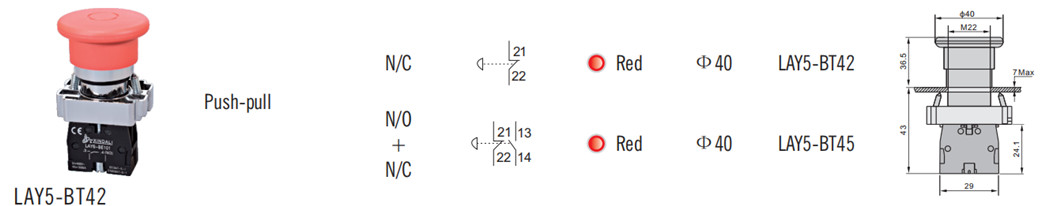

Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 (pushbutton) | Brightness |
| Electrical Life | 500×10,000 (pushbutton) | Continuous Working Life |
Additional Information
- All products comply with GB/T14048.1 and IEC60947-5-1 standards.
- CE, ISO9001, ROHS, and UL certified for safety and quality assurance.
- Ideal for use in demanding environments requiring reliable emergency stop functionality.
