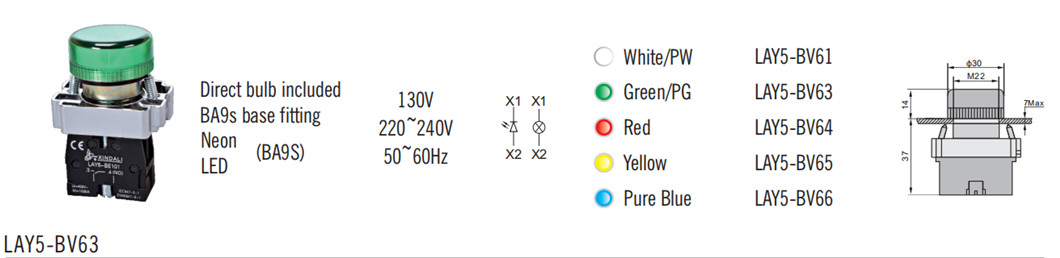

LAY5-BV63 green Noen push button light switchespush button light switch

Inquire Now

Description

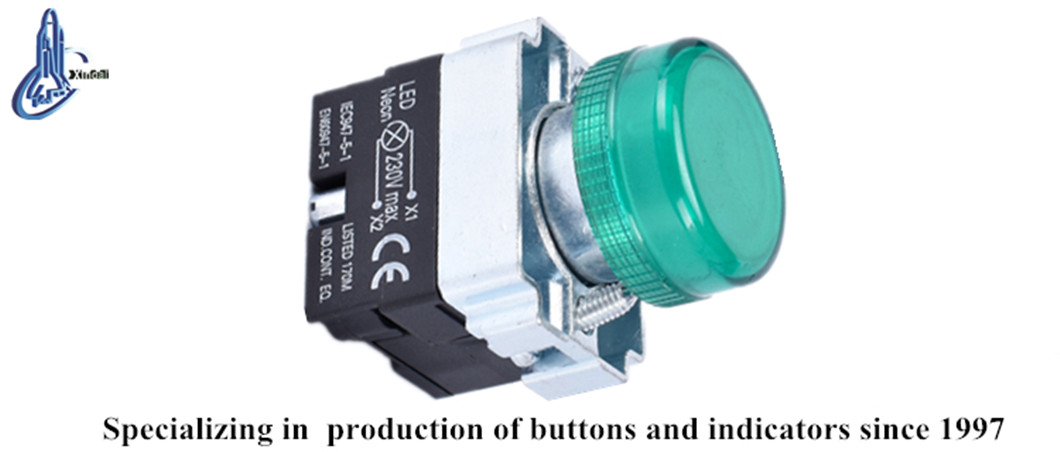

The LAY5-BV63 Green Noen Push Button Light Switch is a versatile and robust electrical component designed for controlling circuits with AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V. Ideal for a range of applications, this push button switch is perfect for controlling signals and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features special silver alloy contacts that resist electrical erosion, ensuring longevity and reliability. The accompanying signal lamp series is suitable for electrical appliance circuits of AC voltage up to 380V at 50Hz and DC voltage below 380V, making it an excellent choice for indicating signals, warning signals, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and hold certifications such as CE, ISO9001, ROHS, and UL.

Specifications

Main Technical Parameter Button Technical Parameters Signal Lamp Technical Parameters
Rated Insulation AC 600V (50Hz/60Hz) Insulation Resistance: ≥50MΩ
Conventional Heating Current 10A Contact Resistance: ≤25MinΩ
Insulation Resistance ≥50MΩ Pf Withstand Voltage: AC 2.5KV/min
Contact Resistance ≤25MinΩ Voltage Wave: ±20%
Mechanical Life 100×10000 (Pushbutton) 50×10000 (Selector Switch)
Brightness 60cd/m² Electrical Life: 500×10000 (Pushbutton)
Continuous Working Life 10x10000h 25×10000 (Selector Switch)

Additional Information

  • Compliance: GB/T14048.1 and IEC60947-5-1
  • Certifications: CE, ISO9001, ROHS, UL
