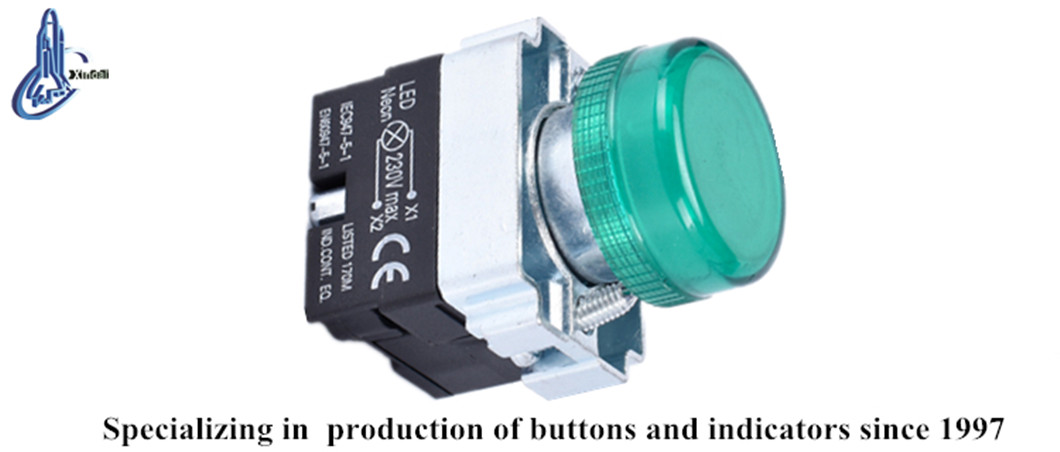

LAY5-BV63 green Noen push button light switchespush button light switch
Inquire NowDescription
The LAY5-BV63 green Noen push button light switch is a robust and versatile electrical switch designed for controlling circuits with AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V. Ideal for both signal control and interlocking applications, this switch is constructed with a durable zinc alloy body and high-grade anti-flame plastic. The contacts are made from a special silver alloy, ensuring superior resistance to electrical erosion. Suitable for use in various electrical appliances involving AC voltage up to 380V/50Hz and DC voltage below 380V, it effectively serves as an indicating, warning, or emergency signal. All components comply with industry standards, including GB/T14048.1 and IEC60947-5-1, and are certified with CE, ISO9001, ROHS, and UL, ensuring reliability and safety in performance.
Specifications
| Main Technical Parameters | |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton / 50×10000 selector switch |
| Electrical Life | 500×10000 pushbutton / 25×10000 selector switch |
| Continuous Working Life | 10x10000h |
| Brightness | 60cd/m² |
| Voltage Wave | ±20% |
Additional Information
- Complies with GB/T14048.1 and IEC60947-5-1 standards
- CE, ISO9001, ROHS, and UL certified
