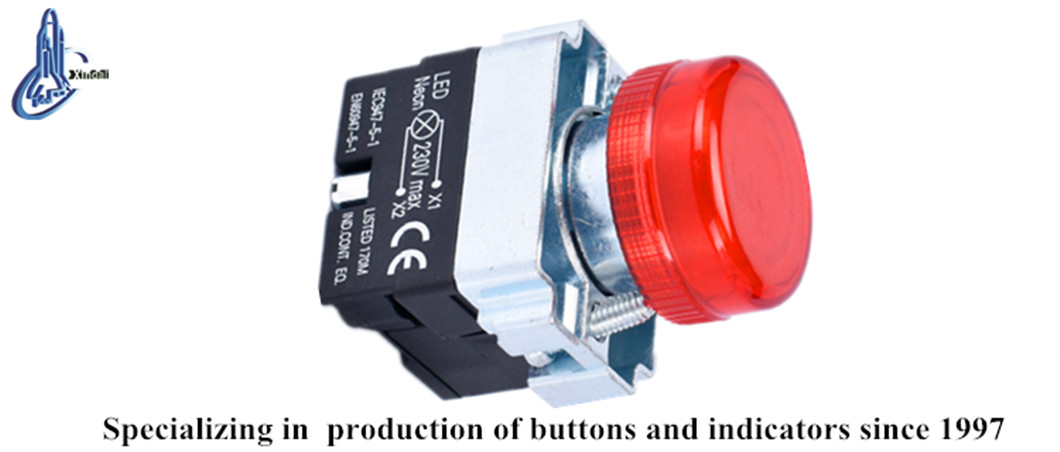

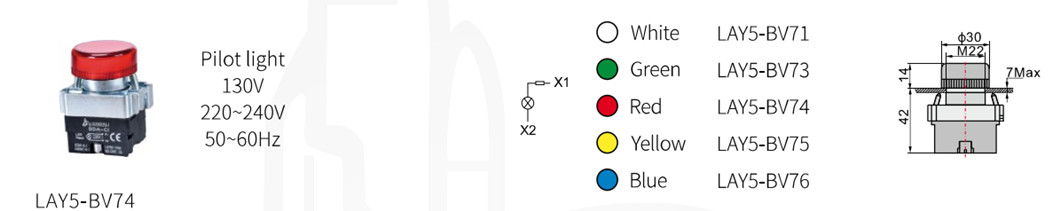

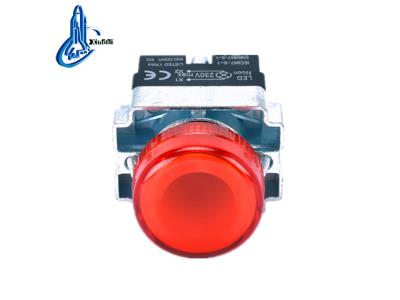

LAY5-BV74 metal led indicator lamp push button switch with pilot light
Inquire NowDescription
Introducing the LAY5-BV74 Metal LED Indicator Lamp Push Button Switch with Pilot Light, a reliable component engineered for controlling AC and DC circuits with precision. This versatile push button series is optimal for use in applications requiring circuit control for AC voltage up to 660V and DC voltage below 400V. Crafted from a durable zinc alloy and high-grade anti-flame plastic, this switch is designed to withstand electrical erosion, ensuring longevity and safety. The corresponding signal lamp is perfect for indicating signals, warning, and emergency notifications, compatible with electrical circuits of up to 380V.
All components comply with GB/T14048.1 and IEC60947-5-1 standards and are certified by CE, ISO9001, ROHS, and UL, providing peace of mind in quality and safety.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance ≥ 50MΩ |
| Conventional Heating Current | 10A | Contact Resistance ≤ 25MinΩ |
| Mechanical Life | 100×10000 pushbutton | Brightness: 60cd/m² |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life: 10x10000h |
| Contact Resistance | ≤ 25MinΩ | Voltage Wave: ±20% |
| Pf Withstand Voltage | AC 2.5KV/min |
Additional Information
- Ideal for controlling signals and interlocking purposes.
- Perfect for emergency and warning signals in various applications.
