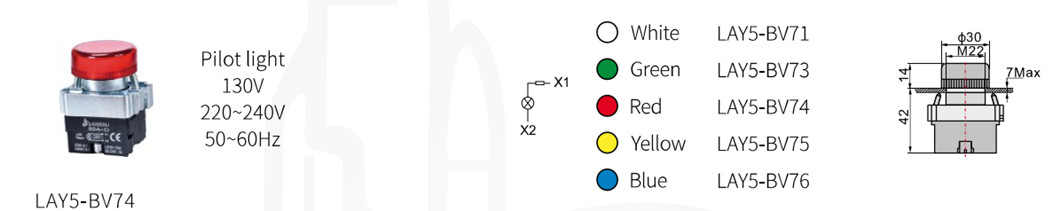

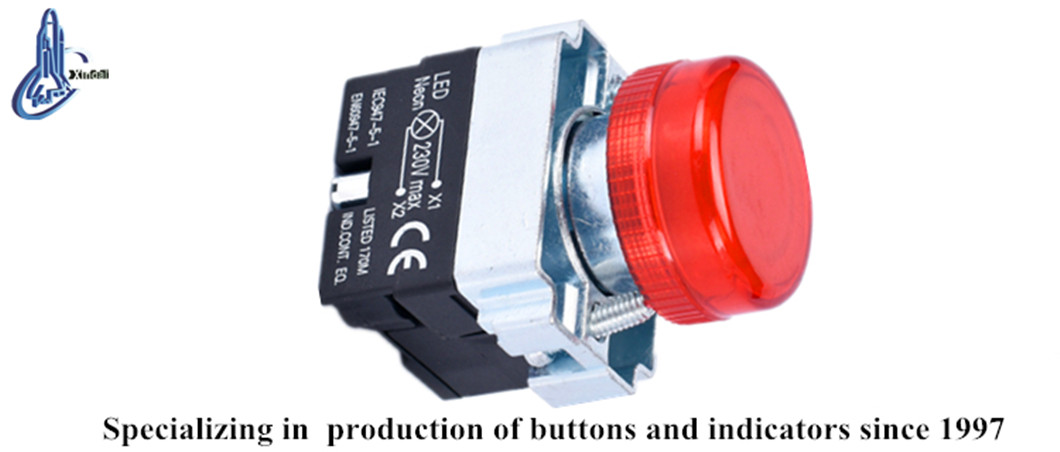

LAY5-BV74 metal led indicator lamp push button switch with pilot light
Inquire NowDescription
The LAY5-BV74 metal LED indicator lamp push button switch with pilot light is a robust and versatile device designed for efficient circuit control. Capable of managing AC voltage up to 660V and DC voltage below 400V, this switch is perfect for applications requiring reliable signaling and interlocking. Constructed from durable zinc alloy and high-grade anti-flame plastic, it is engineered to endure high electrical erosion thanks to its specialized silver alloy contacts. The integrated signal lamp operates effectively in electrical appliances with an AC voltage rating of up to 380V, making it ideal for indicating, warning, and emergency signaling applications. This product adheres to stringent safety standards including GB/T14048.1 and IEC60947-5-1, and is certified with CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Value |
|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) |
| Insulation resistance | ≥50MΩ |
| Conventional heating current | 10A |
| Contact resistance | ≤25MinΩ |
| Pf withstand voltage | AC 2.5KV/min |
| Mechanical life | 100×10000 pushbutton / 50×10000 selector switch |
| Electrical life | 500×10000 pushbutton / 25×10000 selector switch |
| Brightness | 60cd/m² |
| Continuous working life | 10x10000h |
Additional Information
- Dimensions suitable for standard electrical installations.
- Ideal for industrial and commercial applications.
- Easy installation and maintenance.
