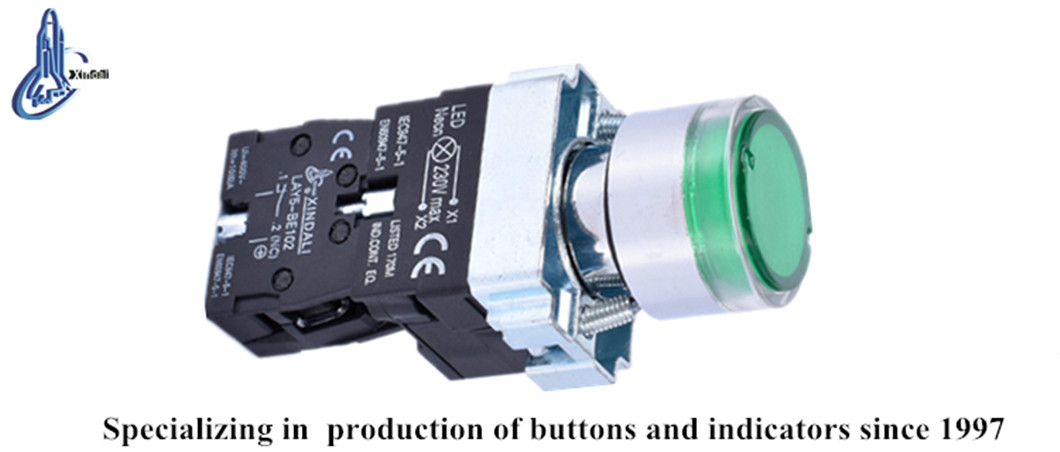

LAY5-BW3361 electric switch with led button light 12v work light push switch
Inquire NowDescription
The LAY5-BW3361 electric switch with LED button light is a versatile push switch designed for various applications. Operating at 12V, this switch is ideal for controlling circuits of AC voltage up to 660V/AC (50Hz or 60Hz) and DC voltage below 400V. It excels in controlling signals and interlocking purposes, making it suitable for both industrial and home use.
This push button switch features a robust construction with a zinc alloy body and high-grade anti-flame plastic, ensuring durability and safety. The special silver alloy contacts provide exceptional resistance to electrical erosion, enhancing the switch’s longevity. The integrated LED light serves as a clear indication signal, perfect for various applications such as emergency signals or warning alerts.
Complying with GB/T14048.1 and IEC60947-5-1 standards, the LAY5-BW3361 switch is certified with CE, IOS9001, ROHS, and UL marks, ensuring high-quality and reliable performance.
Specifications
| Feature | Push Button Parameter | Signal Lamp Parameter |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 (pushbutton) | Brightness |
| Electrical Life | 500×10000 (pushbutton) | Continuous Working Life |
Additional Information
- Ideal for controlling signals, warnings, and emergency situations.
- LED light indicator for easy visibility.
- Durable construction for long-lasting use.
