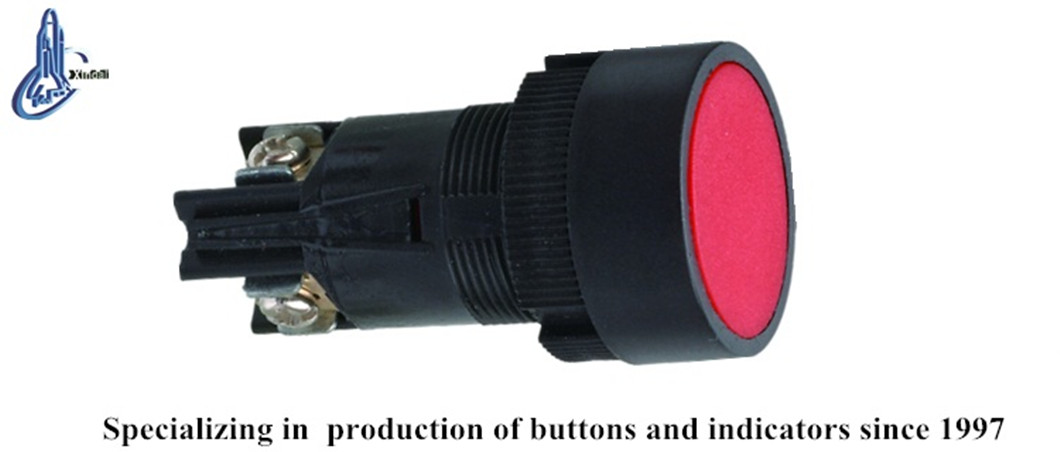

LAY5-EA145 return spring push button start stop lay5 flush push button
Inquire NowDescription

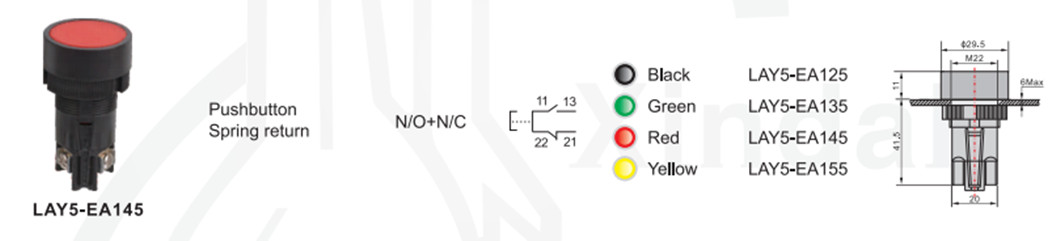

The LAY5-EA145 return spring push button is an essential component for controlling electrical circuits. Designed for both start and stop functions, this flush push button operates effectively in AC voltage environments up to 660V (50Hz or 60Hz) and DC voltages below 400V. Its robust design utilizes a zinc alloy body combined with high-grade anti-flame plastic, ensuring durability and safety. The special silver alloy contacts provide superior resistance against electrical erosion, making it an excellent choice for signal control and interlocking applications.
Moreover, the integrated signal lamp series is capable of handling electrical appliances with an AC voltage rating of up to 380V (50Hz) and DC voltage below 380V, serving as an ideal solution for indicating, warning, and emergency signals. The LAY5-EA145 product line adheres to stringent compliance standards, including GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO 9001, ROHS, and UL.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10000 pushbutton |
| Electrical Life | 500×10000 pushbutton |
| Continuous Working Life | 10x10000h |
| Brightness | 60cd/m² |
| Pf Withstand Voltage | AC 2.5KV/min |
| Voltage Wave | ±20% |
Additional Information
For optimal performance, ensure correct installation and maintenance of the LAY5-EA145 push button. Regular checks are recommended to maintain electrical integrity and safety compliance. This product is designed for extensive operational life and adheres to high safety standards, making it suitable for various industrial applications.
